DW-HF-120KW Magnetic Induction Heating Equipment for Industrial Metal Heating
Quick Answer
What is the DW-HF-120KW Magnetic Induction Heating Equipment?
The HLQ DW-HF-120KW is a high-frequency induction heating system designed for industrial metal heating, surface hardening, brazing, annealing, shrink fitting, and selected localized heat-treatment applications. The manufacturer’s published specifications include a maximum oscillating-power rating of 120kVA, a maximum input apparent-power rating of 130kVA, an operating frequency range of 30–80kHz, and a three-phase 380V, 50/60Hz electrical supply. The system uses IGBT inverter technology, a separated main power unit and extension unit, and application-specific water-cooled induction coils.
Best-Fit Applications: Gear and shaft surface hardening, induction annealing of steel tubes, industrial tool brazing, copper and brass joining, localized pipe heating, thermal shrink fitting, and production-line heating of compatible metal components.
Engineering Selection: The correct induction heating system must be selected according to workpiece material, dimensions, effective heated mass, target temperature, heating depth, required cycle time, operating frequency, coil configuration, and cooling conditions. The published 120kVA oscillating-power rating must not be interpreted as a guaranteed 120kW of useful heat absorbed by a workpiece.
Table of Contents
- What Is the DW-HF-120KW Magnetic Induction Heating Equipment?
- Key Applications
- Suitable Materials
- Working Principle
- Technical Specifications
- Recommended Model Selection
- Process Workflow
- Common Problems and Solutions
- Engineering Selection Guide
- Advantages and Limitations
- Why Choose HLQ?
- 10 Core FAQs
What Is the DW-HF-120KW Magnetic Induction Heating Equipment?
The DW-HF-120KW Magnetic Induction Heating Equipment is an industrial electromagnetic heating system that uses high-frequency alternating current to generate heat within electrically conductive metal components.
The equipment is intended for applications requiring localized or controlled heating, including surface hardening, brazing, annealing, thermal assembly, and selected manufacturing processes.
The high-frequency inverter supplies electrical energy to a resonant heating circuit connected to an induction coil. When a conductive workpiece is positioned within the coil’s alternating magnetic field, electrical currents are induced inside the material.
Electrical resistance converts these currents into heat. The resulting temperature distribution depends on the material, induction frequency, coil geometry, coupling distance, and heating duration.
Although the product name includes the word “magnetic,” the equipment can heat both ferromagnetic and nonferromagnetic conductive metals. Copper, brass, aluminum, stainless steel, and carbon steel can all be considered for induction heating when the system is correctly matched to the application.
The DW-HF-120KW uses a separated equipment arrangement. The main power cabinet can be positioned away from the immediate heating area, while the extension unit and induction coil can be incorporated into a suitable industrial workstation.
Main Components of the DW-HF-120KW System
| Component | Function | Engineering Requirement |
|---|---|---|
| Main Power Supply | Converts incoming electrical energy into controlled power for induction heating | Correct electrical supply, grounding, protection, and ventilation |
| IGBT Inverter | Generates high-frequency alternating electrical current | Compatible output rating and operating frequency |
| Resonant Matching Circuit | Matches the induction coil and electrical load to the inverter | Appropriate inductance, capacitance, and electrical operating conditions |
| Extension Unit | Provides the separated heating-head or transformer arrangement | Approved electrical connections and cooling |
| Induction Heating Coil | Generates the alternating magnetic field | Application-specific geometry, electrical matching, and cooling |
| Workpiece Fixture | Positions and supports the workpiece | Stable alignment and suitable mechanical clearance |
| Heating Controller | Controls the operating sequence and available heating parameters | Functions must be confirmed for the actual supplied controller |
| Cooling System | Removes heat from designated power components and the induction coil | Approved water flow, pressure, temperature, and water quality |
| Protection System | Responds to specified electrical and cooling faults | Verified interlocks and safe shutdown functions |

Split-Type Induction Heating Equipment
A separated induction heating system allows the main power supply and the workpiece heating station to be installed in different positions.
This can improve installation flexibility in workshops where dust, heat, vibration, or limited operating space affect equipment layout.
The permitted cable length, electrical matching, cooling circuit, and mechanical installation must be verified before changing the equipment arrangement.
| Feature | Potential Benefit | Engineering Consideration |
|---|---|---|
| Separate Main Cabinet | Allows flexible installation away from the immediate heating area | Ventilation, grounding, and electrical access |
| Extension Unit | Can be positioned near the heating station | Mechanical support and cooling connections |
| Interconnecting Cable | Allows separation between power and heating equipment | Approved length and electrical compatibility |
| Custom Induction Coil | Adapts the heating field to different components | Load matching and workpiece clearance |
| Production-Line Integration | Supports installation in suitable industrial manufacturing cells | Automation, fixtures, cooling, and safety interlocks |

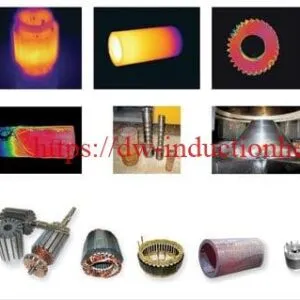

Key Applications
The DW-HF-120KW can be considered for different industrial metal-heating processes. However, the correct operating conditions must be selected for each workpiece and application.
1. Induction Surface Hardening of Gears and Shafts
Induction surface hardening uses electromagnetic induction to heat selected surface regions of suitable steels before quenching.
The objective is to produce a hardened surface layer while maintaining the required mechanical properties of the underlying material.
Depending on the workpiece geometry, the system may use an encircling coil, scanning coil, gear-profile coil, or another application-specific inductor.
The final hardness and hardened case depth depend on steel grade, heating temperature, frequency, heating duration, coil configuration, and quenching conditions.
Suitable applications may include selected gears, shafts, pins, splines, sprockets, and other wear-resistant components.
For complete equipment configurations with quenching and workpiece motion, review HLQ’s induction hardening machine solutions.
2. Industrial Brazing of Metal Components
The equipment can be evaluated for joining compatible copper, brass, steel, stainless steel, and carbide assemblies through induction brazing.
The heating system must provide the required joint temperature without intentionally melting the base metals.
Filler metal selection, surface preparation, joint clearance, flux or protective atmosphere, and controlled cooling are essential to brazing quality.
3. Induction Annealing of Steel Tubes
Induction annealing involves heating selected metal components according to a defined metallurgical thermal cycle.
For steel tubes, the induction coil should be designed according to outer diameter, wall thickness, heated length, material grade, and required temperature distribution.
The final material condition depends on heating temperature, holding time, cooling rate, and the applicable material specification.
4. Induction Heating for Thermal Shrink Fitting
Induction heating can be used to expand suitable metal components before assembly.
Typical applications include gears, bearing housings, sleeves, coupling components, and other interference-fit assemblies.
The heating temperature should be calculated from the required expansion, material thermal expansion coefficient, interference allowance, and component geometry.
5. Industrial Tool Brazing
Selected cutting tools, diamond segments, and carbide components can be joined to suitable metal bodies using qualified brazing processes.
Coil geometry and filler-metal selection are critical because the joining materials may have different electromagnetic, thermal, and mechanical properties.
6. Localized Pipe and Tube Heating
Induction heating can be used for selected pipe and tube heating operations, including local annealing, preheating, coating-related processes, and thermal assembly.
For larger pipe diameters, the suitable operating frequency and power supply configuration should be evaluated carefully.
7. Forging Preheating
Induction heating may be used to preheat metal bars or selected forging regions before hot forming.
However, the high-frequency DW-HF-120KW should not automatically be selected for large-diameter through-heating applications.
For thicker billets and deeper heating requirements, a medium-frequency system may offer a more suitable electromagnetic heating arrangement.
8. Selected Metal Melting Applications
Small or specialized metal-melting operations may be possible with an appropriate induction furnace, crucible, and matching system.
The DW-HF-120KW rating does not establish a universal metal-melting capacity.
Metal type, charge mass, melting temperature, crucible design, frequency, and thermal losses must be evaluated before selecting a melting system.
| Application | Material | Heating Objective | Primary Requirement |
|---|---|---|---|
| Gear Surface Hardening | Suitable carbon and alloy steels | Localized austenitizing before quenching | Specified hardness pattern and case depth |
| Shaft Surface Hardening | Carbon and alloy steels | Heat a defined shaft surface zone | Correct coil, motion, and quench configuration |
| Copper Tube Brazing | Copper and compatible alloys | Heat the joining region | Filler wetting and capillary flow |
| Carbide Tool Brazing | Carbide and steel | Heat the brazing interface | Thermal stress and filler compatibility |
| Steel Tube Annealing | Steel and selected alloys | Apply a specified thermal cycle | Temperature distribution and cooling conditions |
| Shrink Fitting | Steel rings, sleeves, and hubs | Produce thermal expansion | Expansion allowance and temperature limits |
| Pipe Preheating | Carbon or alloy steel | Raise the selected pipe region to process temperature | Heated width and temperature control |
| Forging Preheating | Steel, copper, and other metals | Prepare selected metal sections for forming | Frequency selection and core temperature |
Suitable Materials
Induction heating can be applied to electrically conductive materials, including ferromagnetic and nonferromagnetic metals.
The heating behavior depends on electrical resistivity, magnetic permeability, thermal conductivity, specific heat capacity, material geometry, and temperature.
| Material | Heating Characteristics | Typical Application | Engineering Consideration |
|---|---|---|---|
| Carbon Steel | Magnetic properties change as temperature increases | Hardening, preheating, and thermal assembly | Consider the Curie transition and required temperature distribution |
| Alloy Steel | Electromagnetic and metallurgical properties depend on alloy composition | Gear and shaft heat treatment | Use grade-specific process requirements |
| Stainless Steel | Magnetic behavior varies by grade | Annealing, brazing, and localized heating | Confirm the actual stainless steel grade |
| Copper | High electrical and thermal conductivity | Brazing and electrical components | Optimize coil coupling and heating cycle |
| Brass | Conductive copper-zinc alloy | Fittings and industrial joints | Control temperature and zinc-related process risks |
| Aluminum Alloys | Nonferromagnetic and highly conductive | Selected localized heating applications | Verify power transfer and alloy-specific temperature limits |
| Nickel Alloys | Properties vary significantly by composition | Specialized joining and heat treatment | Evaluate actual alloy properties |
| Carbide-Steel Assemblies | Dissimilar thermal properties | Cutting-tool brazing | Control filler-metal compatibility and thermal stresses |
Material Properties Affecting Heating Performance
| Property | Effect on Heating | Selection Requirement |
|---|---|---|
| Electrical Resistivity | Influences electrical losses generated by induced currents | Use values appropriate to the operating temperature |
| Magnetic Permeability | Influences electromagnetic current distribution | Consider magnetic transitions in ferrous materials |
| Thermal Conductivity | Influences internal temperature equalization | Evaluate surface and core temperatures |
| Specific Heat Capacity | Influences the energy required for heating | Use a suitable temperature-dependent approximation |
| Phase Transformations | May change heat demand and material properties | Consider the metallurgical process |
| Workpiece Geometry | Changes coupling and effective heated mass | Use actual dimensions and heating-zone drawings |
Working Principle
The DW-HF-120KW operates according to electromagnetic induction.
Incoming three-phase electrical power is converted by the power electronics into high-frequency alternating current.
This current flows through an induction coil, creating a changing magnetic field around the workpiece.
The magnetic field induces electrical currents inside electrically conductive materials.
The resistance of the material converts the induced currents into heat.
In suitable ferromagnetic materials, magnetic losses can also contribute to heating under certain conditions. As the material temperature increases, its magnetic and electrical properties may change significantly.
Electromagnetic Induction Heating Sequence
| Step | Component | Function |
|---|---|---|
| 1 | Three-Phase Electrical Supply | Provides electrical input power |
| 2 | IGBT Inverter | Generates controlled high-frequency alternating current |
| 3 | Resonant Matching Circuit | Matches the coil and load to the inverter |
| 4 | Water-Cooled Induction Coil | Produces the alternating magnetic field |
| 5 | Metal Workpiece | Absorbs electromagnetic energy and generates heat |
| 6 | Thermal Conduction | Redistributes heat within the material |
| 7 | Process Control | Coordinates the required heating cycle |
| 8 | Process Completion | Allows hardening, brazing, annealing, or assembly operations |
Induction Frequency and Heating Depth
The original DW-HF-120KW product page lists an induction frequency range of 30–80kHz.
Operating frequency influences the distribution of induced electrical currents within the workpiece.
Under simplified electromagnetic conditions, increasing frequency reduces the reference electrical skin depth.
The reference skin depth can be estimated using:
δ = √[ρ / (π × f × μ)]
Where:
- δ = Electrical skin depth, meters.
- ρ = Electrical resistivity, Ω·m.
- f = Operating frequency, Hz.
- μ = Absolute magnetic permeability, H/m.
Important: Electrical skin depth is not identical to final temperature penetration depth or hardened case depth. Heat conduction, heating duration, material geometry, and temperature-dependent electromagnetic properties also affect the resulting heating pattern.
Induction Coil Design
The induction coil is a critical component of the heating system.
Its geometry, number of turns, active heating length, and coupling distance influence electromagnetic heating efficiency and temperature distribution.
Different applications require different coil designs. A coil optimized for shaft hardening may not be suitable for copper brazing or tube annealing.
| Application | Coil Concept | Primary Design Objective |
|---|---|---|
| Gear Hardening | Profile, encircling, or scanning coil | Required tooth or surface heating pattern |
| Shaft Hardening | Encircling or scanning coil | Controlled surface temperature and hardened length |
| Steel Tube Annealing | Helical or split coil | Temperature distribution around the tube |
| Carbide Tool Brazing | Pancake or special-profile coil | Controlled heating of the joining interface |
| Copper Tube Brazing | Helical or U-shaped coil | Joint heating and filler-metal flow |
| Shrink Fitting | Encircling or custom-profile coil | Controlled thermal expansion |
| Pipe Preheating | Split or custom heating coil | Controlled circumferential heating zone |
For detailed electrical and mechanical inductor selection, see HLQ’s custom induction heating coil design guide.
Technical Specifications
The following specifications preserve the values published on the original HLQ product page.
Parameters requiring additional verification are clearly identified.
DW-HF-120KW Published Technical Specifications
| Parameter | Published Specification | Engineering Notes |
|---|---|---|
| Model | DW-HF-120KW | Manufacturer-published designation |
| Equipment Category | High Frequency Induction Heating Equipment | Industrial localized metal heating |
| Input Voltage | 3 × 380V AC | Confirm permissible voltage tolerance |
| Input Frequency | 50/60Hz | Utility supply frequency |
| Maximum Oscillating Power | 120kVA | Published apparent-power rating |
| Maximum Input Apparent Power | 130kVA | Not the same as 130kW active power |
| Operating Frequency | 30–80kHz | Actual loaded frequency depends on electrical matching |
| Oscillating Current | 30–200A | Another HLQ same-model page states 30–160A |
| Duty Cycle | 100% at 30°C | Published claim requiring operating-condition verification |
| Cooling Water Flow | At least 6L/min | Confirm minimum flow and circuit coverage |
| Cooling Water Pressure | 0.3MPa reference | Confirm maximum or nominal pressure definition |
| Weight | 135kg | Confirm whether complete-system net weight |
| Main Unit Dimensions | 650 × 350 × 560mm | Manufacturer-published dimensions |
| Extension Unit Dimensions | 700 × 350 × 460mm | Manufacturer-published dimensions |
| Interconnecting Cable | 2m | Changes require electrical approval |
| Power Semiconductor | IGBT | Verify actual supplied inverter version |
| Heating Control | Constant-current or constant-power functions described | Confirm available control modes |
| Timer Function | Available in timer-equipped configurations | Confirm standard or optional scope |
Specification Differences Requiring Confirmation
| Parameter | Published Information | Required Verification |
|---|---|---|
| Oscillation Current | 30–200A on this page; 30–160A on another HLQ product page | Measurement point, equipment variant, and rated conditions |
| Maximum Power | 120kVA oscillating-power rating | Actual output active-power definition |
| Input Power | 130kVA maximum input apparent power | Actual input current, power factor, and active power |
| Duty Cycle | 100% at 30°C | Load, coolant conditions, and continuous operation test |
| Cooling Water | ≥6L/min and 0.3MPa reference | Per-branch flow, permitted pressure, and inlet temperature |
| Output Frequency | 30–80kHz | Actual loaded operating range |
| Automatic Operation | General control functions described | Actual PLC, timer, and temperature-monitoring configuration |
Understanding the 120kVA and 130kVA Ratings
The product name contains “120KW,” but the original manufacturer’s specification lists 120kVA as maximum oscillating power.
Apparent electrical power, active electrical power, inverter output power, and useful workpiece heating power are different quantities.
| Parameter | Meaning | Verification |
|---|---|---|
| Input Apparent Power | Electrical apparent power drawn from the supply | Published maximum: 130kVA |
| Input Active Power | Actual electrical power consumed | Requires measured input kW |
| Oscillating Power | Manufacturer-defined heating-circuit apparent rating | Published maximum: 120kVA |
| Useful Thermal Power | Heat absorbed by the workpiece per unit time | Requires an application-specific heating test |
| Power Factor | Relationship between input active and apparent power | Requires supply-side measurement |
Three-Phase Electrical Current Calculation
For a balanced three-phase electrical system:
S = √3 × Vline × Iline
Where S is apparent electrical power, Vline is line-to-line voltage, and Iline is line current.
Using a theoretical input apparent power of 130kVA at 380V:
Iline = 130,000 / (√3 × 380) ≈ 197.5A
This is a reference electrical calculation, not a verified DW-HF-120KW input-current measurement. Actual electrical installation must follow the manufacturer’s confirmed specifications and applicable regulations.
Cooling System Requirements
The DW-HF-120KW is a water-cooled industrial induction heating system.
The cooling circuit must remove waste heat generated in the coil and designated power components.
The published flow of at least 6L/min must be verified before selecting a cooling unit, particularly for continuous industrial operation.
| Parameter | Published or Required Information | Engineering Consideration |
|---|---|---|
| Cooling Medium | Water | Confirm approved water quality |
| Published Minimum Flow | ≥6L/min | Confirm whether total flow or individual circuit flow |
| Published Pressure Reference | 0.3MPa | Confirm permitted operating pressure |
| Inlet Water Temperature | Not fully specified | Obtain approved limits |
| Cooling Water Quality | Not fully specified | Confirm hardness, conductivity, filtration, and corrosion requirements |
| Cooling Water Connections | Model-specific | Confirm hose and fitting dimensions |
| Cooling Protection | Water-failure protection described | Verify actual protection functions |
| Total Heat Rejection | Application-dependent | Size the cooling unit using verified losses |
Illustrative Cooling Water Heat Removal
The theoretical heat removed by a cooling-water circuit can be estimated using:
P = mflow × Cp × ΔT
For an illustrative water flow of 6L/min and a temperature increase of 8°C, the calculated heat removal is approximately 3.34kW.
This is an engineering calculation, not a measured cooling load for the DW-HF-120KW.
It must not be used as the only basis for selecting a cooling system.
Recommended Model Selection
Industrial induction heating equipment should be selected according to the workpiece and required thermal process rather than rated power alone.
Operating frequency, heated mass, coil geometry, target temperature, production rate, and cooling requirements must be evaluated together.
Application-Based Model Selection
| Application | Power Class to Evaluate | Frequency Consideration | Engineering Requirement |
|---|---|---|---|
| Small Copper Tube Brazing | Lower-power HF equipment | Joint-specific | Confirm joint mass and filler metal |
| Medium Industrial Brazing | DW-HF-35 / DW-HF-45 / DW-HF-60 candidates | Application-dependent | Verify heating time and coil coupling |
| Gear Surface Hardening | DW-HF-90 / DW-HF-120 candidates | Selected for hardening pattern and case depth | Verify steel grade and quench system |
| Shaft Surface Hardening | DW-HF-90 / DW-HF-120 candidates | Matched to shaft geometry | Confirm surface and core temperature requirements |
| Steel Tube Annealing | DW-HF-120 or project-specific system | Depends on wall thickness and heating depth | Validate temperature distribution |
| Shrink Fitting | Selected from calculated heat demand | Application-specific | Verify expansion and allowable temperature |
| Large Steel Billet Through-Heating | Evaluate medium-frequency equipment | Potentially lower than the DW-HF-120 operating range | Prioritize core temperature and thermal uniformity |
| Large Metal Melting | Dedicated induction melting furnace | Selected from metal and furnace design | Do not infer melting capacity from the HF generator rating |
Selection Qualification: The equipment classes above are preliminary screening recommendations. They are not guaranteed workpiece-size, heating-time, or production-capacity ratings.
High Frequency vs. Medium Frequency Induction Heating
| Selection Factor | High Frequency | Medium Frequency |
|---|---|---|
| Current Distribution | Greater surface concentration under comparable material conditions | Greater reference electromagnetic penetration depth |
| Typical Application | Localized heating, surface hardening, selected brazing | Larger-section heating, billets, and selected melting applications |
| Workpiece Selection | Must match heated area and cycle time | Must match larger-section thermal requirements |
| Core Temperature | Requires sufficient thermal conduction time | Still requires thermal-cycle validation |
| Coil Design | Application-specific | Application-specific |
| Final Selection | Based on complete heating requirements | Based on complete heating requirements |
For metal billets and bars requiring a different heating-depth arrangement, compare HLQ’s induction forging bar and billet furnace equipment.
Process Workflow
The industrial induction heating process requires material preparation, workpiece positioning, power supply inspection, cooling verification, controlled heating, and application-specific quality inspection.
General Induction Heating Process
| Step | Operation | Engineering Objective |
|---|---|---|
| 1 | Material Identification | Confirm material grade and dimensions |
| 2 | Process Definition | Specify the required thermal result |
| 3 | Induction Coil Selection | Match the coil to the workpiece and generator |
| 4 | Cooling System Inspection | Verify approved water-flow and temperature conditions |
| 5 | Electrical Inspection | Verify supply, connections, grounding, and protection |
| 6 | Workpiece Positioning | Maintain the required heating geometry |
| 7 | Induction Heating | Apply the specified power and heating cycle |
| 8 | Temperature Verification | Measure the required process temperature |
| 9 | Process Completion | Perform quenching, brazing, annealing, or assembly as required |
| 10 | Quality Inspection | Verify the relevant acceptance criteria |
Induction Surface Hardening Workflow
For induction hardening, suitable steel components are heated to the required austenitizing condition and then quenched according to the approved metallurgical process.
The process must control the heated zone, temperature, heating duration, quench delay, quench medium, and cooling uniformity.
| Parameter | Purpose | Quality Requirement |
|---|---|---|
| Material Grade | Determine achievable hardening response | Approved steel composition and condition |
| Heating Temperature | Produce the required austenitized region | Grade-specific temperature |
| Heating Time | Control thermal penetration | Suitable surface and core temperature relationship |
| Coil Position | Control the heating pattern | Repeatable alignment |
| Quench Delay | Coordinate heating and cooling | Approved process timing |
| Quench Medium | Provide the required cooling conditions | Appropriate concentration, temperature, and flow |
| Hardness Inspection | Verify the final mechanical result | Specified hardness and case depth |
Steel Tube Induction Annealing
For tube annealing or localized heating, the induction coil and fixture should provide an appropriate temperature distribution over the required region.
Tube diameter, wall thickness, material grade, heating duration, and cooling conditions determine the actual process.

Production Control and Automation
Induction heating can be incorporated into manual, semi-automatic, or fully automated industrial production systems.
Depending on the application, the overall production line may require a PLC, temperature measurement, workpiece positioning, conveyor movement, scanning mechanisms, or a quenching station.
The exact controller, communication interface, and automation functions must be confirmed for the supplied equipment.
| Function | Purpose | Configuration Status |
|---|---|---|
| Power Control | Adjust the heating load | Confirm the supplied control modes |
| Heating Timer | Define repeatable heating cycles | Confirm timer-equipped configuration |
| Temperature Monitoring | Measure the workpiece temperature | Confirm external or integrated sensor |
| Workpiece Positioning | Maintain repeatable electromagnetic coupling | Application-specific fixture |
| Scanning Motion | Move the coil or workpiece during heating | Requires suitable motion equipment |
| Quenching | Provide controlled cooling after hardening | Requires application-specific quench equipment |
| PLC Integration | Coordinate industrial production operations | Confirm interface and control scope |
| Safety Interlocks | Prevent unsafe operating conditions | Must be validated for the complete installation |
Common Problems and Solutions
Industrial induction heating problems may result from electrical matching, coil geometry, material variation, inadequate cooling, inaccurate positioning, or incorrect heating parameters.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Slow Heating | Poor coil coupling, insufficient useful power, or excessive heated mass | Verify loaded power, coil design, and heating cycle |
| Uneven Heating | Incorrect coil geometry or workpiece positioning | Review field distribution and fixture alignment |
| Surface Overheating | Excessive local power density or insufficient thermal equalization time | Review heating power, frequency, and duration |
| Insufficient Core Temperature | Inadequate heating duration or unsuitable frequency | Validate cross-sectional temperature and consider alternative frequency selection |
| Insufficient Hardened Case Depth | Unsuitable heating pattern, temperature, or quench conditions | Review the complete hardening process |
| Hardening Cracks | Excessive thermal gradients or unsuitable quench severity | Review steel grade, heating, and quench conditions |
| Inconsistent Hardness | Variable temperature or quench conditions | Improve process repeatability and verify material condition |
| Poor Brazing Filler Flow | Unsuitable filler, contamination, or inadequate joint temperature | Verify filler compatibility and surface preparation |
| Cooling Water Alarm | Insufficient flow, blockage, or excessive temperature | Stop heating and inspect the cooling circuit |
| Overcurrent Protection | Electrical mismatch or equipment fault | Isolate equipment and arrange qualified electrical inspection |
| Unstable Frequency | Load variation or resonant matching issue | Verify coil and matching-network compatibility |
| Coil Overheating | Insufficient cooling or excessive electrical losses | Check coolant flow and coil operating conditions |
| Excessive Oxidation | Overheating or prolonged exposure at high temperature | Optimize the heating cycle and process environment |
| Frequent Shutdown | Electrical, cooling, or control fault | Record fault information and investigate safely |
Engineering Selection Guide
Correct equipment selection requires evaluation of the complete heating process, including material, geometry, temperature, heating time, production capacity, electrical supply, and cooling conditions.
Step 1: Identify the Material
Specify the exact material grade and its relevant electromagnetic and thermal characteristics.
Step 2: Confirm Workpiece Dimensions
Determine the workpiece diameter, length, wall thickness, total weight, and effective heated region.
Step 3: Define the Heating Objective
Specify whether the process requires surface hardening, brazing, annealing, thermal assembly, or through-heating.
Different thermal objectives may require different coil designs and operating frequencies.
Step 4: Establish the Target Temperature
Determine the required process temperature according to the material and application.
For hardening, the target temperature must be selected according to the steel grade and metallurgical requirements.
Step 5: Calculate the Effective Heated Mass
For a solid cylindrical workpiece:
m = ρ × π × d² × L / 4
Where:
- m = Effective heated mass, kg.
- ρ = Material density, kg/m³.
- d = Workpiece diameter, m.
- L = Heated length, m.
Step 6: Estimate the Required Heating Energy
For a simplified sensible-heating calculation:
Q = m × Cp × ΔT
Where:
- Q = Theoretical thermal energy, kJ.
- m = Effective heated mass, kg.
- Cp = Approximate mean specific heat capacity, kJ/kg·K.
- ΔT = Temperature increase, K.
Engineering Calculation Example: Steel Component Heating
Consider an illustrative AISI 1045 steel cylinder with a diameter of 60mm and a heated length of 90mm.
Assume the metal is heated from 25°C to 850°C.
For preliminary calculations, use an approximate steel density of 7850kg/m³ and a mean specific heat capacity of 0.62kJ/kg·K.
| Parameter | Value | Data Status |
|---|---|---|
| Material | AISI 1045 Steel | Illustrative example |
| Workpiece Diameter | 60mm | Assumed |
| Heated Length | 90mm | Assumed |
| Density | 7850kg/m³ | Approximate reference |
| Effective Heated Mass | Approximately 1.998kg | Calculated |
| Initial Temperature | 25°C | Assumed |
| Target Temperature | 850°C | Assumed |
| Temperature Increase | 825K | Calculated |
| Mean Specific Heat | 0.62kJ/kg·K | Approximate assumption |
| Theoretical Heating Energy | Approximately 1022kJ | Calculated |
| Equivalent Thermal Energy | Approximately 0.284kWh | Calculated |
The theoretical sensible-heating energy is approximately 1022kJ.
If the target heating time is 25 seconds, the average useful thermal power is approximately 40.9kW.
For illustration only, assuming an overall electrical-to-workpiece efficiency of 50%, the average electrical input would be approximately 81.7kW.
Important: These values are theoretical engineering estimates, not verified DW-HF-120KW performance. Actual power requirements depend on temperature-dependent material properties, metallurgical transformations, heat losses, electromagnetic coupling, and operating conditions.
Step 7: Evaluate Heating Time and Power
| Heating Time | Useful Thermal Power | Illustrative Electrical Input at 50% Efficiency |
|---|---|---|
| 15 seconds | 68.1kW | 136.2kW |
| 20 seconds | 51.1kW | 102.2kW |
| 25 seconds | 40.9kW | 81.7kW |
| 30 seconds | 34.1kW | 68.1kW |
| 40 seconds | 25.5kW | 51.1kW |
| 60 seconds | 17.0kW | 34.1kW |
The calculated input power cannot be compared directly with the published 120kVA oscillating rating without establishing the actual power-rating definition and electrical operating conditions.
Step 8: Determine Production Capacity
Production capacity depends on workpiece mass, heating energy, the required number of pieces per hour, and practical loading and handling time.
For the hypothetical 1.998kg steel component described above:
| Production Rate | Effective Heated Mass | Average Useful Thermal Power | Electrical Input at Assumed 50% Efficiency |
|---|---|---|---|
| 20 pieces/hour | 40.0kg/hour | 5.7kW | 11.4kW |
| 40 pieces/hour | 79.9kg/hour | 11.4kW | 22.7kW |
| 60 pieces/hour | 119.9kg/hour | 17.0kW | 34.1kW |
| 80 pieces/hour | 159.8kg/hour | 22.7kW | 45.4kW |
| 100 pieces/hour | 199.8kg/hour | 28.4kW | 56.8kW |
| 120 pieces/hour | 239.7kg/hour | 34.1kW | 68.1kW |
Engineering Qualification: These figures are average energy-throughput estimates only. They are not guaranteed production rates or measured input power values for the DW-HF-120KW.
Step 9: Select the Induction Frequency
The operating frequency should be selected according to the material, workpiece dimensions, heating depth, and required thermal cycle.
For deep through-heating of larger sections, evaluate whether a medium-frequency system would be more appropriate.
Step 10: Design the Induction Coil
Select the coil geometry, active heating length, number of turns, mechanical clearance, and cooling arrangement.
Verify the coil’s electrical compatibility with the generator and resonant matching system.
Step 11: Confirm Electrical and Cooling Requirements
Verify the three-phase electrical supply, full-load input current, power factor, cooling-water flow, inlet pressure, temperature limits, and water quality requirements.
Step 12: Conduct Application Testing
For production applications, representative testing should verify heating time, temperature distribution, electrical operating conditions, cooling performance, and the required process result.
Application Engineering Scenario
The following scenario illustrates how a potential industrial hardening application should be evaluated.
A manufacturer requires localized induction heating of AISI 1045 steel components before quenching. The effective heated section is approximately 2kg, and the process requires controlled heating to the specified austenitizing temperature.
The engineering assessment should include the required heated length, allowable temperature gradients, target hardening pattern, quench medium, and production rate.
The DW-HF-120KW may be evaluated as an equipment candidate, but actual performance must be confirmed by application testing.
| Parameter | Engineering Scenario | Status |
|---|---|---|
| Application | Localized Steel Heating Before Hardening | Illustrative |
| Material | AISI 1045 Steel | Assumed |
| Effective Heated Mass | Approximately 2kg | Calculated example |
| Target Temperature | 850°C | Illustrative process value |
| Required Cycle | Application-dependent | Requires testing |
| Induction Coil | Application-specific | Requires design |
| Quenching | Suitable process-specific system | Requires validation |
| Final Hardness | Not established | Requires metallurgical testing |
| Equipment Performance | Not measured for this scenario | Application test required |
This is an engineering calculation and selection scenario, not a documented DW-HF-120KW customer acceptance test.
Recommended Factory Acceptance Tests
| Test Item | Verification Method | Acceptance Basis |
|---|---|---|
| Electrical Supply | Measure line voltage and frequency | Approved input range |
| Input Power | Measure active power, apparent power, current, and power factor | Verified machine ratings |
| Oscillation Frequency | Record loaded operating frequency | Approved frequency range |
| Heating Time | Measure representative heating cycles | Agreed process cycle |
| Workpiece Temperature | Use an appropriate calibrated measurement method | Specified temperature range |
| Temperature Uniformity | Measure relevant surface or cross-sectional temperatures | Agreed process tolerance |
| Coil Compatibility | Verify stable electrical operation and mechanical clearance | Approved coil and load |
| Cooling Water Flow | Measure actual cooling flow | Manufacturer-approved minimum |
| Cooling Water Pressure | Measure operating pressure | Approved pressure range |
| Protection Functions | Test specified alarms and interlocks | Safe fault response |
| Hardening Quality | Hardness and case-depth inspection where applicable | Specified metallurgical acceptance |
| Production Capacity | Measure accepted pieces over a defined operating period | Agreed production rate |
Advantages and Limitations
Advantages of DW-HF-120KW Magnetic Induction Heating Equipment
| Advantage | Engineering Benefit |
|---|---|
| Localized Heating | Allows heat to be concentrated in the selected workpiece region |
| High-Frequency Operation | Supports selected surface-heating and localized applications |
| Adjustable Heating Control | Allows process parameters to be adapted to suitable loads |
| Split-Type Construction | Provides flexibility in equipment positioning |
| Custom Induction Coils | Supports different workpiece geometries |
| No Direct Burner Flame | Does not require direct combustion at the heating station |
| Production Integration | Can be combined with suitable automation and fixtures |
| Process Repeatability | Supports consistent heating when operating conditions are controlled |
| Multiple Industrial Applications | Can be considered for hardening, brazing, annealing, and thermal assembly |
Limitations and Engineering Considerations
| Limitation | Engineering Consideration |
|---|---|
| Frequency Selection | 30–80kHz may not be ideal for large-section through-heating |
| Power Rating Interpretation | 120kVA is not guaranteed 120kW useful heating power |
| Workpiece-Specific Coil | Different applications may require dedicated coils |
| Electrical Supply | Requires a suitable three-phase industrial installation |
| Cooling Requirements | Requires verified water circulation and thermal protection |
| Continuous Operation | Published duty claims require defined operating conditions |
| Heating Depth | Depends on frequency, material, time, and thermal conduction |
| Hardening Performance | Final hardness and case depth require metallurgical validation |
| Melting Applications | No universal melting capacity is established |
| Application Testing | Critical production operations require representative tests |
Why Choose HLQ?
HLQ Induction Equipment Co., Ltd. provides industrial induction heating equipment for brazing, hardening, annealing, forging, melting, and other metalworking applications.
The DW-HF-120KW belongs to the HLQ high-frequency induction heating equipment range.
Application-Based Equipment Selection
Equipment selection can be evaluated according to workpiece dimensions, material properties, heating temperature, required cycle time, production capacity, and available factory utilities.
IGBT High-Frequency Inverter Technology
The original product page describes IGBT inverter technology with high-frequency operation.
The actual electrical configuration should be confirmed for the delivered equipment.
Custom Induction Coil Solutions
Application-specific coil design can help adapt the heating field to the required workpiece geometry and heating zone.
Coil selection should consider electrical matching, mechanical clearance, cooling, and temperature distribution.
Industrial Process Integration
Induction heating equipment can be incorporated into suitable production systems involving fixtures, conveyors, scanning mechanisms, quenching stations, and temperature monitoring.
The actual integration scope should be defined for each manufacturing process.
Engineering Process Verification
Representative heating tests can be used to verify the required heating cycle, temperature distribution, electrical performance, and process quality.

For technical comparison across frequency and power classes, explore the HLQ induction heating power supply range.
10 Core FAQs
1. What is the DW-HF-120KW magnetic induction heating equipment?
The DW-HF-120KW is a high-frequency industrial induction heating system intended for localized heating of electrically conductive metal components. Potential applications include surface hardening, brazing, annealing, thermal assembly, and selected industrial preheating processes.
2. What is the rated power of the DW-HF-120KW?
The original manufacturer specification lists a maximum oscillating-power rating of 120kVA and a maximum input apparent-power rating of 130kVA. These values should not be interpreted as guaranteed useful workpiece heating power.
3. What electrical supply does the equipment require?
The published electrical input is three-phase 380V, 50/60Hz. Actual input current, power factor, voltage tolerance, and electrical protection requirements must be verified for the supplied configuration.
4. What is the operating frequency of the DW-HF-120KW?
The original product page lists 30–80kHz. Actual loaded frequency depends on the induction coil, electrical matching, and workpiece characteristics.
5. Can the DW-HF-120KW harden steel gears and shafts?
It can be evaluated for surface hardening of suitable steel components when combined with an appropriate induction coil, quenching system, and validated heat-treatment procedure. Final hardness and case depth depend on the material and complete process.
6. Can it heat copper, brass, and stainless steel?
Yes. Induction heating can heat electrically conductive nonferromagnetic and ferromagnetic materials. However, power transfer, heating time, and coil design depend on the actual material properties and workpiece geometry.
7. Can the DW-HF-120KW be used for large steel billet forging?
Not automatically. Large billet through-heating may require a lower operating frequency and different induction coil arrangement. Medium-frequency equipment should be considered when deep and relatively uniform heating is required.
8. How much cooling water does the equipment require?
The original product page lists at least 6L/min and a 0.3MPa pressure reference. The required total system flow, allowable pressure, cooling-water temperature, and cooling capacity must be confirmed before installation.
9. Can the equipment operate continuously?
The manufacturer publishes a 100% duty-cycle claim at an ambient temperature of 30°C. Actual continuous-duty capability depends on the applied load, cooling conditions, and equipment configuration and must be verified under defined operating conditions.
10. How do I select the correct induction heating system?
Selection should begin with material grade, workpiece dimensions, effective heated mass, target temperature, heating depth, required cycle time, production rate, electrical supply, and cooling conditions. Engineering calculations and representative application tests should be used to verify the final equipment and coil configuration.
HLQ-DW-HF-120-magnetic-induction-heating-equipment-brochure
