Handheld Induction Heater
Category: Handheld Induction Heater Tags: handheld annealing heater, handheld billets heater, handheld brazing heater, handheld forging heater, handheld induction brazing heater, handheld induction heater, handheld induction heating system, handheld induction system, handheld melting furnace, handheld welding heater
Description

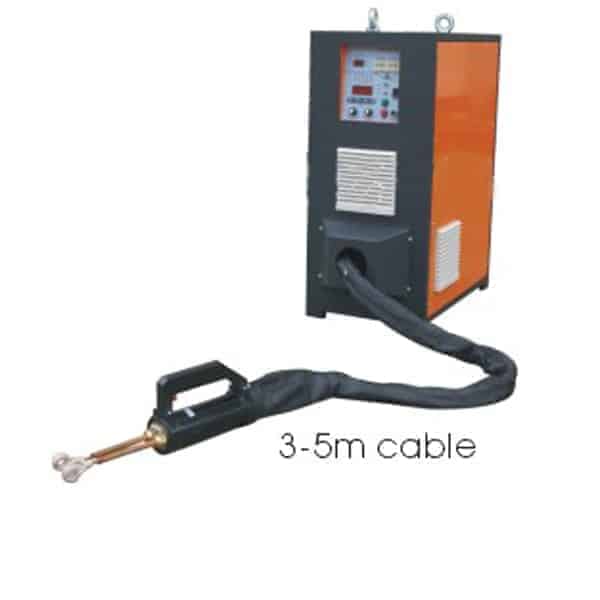

Handheld Induction Heater&Portable Induction Heater
Items | DWS-10 | DWS-30 | DWS-60 | DWS-100 | |
Max. input power | 10KW | 30KW | 60KW | 100KW | |
Input voltage | 3PĆ380Vļ¼50 or 60HZ | ||||
Generator size | L50ĆW30ĆH45 | 57LĆ32WĆ71H | 70LĆ40WĆ103.5H | 56LĆ80WĆ180H | |
Generator weight | 40KG | 47KG | 120KG | 150KG | |
Heating head size | Ī¦5.5Ć22L | Š¤8Ć18.5 | Ī¦12Ć25L | Š¤16Ć25 | |
Heating head weight | 1.5KG | 3.1KG | 4.5KG | 8KG | |
Cable length | 3ļ½8 meters according to order | ||||
Cooling desire | >0.3MPa,> 5L/Min | >0.3MPa,> 15L/Min | >0.3MPa,> 30L/Min | ā„0.3MPa ā„30L/min |
Applicationsļ¼

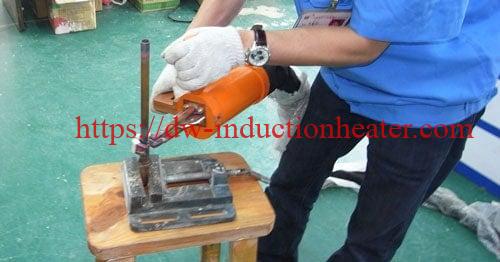

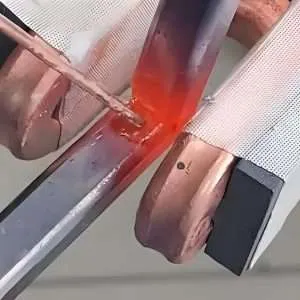

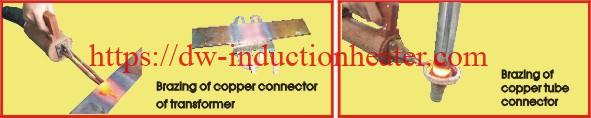

Brazing small parts, selective heat treatment, and induction heating in areas requiring a smaller, moveable unit. Used for induction brazing on site such as the induction brazing of copper cable connectors, copper joints in the air conditioner, copper connectors of the transformer and so on.
Characteristicsļ¼
- By special design, the portable induction heating head is small sized and only weights 1.5 to 8 KG, it is especially suitable for the operation on working site when the heated parts can not be moved.
- The handheld induction heater is characterized with high reliability and high quality while the IGBT power module and our third generation inverting technology is adopted in the induction heating machine.
- The induction heating coil will be designed according to your requests.
