RPR Induction Coating Removal Heater
Description
RPR Induction Coating Removal Heater-RPR Induction Coating Remover-RPR Induction Coating Disbonding Heater

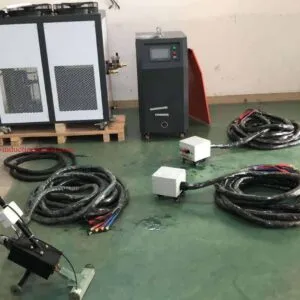

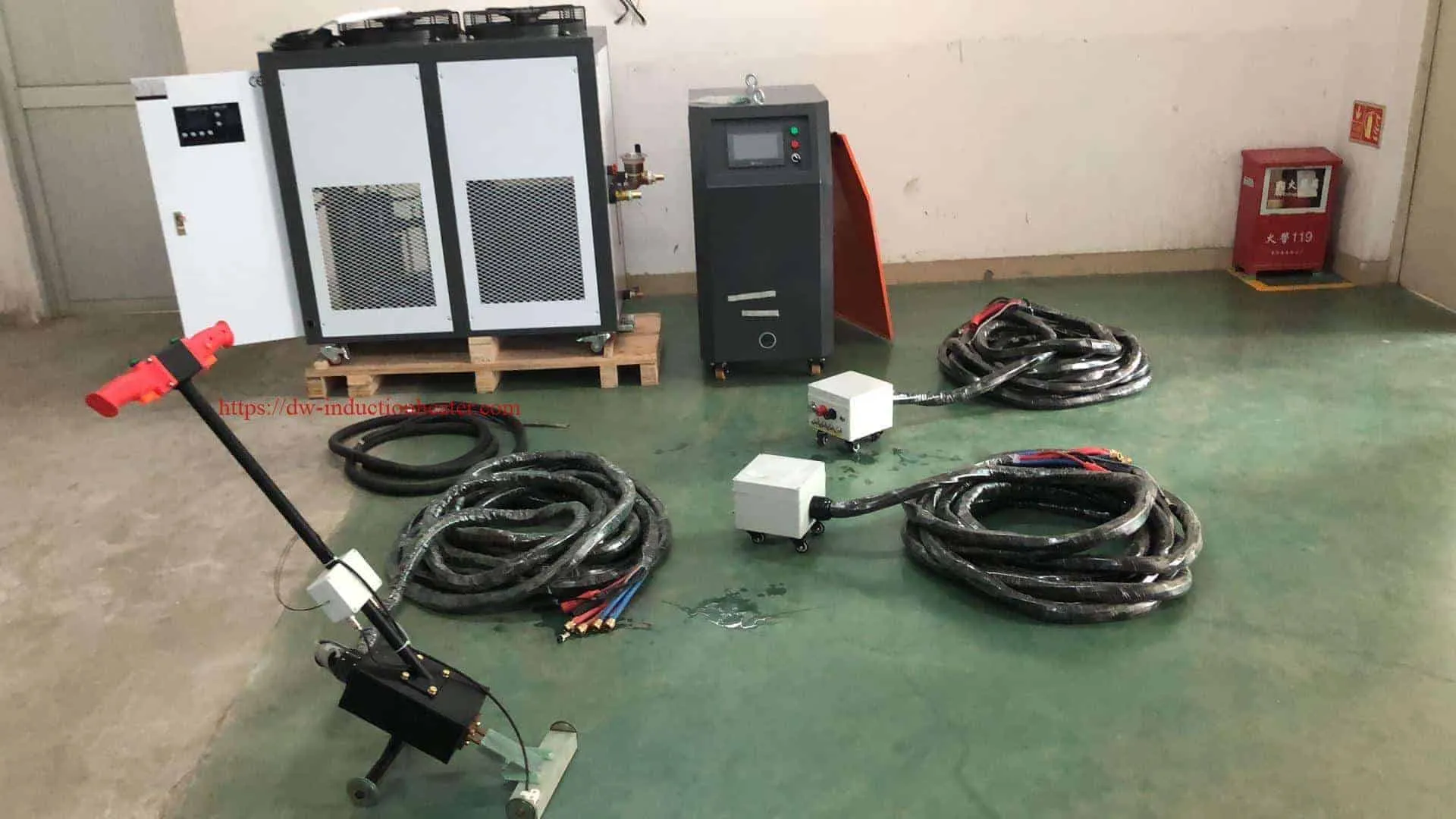

HLQ Long distance RPR induction coating removal heater is consisted of medium frequency induction heating generator, long distance cable and hand-held heating head. Power ranges from 30 to 60KW, and output frequency 20KHz around, cable length can be 20 or 40m long. HLQ RPR induction coating removal heater can be used for heating for coatings removing,rubber removal,paint removal,copper connector brazing, copper tube brazing, surface heating,etc.
Working theory and acteristics
HLQ induction heating machines adopt series oscillating circuit, inverting high frequency power is output through transformer and oscillating cap to the heating head, and then output to coil for heating.
In HLQ RPR Induction Coating Removal Heater, our latest third generation inverting and adjust technologies are adopted to realize soft switching of the IGBT components and independent adjusting of the power and frequency, so as to reach a marvelous heating feature of the machine.
| Model | DWS-25P | DWS-30P | DWS-60P | |
| Max input power | 25kw | 30kw | 60kw | |
| Length of heating head | 20M | 20-40M | ||
| Output frequency | 20-50KHz | |||
| Output current | 5ļ½45A | 6-54A | 12-108A | |
| Output voltage | 70ļ½520V | |||
| Input voltage | 380V,3phases,50/60Hz | |||
| Duty cycle | 50% | |||
| Cooling water | ā„0.5MPa ā„30L/min | |||
| Inner water chiller | Yes | |||
| Weight | Generator | 280KG | 316KG | 580KG |
| Heating head | 2.2KG | 2.7KG | 4.5KG | |
| Size/cm | Generator | 103LĆ750WĆ156.6H | 103LĆ750WĆ156.6H | 70LĆ40WĆ103.5H |
| Heating head | Š¤6.5Ć16.5L | Š¤8Ć18.5L | Š¤11.8Ć24L | |
How RPR induction coating removal | RPR Induction Stripping Works?

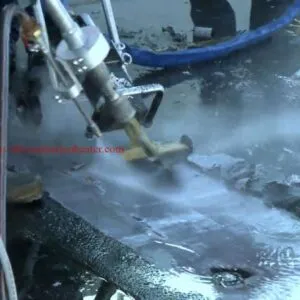

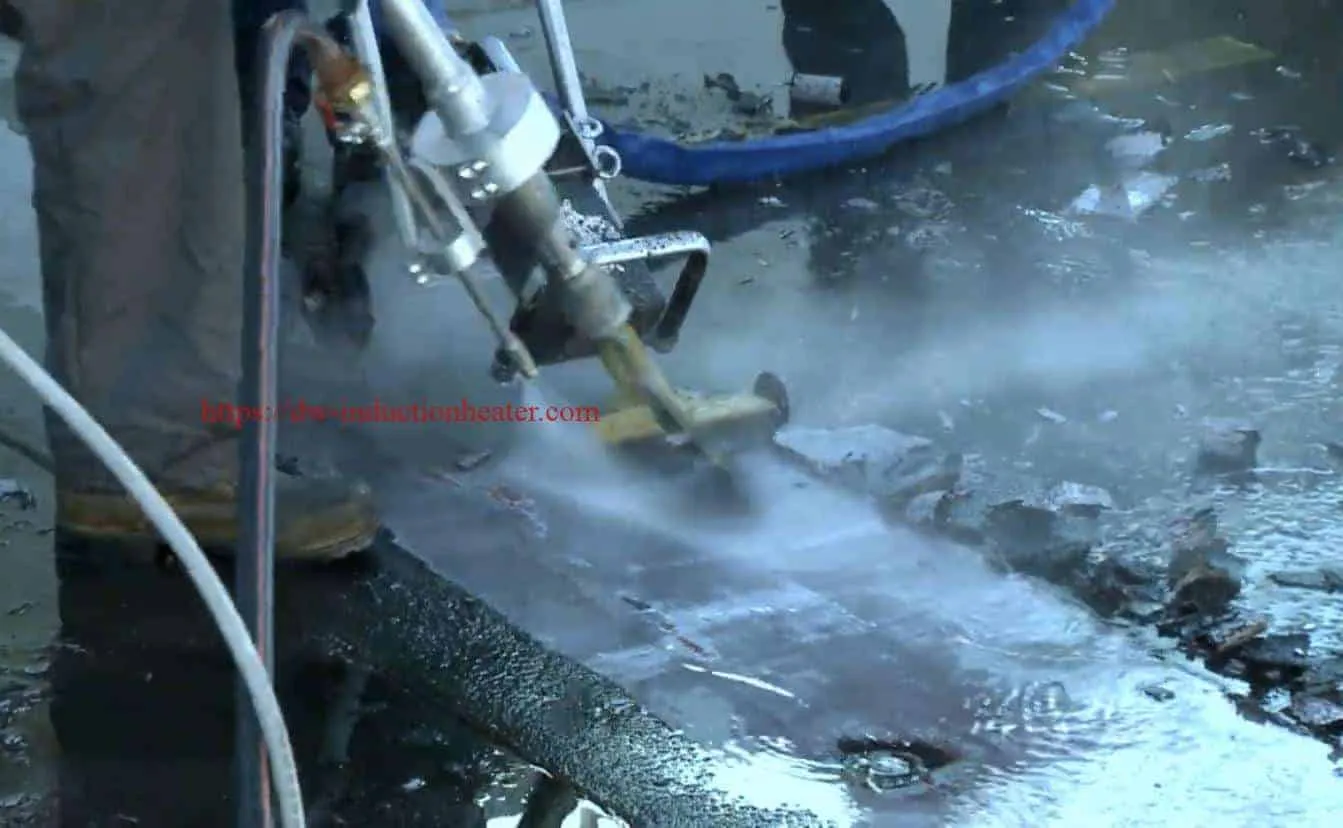

RPR induction coating removal | Induction stripping is a hot surface preparation process.An induction heating generator sends alternating current through an induction coil, which generates an electromagnetic field. This field induces currents that are converted into heat in contact with conducting materials such as steel. The heat is generated beneath the coating, causing the coating to peel rapidly. This method is suitable for treating flat or curved surfaces on the jobsite and does not require any confinement.
The RPR induction coating removal|induction stripping system will strip paint, other coatings, heavy rust, bacterial corrosion and oil and grease electrically conductive surfaces (ferromagnetic steel) breaking the interfacial bonding between the material and the substrate etch residues, induction heating localized and controlled which consumes minimal energy.
HLQ simplifies your coatings removal needs with yet another revolutionary technology: Induction Stripping! HLQās induction stripping equipment removes your toughest coatings from steel structures with no noise or secondary wasteāgetting right down to the steel.
If you have ever wished for a magic wand to solve your coatings removal headaches, HLQ has the next best thing. HLQ technician can wave our induction wand over your coating catastrophe and dis-bond some of the hardest to remove coatings at rates that are up to 10 times faster than competing technologies like sandblasting.Itās not magic, but our induction stripping technology is a close second! When HLQ technicians move our induction head over a steel surface, it creates sufficient heat (typically 300 to 400 degrees) to quickly unbond most coatings from tanks, tankers, pipelines, ships and offshore platforms, allowing coatings (up to 1-inch thick) to be removed in sheets.
RPR Induction Coating Removal

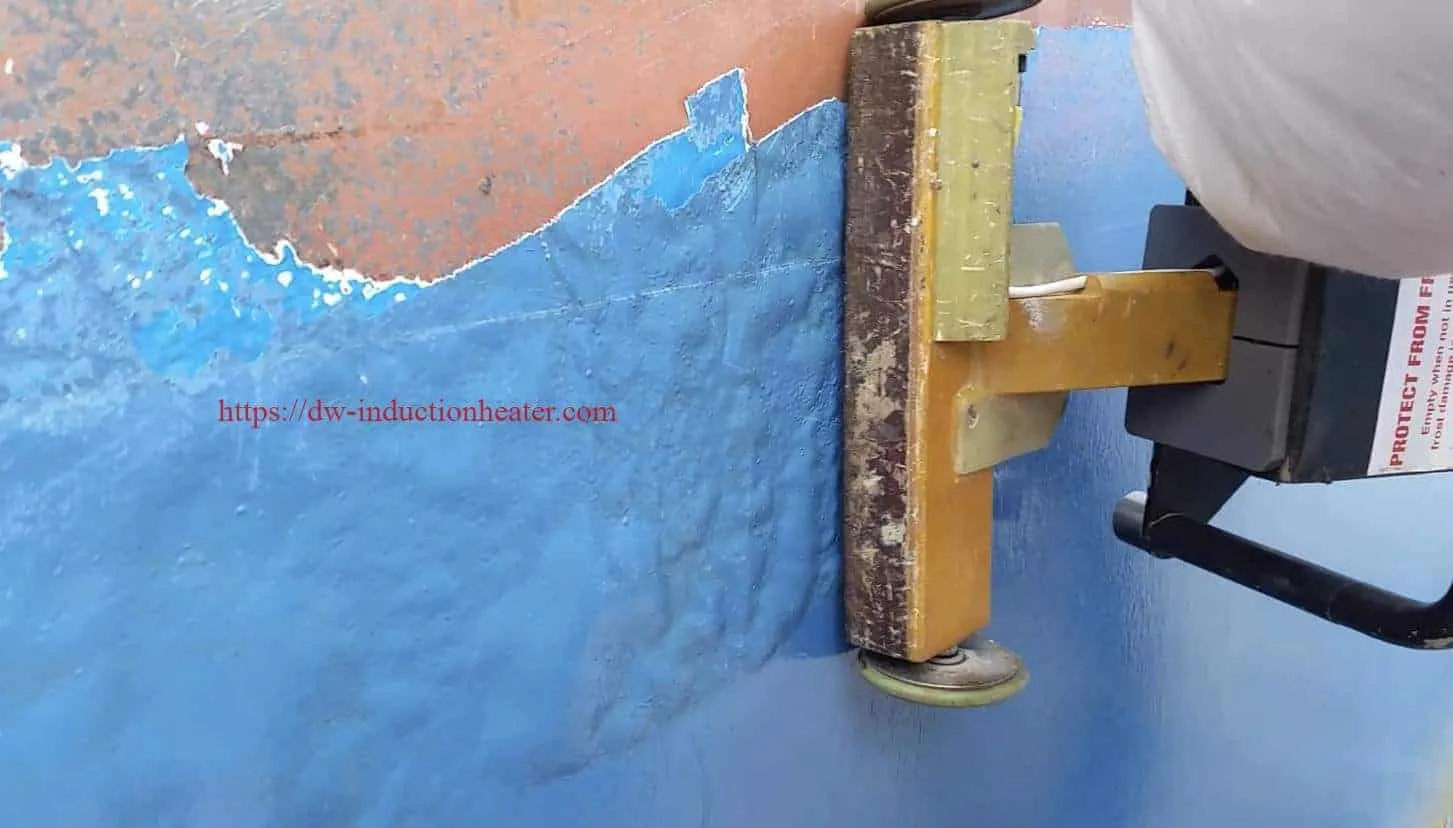

RPR Heat Induction coating removal works by the principle of induction. Heat is generated in the steel substrate and the bond at the steel and coating interface is broken. The coating is then removed entirely without disintegrating and completely free from contaminating agents, i.e.. blast media. This makes disposal and recycling of waste easier and more cost effective.
With minimum power consumption even the thickest and hardest coatings can be completely removed. RPRĀ Induction Coating RemovalĀ isĀ faster than conventional methods. A silent method of coating removal means that our engineers can operate day or night with no noise pollution.
Because of the many advantages of our induction heating process, weāve been able to provide a wide range of Alliance customers with the service they need. Weāve worked with customers in industries such as:
- Oil & gas
- Financial
- Food & beverage processing
- Retail and food services
- Marine
- Hotels & hospitality
- Commercial pools and aquariums
HLQās jaw-dropping induction dis-bonding process removes most coating types, including:
- Coal Tar Epoxy
- Polyethylene
- Fiberglass
- Anti-skid
- Rubber
- Chartek fireproofing or other intumescent coatings
Faster, Quieter, Cleaner, Safer Surface Preparation
A faster, safer and cleaner method for removing industrial coatings from steel surfaces.
Some might say induction stripping is the āquick and dirtyā way to get the job done, but truthfully itās quick, and not messy at all. Because induction stripping creates no secondary waste, cleanup is simplified. Dealing with sheets or strips of coating is infinitely easier than dealing with blast media and dust.
In many cases, containment can be simplified or eliminated altogether. Imagine eliminating a costly scaffolding and containment project and replacing it with a snorkel lift and a drop cloth!
Other trades can work in close proximity to HLQās induction stripping activities because it is a very quiet process that will not create obnoxious noises that disrupt the productivity of other contractors you may have working on your project.
Our induction stripping equipment has no moving parts, making our process much safer than hydro-blasting or sandblasting for your employees, other contractors, customers and passersby.
RPR induction removes paint, coatings, thick rust, bacterial corrosion and oil & grease residues from electrically conductive surfaces (steel, etc.) by breaking the interfacial bonding between the material to be removed and the substrate using controlled, localized induction heating with a mini- mum consumption of energy.
The induction heating principle
The RPR induction generator sends alternating current through an induction heating coil, which gener- ates an electro-magnetic field. This magnetic field induces eddy currents in a conductive mate- rial like steel. Due to the resistance of the steel, these currents are converted to heat = induction heating. The heat is generated below the coat- ing, resulting in quick and clean disbonding.
RPR Heat InductionĀ works by the principle of induction. Heat is generated in the steel substrate and the bond at the steel and coating interfaceĀ is broken. The coating is then removed entirely without disintegrating and completely free from contaminating agents, i.e.. blast media. This makes disposal and recycling of waste easier and more cost effective.
With minimum power consumption even the thickest and hardest coatings can be completely removed. RPR Heat Induction heating is faster than conventional methods. A silent method of coating removal means that our engineers can operate day or night with no noise pollution.
The RPR Induction Coating RemovalĀ system is ideal for the removing paint, rust, and other coatings (vulcanized rubber, fire protectant, epoxies, etc. with control possibili- ties for the following functions:
ā¢ Energy consumption
ā¢ Disbonding temperature range
ā¢ Heat penetration
ā¢ Removal speed
With above setting possibilities, RPR delivers unequalled performance and is the system of choice for cost-effective, safe and environmentally friendly surface coating removal from steel substrates.
RPR is ideal for: marine, tanks, offshore and land-based pipelines
