Portable Induction Brazing Machine for Copper & HVAC Tubes
What Is a Portable Induction Brazing Machine?

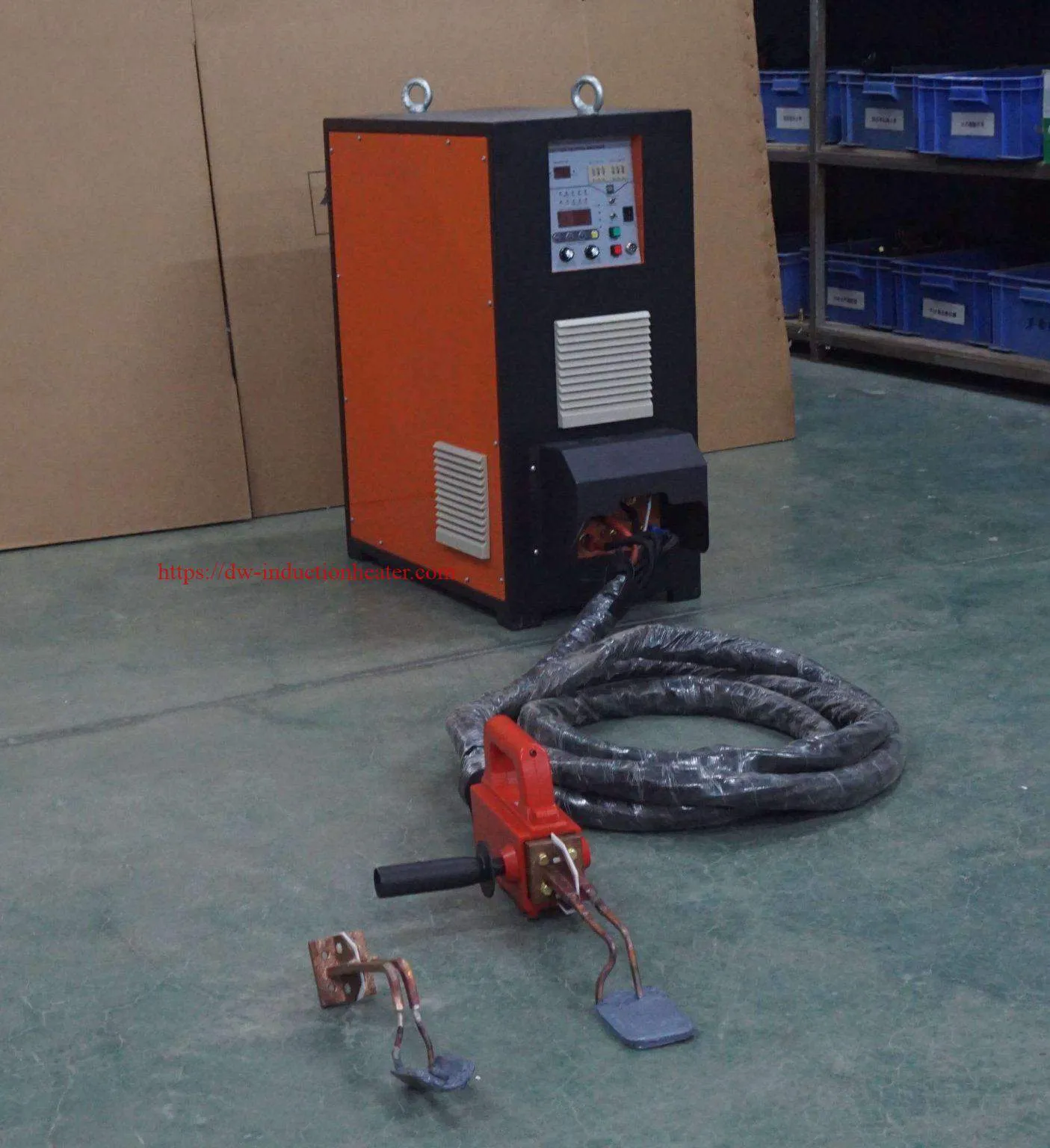

A portable induction brazing machine is a mobile induction heating system designed to deliver fast, localized and flame-free brazing directly at the workpiece through a compact remote heating head and custom induction coil.
Technical Table – HLQ Portable Induction Brazing Machine
| Parameter | DWS-10 | DWS-30 | DWS-60 | DWS-100 |
|---|---|---|---|---|
| Max. Input Power | 10 kW | 30 kW | 60 kW | 100 kW |
| Input Voltage | 3P × 380V | 3P × 380V | 3P × 380V | 3P × 380V |
| Power Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Generator Weight | 40 kg | 47 kg | 120 kg | 150 kg |
| Heating Head Weight | 1.5 kg | 3.1 kg | 4.5 kg | 8 kg |
| Cable Length | 3–8 m | 3–8 m | 3–8 m | 3–8 m |
| Cooling Pressure | >0.3 MPa | >0.3 MPa | >0.3 MPa | ≥0.3 MPa |
| Minimum Cooling Flow | >5 L/min | >15 L/min | >30 L/min | ≥30 L/min |
| Induction Coil | Custom | Custom | Custom | Custom |
| Installation Type | Portable / mobile | Portable / mobile | Industrial mobile | High-power mobile |
| Typical Use | Small brazing jobs | General industrial brazing | Larger joints | Heavy-duty brazing |
Applications:
Induction Brazing small parts, selective heat treatment, and induction heating in areas requiring a smaller, moveable unit. Used for induction brazing on site such as the induction brazing of copper cable connectors, copper joints in the air conditioner, copper connectors of the transformer and so on.
Characteristics:
- By special design, the portable induction heating head is small sized and only weights 1.5 to 8 KG, it is especially suitable for the operation on working site when the heated parts can not be moved.
- The handheld induction heater is characterized with high reliability and high quality while the IGBT power module and our third generation inverting technology is adopted in the induction heating machine.
- The induction heating coil will be designed according to your requests.
Why Choose a Portable Induction Brazing Machine?
A portable induction brazing system allows the heating head and induction coil to move to the workpiece instead of requiring the component to be placed inside a fixed machine.
This is particularly useful for:
- Installed HVAC systems
- Large transformers
- Fixed pipe assemblies
- Copper cable terminals
- Refrigeration systems
- Maintenance and field repair
Because the induction coil is custom-designed for the joint geometry, heating can be concentrated around the brazing zone rather than the whole component. The current page also notes that the compact head is specifically intended for situations where the heated part cannot be moved.
FAQs
1. What is a portable induction brazing machine used for?
It is used for localized brazing and heating where the workpiece is difficult to move.
Typical applications include copper cable connectors, air-conditioner copper joints, transformer copper connectors and other on-site brazing jobs.
2. What power ranges are available?
The current HLQ DWS portable brazing series includes:
10 kW, 30 kW, 60 kW and 100 kW.
This allows the equipment to cover small joints through larger industrial brazing applications.
3. How heavy is the portable heating head?
The heating-head weight depends on model:
- DWS-10: about 1.5 kg
- DWS-30: about 3.1 kg
- DWS-60: about 4.5 kg
- DWS-100: about 8 kg
4. How long can the portable induction cable be?
The listed cable length is approximately 3–8 meters, depending on the ordered configuration.
This allows the power generator to remain several meters away from the actual brazing location.
5. Can a portable induction brazing machine braze copper tubing?
Yes. Copper tubing and copper connectors are among the most suitable applications.
The page specifically mentions air-conditioner copper joints, copper cable connectors and transformer copper connectors.
6. Does the induction coil need to be customized?
Yes.
The current product page states that the induction heating coil is designed according to customer requirements.
Coil geometry should match the tube diameter, joint position, heating area and production requirements.
7. What cooling system is required?
The DWS series requires water cooling.
Cooling pressure should generally be around 0.3 MPa or higher, with minimum flow ranging from more than 5 L/min for the 10 kW system to approximately 30 L/min or more for the 60–100 kW systems.
8. What is the advantage of portable induction brazing compared with torch brazing?
Portable induction brazing offers several advantages:
- Localized heating
- No direct flame at the joint
- Repeatable heating cycles
- Easier access to fixed components
- Custom coil geometry
- Lower operator dependence
- Easier field use
- Potential for semi-automatic production
It is especially valuable when the component itself cannot be moved.
