Induction Soldering Brass to Steel Plate

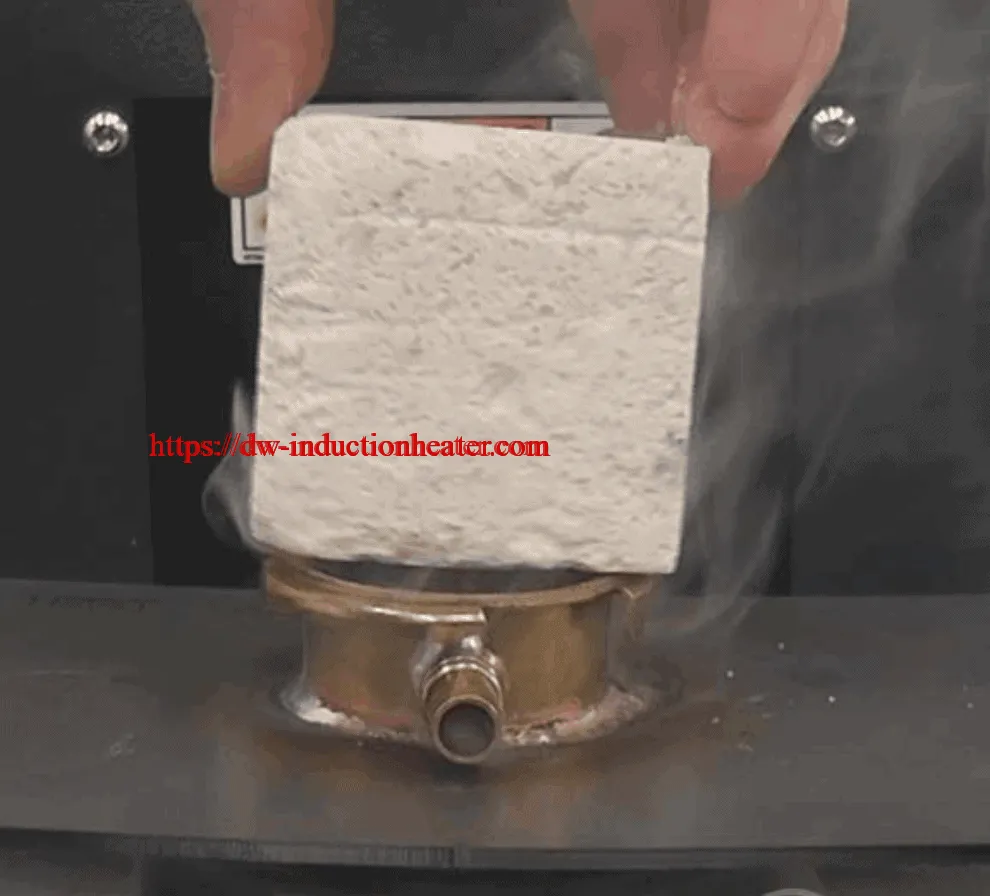

High Frequency Induction Soldering Brass to Steel Plate Technology Objective High Frequency Induction Soldering brass to steel plate Equipment DW-UHF-6KW-I handheld induction brazing heater Materials Steel plate to brass part induction soldering using Harris Stay-Brite #8 Silver Bearing Solder and Harris Bridgit Lead Free Soldering Flux. Key Parameters Power: 2kW Temperature: 535°F to 585°F (279°C … Read more

Induction Soldering Steel Cover

Induction Soldering Steel Cover With High Frequency Heating Units

Objective Soldering a nickel plated steel cover onto a nickel plated steel EMI filter housing without damaging the RF circuit
Material 2” x 2” (50.8mm) nickel plated steel cover, 2” x 2” (50.8mm) nickel plated steel box and lead-free solder and flux
Temperature 573 ºF (300 ºC)
Frequency 229 kHz
Equipment • DW-UHF-3 kW induction heating system, equipped with a remote workhead containing two 1.2μF capacitors for a total of 2.4μF
• An induction heating coil designed and developed specifically for this application.
Process A single turn square helical coil is used to solder the cover to the filter box. Solder flux is applied to the filter box and two solder turns (preforms) are placed covering the perimeter of the cover. The assembly is positioned under the coil and power is applied for 7 seconds to solder the seam.
Results/Benefits Induction heating provides:
• Hands-free heating that involves no operator skill for manufacturing
• Repeatable, non-contact clean heating
• Fast precise heating
• Good solder flow without over heating the box and damaging RF circuits.
• Even distribution of heating

induction soldering steel cover

Soldering Steel To Brass With Induction Heater

Soldering Steel To Brass With Induction IGBT Soldering Heater

Objective Heat an assembly of small, gold-plated steel connectors to a brass block.
Material Approx. 1/8” (3.2mm) diameter gold-plated steel connectors, 1”(25.4mm) square x 1/4” thick brass block
Temperature 600°F(315.6ºC)
Frequency 240 kHz
Equipment • DW-UHF-6kW induction heating system equipped with a remote workhead.
• An induction heating coil designed and developed specifically for this application.
Process A two-turn helical coil is used to provide uniform heat to parts assembly. Solder paste and flux are applied to the joint area and power is applied for 20 seconds to solder the parts. Proper
fixturing is needed to hold the parts in position.
Results/Benefits Induction heating provides:
• Rapid, localized heating to specific regions of part
• Neat and clean joints
• Flameless processing

induction soldering steel to brass
