Induction shrink fitting and thermal disassembly


Induction shrink fitting and thermal disassembly process

Induction shrink fitting and thermal disassembly is a method of fitting a metallic ring around a shaft or hub by heating the ring with an induction heating method. The metal ring is made to expand and then cooled with the shaft or hub inside. The two metal parts contract after cooling, and the metal ring is in a shrink-fit position. An induction shrink fitting machine uses induction heating technology to heat a metal ring to high temperatures to cause the metal ring to expand and then contract it to fit tightly over a shaft or hub.

How do Induction Shrink fitting machines work?

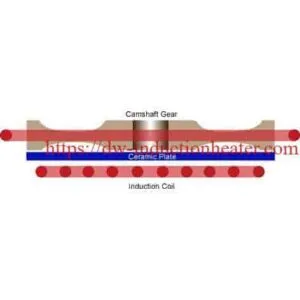

The induction shrink fitting machine heats the metal ring with an electromagnetic field, causing the metal ring to heat up due to eddy currents. The coil of the machine generates electromagnetic waves which induce the currents in the metal ring, and it heats up. The temperature is controlled with different settings of voltage, frequency, and processing time. The process of heating and cooling with the shaft or hub is done until they fit tightly.

The Benefits of Induction Shrink fitting machines

The benefits of Induction shrink fitting machines are numerous. Here are a few:

1. High speed and efficiency – Induction shrink fitting machines heat metal at a fast rate, making it possible to complete the process in a short time.

2. Precision – Induction heating provides precise heating using controlled energy input, producing consistent and accurate results.

3. Safety – Induction shrink fitting reduces health and safety risks by eliminating the use of oxyacetylene burners, gas flames, or other heating methods.

4. Cost-effective – Induction shrink fitting requires less energy and reduces the cost that would be used to pay for prolonged heating or the use of other heating solutions.

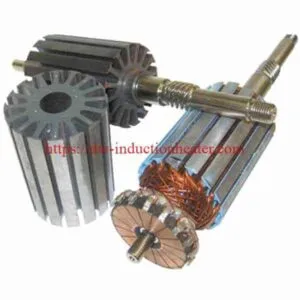

The use of induction shrink fitting is common in many industries, including automotive, aerospace, construction, and manufacturing. It is widely used for assembling bearings, gears, couplings, and other components that require a tight and secure fit. The method has proven to be an effective and efficient alternative to traditional assembly methods, providing a strong and durable joint that can withstand high levels of stress and vibration.


Induction shrink fitting machines have revolutionized the way that industries fit metal parts together. The technology offers quick, accurate, safe, and cost-effective methods of heating metal parts. The metal parts produced through induction shrink fitting are of high quality, durability and strength.induction shrink fitting is a valuable tool for assembling components with precision and accuracy, reducing the risk of part failure and increasing efficiency in manufacturing processes. Induction shrink fitting is ideal for industries that require high precision metal parts, including aerospace engineering, automotive and electronics industries.
