What Is the DW-HF-15 High Frequency Induction Heater?
The DW-HF-15 High Frequency Induction Heater is a compact industrial induction heating system developed for small and localized metal-heating applications. It uses high-frequency alternating current to generate an electromagnetic field through a specially designed copper induction coil.
When an electrically conductive workpiece is placed within the effective magnetic field, induced electrical currents produce heat inside the metal. The resulting heating pattern depends on the operating frequency, coil geometry, workpiece material and heating duration.
Unlike direct-flame heating, induction heating does not require a burner flame at the workpiece. Heating power can be adjusted through the induction generator, allowing the process to be adapted to different components.
The DW-HF-15 is particularly relevant to workshops, industrial maintenance departments, brazing stations, tool manufacturing and small-part heat-treatment operations.
It is not automatically suitable for every metal, heating depth, production rate or melting application. The induction power supply and heating coil must be matched to the specific process.

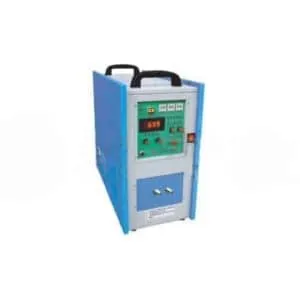

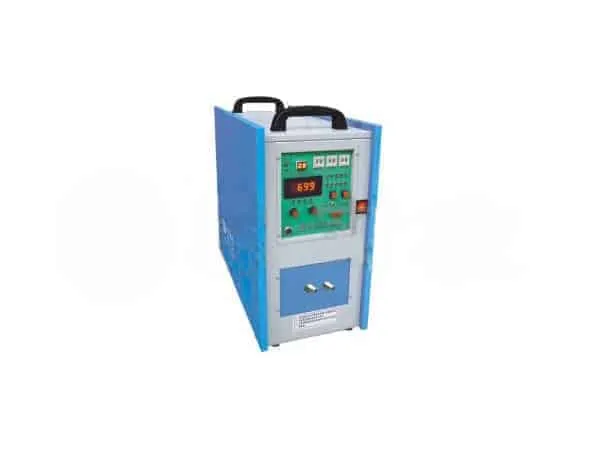

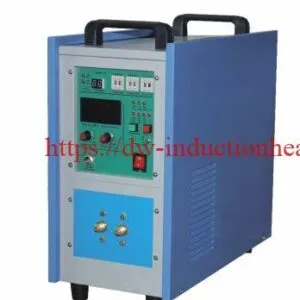

DW-HF-15 Product Overview
| Item | Product Information | Engineering Consideration |
|---|---|---|
| Model | DW-HF-15 | Confirm the exact supplied variant |
| Equipment Type | High Frequency Induction Heating Machine | Localized industrial metal heating |
| Power Class | 15kW maximum output, as published | Confirm the power-rating definition |
| Power Supply | Single-phase 220V AC | Verify full-load electrical requirements |
| Frequency | 10–80kHz on the target product page | Other HLQ pages publish different ranges |
| Heating Method | Electromagnetic Induction | Requires a compatible coil and workpiece |
| Cooling | Water Cooling | Confirm flow, pressure and temperature limits |
| Primary Applications | Brazing, hardening, annealing, shrink fitting and preheating | Validate each process independently |
| Coil Configuration | Application-specific | Selected according to workpiece geometry |

Major Components of a High Frequency Induction Heating System
| Component | Function | Technical Requirement |
|---|---|---|
| Electrical Input | Supplies power to the induction generator | Correct voltage, wiring, protection and grounding |
| Induction Inverter | Generates high-frequency alternating current | Compatible rated power and load conditions |
| Resonant Matching Circuit | Matches the electrical load to the induction inverter | Compatible coil inductance and operating frequency |
| Induction Heating Coil | Produces the alternating magnetic field | Appropriate geometry and cooling capacity |
| Workpiece Fixture | Maintains the component in the required heating position | Consistent alignment and suitable clearance |
| Control Panel | Allows operation and adjustment of heating parameters | Confirm available control and timer functions |
| Cooling Circuit | Removes heat from designated equipment components | Approved coolant flow, pressure and temperature |
| Protection System | Responds to specified operating faults | Verify fault detection and shutdown functions |
Key Applications
The DW-HF-15 can be considered for several industrial heating processes. Each application requires a suitable workpiece, induction coil and operating procedure.
For small conductive components, high-frequency induction heating can provide localized heat input without requiring the entire component to be placed in a conventional furnace.
1. Induction Brazing of Copper Tubes
Induction heating is used to raise copper tube joints and compatible fittings to the temperature required by a selected brazing filler metal.
The induction coil should be designed to heat the joint region sufficiently for filler metal wetting and capillary flow.
For copper-to-copper brazing, suitable copper-phosphorus or copper-phosphorus-silver filler metals may be used according to the joint specification.
For copper-to-brass or other dissimilar-material joints, filler compatibility, flux requirements and temperature distribution must be reviewed separately.
Learn more about induction brazing copper tubes and fittings.
2. Brazing Carbide Tools
Induction brazing can be used to join suitable carbide inserts to steel tool holders using qualified filler metals and joint designs.
The process must provide adequate heating of the joint while avoiding excessive thermal gradients and damage to the carbide component.
A pancake, profile or specially designed induction coil may be used depending on tool geometry.
3. Small Shaft Surface Hardening
For suitable carbon and alloy steels, induction heating can rapidly raise selected surface regions to the required austenitizing temperature.
The heated surface must then be quenched according to the approved metallurgical process.
The final hardness and hardened case depth depend on steel composition, temperature distribution, heating duration and quenching conditions.
The DW-HF-15 is a preliminary candidate for small localized hardening operations, but no universal shaft diameter or hardened case depth can be guaranteed from the published generator rating alone.
4. Metal Annealing
The equipment may be used for selected annealing or stress-relief operations involving small copper, brass, steel or stainless steel components.
Annealing results depend on the complete thermal cycle, including heating temperature, holding time and cooling conditions.
5. Induction Shrink Fitting
Induction heating can expand a metal ring, sleeve, gear or similar component before assembly onto a shaft or other mating component.
The required temperature should be calculated from material expansion properties, interference allowance and component geometry.
6. Localized Preheating
High-frequency induction heating may be used to preheat small metal parts before joining, forming or other industrial operations.
The heating zone and process temperature should be defined according to the manufacturing requirement.
7. Small-Scale Metal Melting
Small-scale induction melting may be possible with an appropriately designed crucible, induction coil and power supply configuration.
However, the published 15kW-class power rating does not establish a universal melting capacity. The metal type, melting temperature, charge mass, crucible characteristics and thermal losses must be evaluated.
| Application | Typical Material | Recommended Coil Concept | Important Requirement |
|---|---|---|---|
| Copper Tube Brazing | Copper and compatible fittings | Helical or U-shaped coil | Filler-metal compatibility and joint heating |
| Carbide Tip Brazing | Steel and carbide | Pancake or custom-profile coil | Controlled thermal gradients |
| Small Shaft Hardening | Suitable carbon or alloy steel | Encircling or scanning coil | Required hardness, case depth and quenching |
| Metal Annealing | Copper, brass and selected steel alloys | Helical or tunnel coil | Correct thermal cycle |
| Shrink Fitting | Steel rings, sleeves and gears | Encircling coil | Temperature uniformity and expansion allowance |
| Localized Preheating | Steel and conductive alloys | Application-specific coil | Required heated area and process temperature |
| Small-Batch Melting | Selected compatible metals | Dedicated crucible coil | Material, mass, crucible and melting-temperature verification |
Suitable Materials
Induction heating is suitable for many electrically conductive materials. However, the resulting heating performance depends on electrical resistivity, magnetic permeability, thermal conductivity, workpiece geometry and operating temperature.
The same induction coil and power setting will not necessarily produce the same heating result in different metals.
Material Compatibility
| Material | Heating Characteristics | Typical Application | Design Consideration |
|---|---|---|---|
| Carbon Steel | Magnetic properties change with temperature | Hardening, preheating and shrink fitting | Consider the Curie transition and required temperature depth |
| Alloy Steel | Properties depend on alloy composition | Tool heating and localized heat treatment | Use grade-specific metallurgical requirements |
| Stainless Steel | Electrical and magnetic properties vary by grade | Annealing, preheating and selected brazing | Verify actual stainless steel grade |
| Copper | High electrical and thermal conductivity | Tube brazing and electrical components | Optimize coil coupling and heating time |
| Brass | Conductive copper-zinc alloy | Fitting brazing and local heating | Control overheating and zinc-containing fumes |
| Aluminum | Nonferromagnetic and highly conductive | Selected local heating applications | Control temperature and assess the required power |
| Carbide-Steel Assembly | Dissimilar material properties | Tool brazing | Control thermal gradients and filler metal selection |
Material Selection Considerations
| Material Property | Effect on Heating | Engineering Requirement |
|---|---|---|
| Electrical Resistivity | Influences induced electrical losses | Use appropriate temperature-dependent values |
| Magnetic Permeability | Influences electromagnetic current distribution | Consider magnetic transitions in ferrous materials |
| Thermal Conductivity | Influences heat distribution | Evaluate surface-to-core temperature differences |
| Specific Heat Capacity | Determines useful heating energy | Include the relevant temperature range |
| Workpiece Geometry | Influences magnetic coupling and heated mass | Match the coil to the actual component |
| Initial Temperature | Changes total temperature rise | Include the actual starting condition |
| Target Temperature | Changes heating requirements | Verify process-specific limits |
Working Principle
The DW-HF-15 operates according to electromagnetic induction.
An alternating electrical current flows through a copper induction coil. The coil generates a changing magnetic field around the workpiece.
When a conductive metal component is positioned within this field, electrical currents are induced inside the material.
These induced currents generate heat through electrical resistance.
For some ferromagnetic materials, magnetic losses may also contribute to heating under appropriate conditions.
The final heating distribution depends on electromagnetic coupling, operating frequency, workpiece dimensions and heating time.
Energy Conversion Process
| Step | Component | Function |
|---|---|---|
| 1 | 220V Electrical Supply | Provides input electrical energy |
| 2 | Induction Power Converter | Produces the required alternating electrical power |
| 3 | Resonant Matching Circuit | Matches the heating load to the power stage |
| 4 | Copper Induction Coil | Generates an alternating magnetic field |
| 5 | Metal Workpiece | Absorbs electromagnetic energy and generates heat |
| 6 | Heating Control | Regulates the selected heating cycle |
| 7 | Cooling System | Removes heat from the coil and designated equipment components |
Induction Frequency and Heating Depth
The operating frequency influences the distribution of induced electrical currents within the workpiece.
Under simplified electromagnetic conditions, higher frequencies produce smaller reference electrical penetration depths, while lower frequencies produce larger reference penetration depths.
This behavior is associated with the skin effect.
The reference skin depth for a suitable homogeneous material can be estimated using:
δ = √[ρ / (π × f × μ)]
Where:
- δ = Electrical skin depth, meters.
- ρ = Electrical resistivity, Ω·m.
- f = Operating frequency, Hz.
- μ = Absolute magnetic permeability, H/m.
Important: Electrical skin depth is not identical to the final temperature penetration depth. The actual temperature profile also depends on thermal conduction, heating time and temperature-dependent material properties.
The target DW-HF-15 page publishes an oscillation-frequency range of 10–80kHz. Other HLQ pages publish 30–80kHz or 30–100kHz for related DW-HF-15 configurations.
The exact frequency range must therefore be confirmed for the supplied machine.
Induction Coil Design
The coil is one of the most important components of a high-frequency induction heating system.
Its dimensions, number of turns, active heating length and distance from the workpiece influence the magnetic field and electrical matching.
A coil designed for copper tube brazing may not be suitable for shaft hardening, bearing heating or metal melting.
Application-specific coils should be selected according to workpiece geometry, material properties and heating requirements.
Explore HLQ’s custom induction heating coil design solutions.
| Application | Coil Type | Design Priority |
|---|---|---|
| Copper Tube Brazing | Helical or U-shaped | Joint heating and access |
| Carbide Tool Brazing | Pancake or profile | Controlled heat distribution |
| Small Shaft Hardening | Encircling or scanning | Surface heating and case-depth requirements |
| Shrink Fitting | Encircling | Uniform thermal expansion |
| Annealing | Helical or tunnel | Heating-zone coverage |
| Small-Batch Melting | Crucible-specific coil | Charge geometry and electromagnetic coupling |
Technical Specifications
The following specifications are based on the original HLQ DW-HF-15 product page.
Where related HLQ pages publish different values, the discrepancy is identified rather than replaced by an unsupported universal specification.
DW-HF-15 Published Technical Data
| Parameter | Specification | Notes |
|---|---|---|
| Model | DW-HF-15 | High-frequency induction heating equipment |
| Input Supply | Single-phase 220V AC, 50/60Hz | Manufacturer-published value |
| Working Voltage | AC 180–250V | Confirm full-load operating limits |
| Maximum Output Power | 15kW | Confirm output-rating definition |
| Adjustable Output Power | 3–15kW | Manufacturer-published adjustment range |
| Oscillation Frequency | 10–80kHz | Other HLQ pages publish different ranges |
| Maximum Output Current | 42A | Measurement point requires confirmation |
| Efficiency | 90% | Published claim; test conditions not provided |
| Continuous Load Rate | 100% | Published claim; verify ambient and cooling conditions |
| Cooling Water Flow | 5 L/min | Confirm minimum design flow |
| Cooling Water Pressure | Above 0.2MPa | Another pressure reference of 0.1MPa appears with flow |
| Water Temperature | Below 40°C, as listed | Confirm measurement and protection conditions |
| Machine Dimensions | 500 × 240 × 450mm | Length × Width × Height |
| Packing Dimensions | 610 × 620 × 340mm | Verify actual shipping configuration |
| Gross Weight | 40kg | Published shipping information |
| Packing | Plywood Wooden Case | Verify shipping requirements |
Important Specification Verification
| Parameter | Published Information | Engineering Action |
|---|---|---|
| Maximum Power | 15kW on the target page; 15kVA on another HLQ page | Confirm input and output power definitions |
| Frequency | 10–80kHz, 30–80kHz or 30–100kHz across related pages | Confirm the frequency range for the supplied variant |
| Duty Cycle | 100% on the target page; 80% on another product page | Confirm ambient, load and cooling conditions |
| Rated Current | Different current values appear across product literature | Confirm rated input current and measurement boundary |
| Cooling Pressure | 0.1MPa and above 0.2MPa references | Confirm inlet-pressure range and differential pressure |
| Temperature Protection | Below 40°C | Confirm the monitored location and shutdown setting |
Single-Phase Electrical Supply Considerations
The DW-HF-15 is published as a single-phase 220V induction heater.
Electrical supply sizing must use the manufacturer’s verified full-load input current, input power factor, conversion efficiency and required protection.
For reference, a 15kW single-phase input at 220V and unity power factor would require approximately 68.2A.
This calculation does not represent a verified DW-HF-15 input current. If 15kW is an output rating, the required input power and current may be higher.
Electrical installation and protection must be designed by qualified personnel according to applicable local regulations.

Recommended Model Selection
The appropriate induction heating machine should be selected according to the required thermal process rather than rated power alone.
The DW-HF-15 is most relevant to localized heating of relatively small workpieces. Higher-power systems or different frequency ranges may be necessary for larger components, deeper heating or increased production throughput.
Application-Based Equipment Selection
| Application | Material | Power Class to Evaluate | Frequency Selection | Engineering Requirement |
|---|---|---|---|---|
| Small Copper Tube Brazing | Copper | DW-HF-15 candidate | Confirm loaded operating frequency | Verify tube dimensions, filler metal and cycle time |
| Brass Fitting Brazing | Copper and brass | DW-HF-15 candidate | Application-specific | Balance heating of different components |
| Carbide Tip Brazing | Steel and carbide | DW-HF-15 candidate; larger or UHF systems may be required | Joint-specific | Control temperature and thermal stress |
| Small Shaft Hardening | Suitable carbon or alloy steel | DW-HF-15 candidate | Selected for case-depth and heating requirements | Verify steel grade and quench process |
| Metal Annealing | Copper, brass and selected steels | DW-HF-15 or higher-power alternative | Material-dependent | Validate the full thermal cycle |
| Small Ring Shrink Fitting | Steel | DW-HF-15 candidate | Application-specific | Determine expansion and permissible temperature |
| Larger Metal Heating | Steel or other conductive metals | Evaluate higher-power HF equipment | Depends on the required heating depth | Calculate workpiece mass and throughput |
Selection Note: The recommendations above are preliminary application categories. No universal maximum workpiece diameter, heating time or hardening depth is guaranteed by these power classes.
Related High Frequency Product Families
| Product Family | General Positioning | Primary Selection Factor |
|---|---|---|
| DW-HF-15 | Compact 15kW-class high-frequency heating | Localized heating and single-phase electrical supply |
| DW-HF-25 | Higher-power HF heating family | Greater heating demand and electrical supply requirements |
| DW-HF-35 | Higher-power industrial HF heating family | Increased thermal load and production requirements |
| DW-UHF Series | Separate ultra-high-frequency equipment family | Very localized heating and specific frequency requirements |
| DW-MF Series | Medium-frequency heating equipment | Applications requiring a different power and frequency combination |
For a broader comparison, see HLQ’s induction heating power supply selection guide.
Process Workflow
A reliable high-frequency induction heating process requires correct workpiece preparation, induction coil positioning, equipment inspection, heating control and quality verification.
The detailed production sequence varies according to whether the machine is used for brazing, surface hardening, annealing, shrink fitting or another application.
General High Frequency Induction Heating Process
| Step | Operation | Engineering Objective |
|---|---|---|
| 1 | Material Identification | Confirm workpiece material and dimensions |
| 2 | Process Preparation | Prepare the component according to the heating application |
| 3 | Coil Selection | Use a compatible induction coil |
| 4 | Cooling System Check | Verify approved coolant flow and temperature |
| 5 | Electrical System Check | Confirm supply and protection conditions |
| 6 | Workpiece Positioning | Maintain the required coil-to-workpiece relationship |
| 7 | Heating Cycle | Apply the specified power and heating time |
| 8 | Temperature Verification | Confirm the required heating result using an approved method |
| 9 | Application-Specific Processing | Complete brazing, quenching, fitting or other required operation |
| 10 | Quality Inspection | Verify the finished process against acceptance requirements |
Induction Brazing Workflow
For brazing, the sequence normally includes cleaning the joint, selecting the filler metal, assembling the components, positioning the coil, heating the joint, allowing filler flow, cooling and inspecting the completed joint.
| Stage | Critical Requirement | Potential Defect |
|---|---|---|
| Surface Preparation | Clean and compatible joining surfaces | Poor filler wetting |
| Joint Assembly | Correct fit and clearance | Incomplete filler penetration |
| Filler Selection | Compatible filler melting range | Weak or brittle joint |
| Induction Heating | Correct joint temperature distribution | Uneven brazing or overheating |
| Cooling | Approved solidification conditions | Cracking or residual stress |
| Inspection | Specified visual, strength or leak testing | Undetected joint defects |
Induction Hardening Workflow
For induction hardening, the component must be made from a material suitable for the required hardening process.
The selected surface region is heated to the required austenitizing condition and then quenched using the approved cooling medium and procedure.
Final hardness, hardened depth, distortion and crack resistance must be verified.
Explore HLQ’s shaft induction hardening equipment and application requirements.
Cooling Requirements
The original DW-HF-15 product page lists a cooling-water flow of 5 L/min and a temperature reference below 40°C.
These figures should be checked against the manufacturer’s current installation manual.
Cooling must protect both the induction coil and the designated internal power components.
| Parameter | Published or Required Information | Verification |
|---|---|---|
| Cooling Medium | Water | Confirm approved water quality |
| Published Water Flow | 5 L/min | Confirm minimum operating flow |
| Published Water Pressure | Above 0.2MPa | Confirm acceptable inlet pressure and differential pressure |
| Temperature Reference | Below 40°C | Confirm actual inlet or monitored temperature limit |
| Water-Flow Protection | Protection function described by manufacturer | Verify the installed interlock |
| Cooling Hoses | Compatible with equipment connections | Inspect for leaks and restrictions |
| Coil Cooling | Application-specific | Verify water circulation through the coil |
| Cooling Unit | Selected according to total heat rejection | Confirm required cooling capacity |
Illustrative Cooling Water Calculation
The heat removed by a cooling-water circuit can be estimated from the water mass-flow rate and temperature increase.
P = mflow × Cp × ΔT
For an illustrative water flow of 5 L/min and a water temperature increase of 10°C, the theoretical heat removal is approximately 3.48kW.
This does not establish the actual waste-heat output of the DW-HF-15. The complete cooling system must be sized using verified equipment and process data.
Common Problems and Solutions
High-frequency induction heating performance depends on the interaction between the electrical generator, induction coil, workpiece, cooling circuit and process settings.
| Problem | Possible Cause | Recommended Solution |
|---|---|---|
| Slow Heating | Insufficient useful power, poor coupling or excessive heated mass | Verify loaded power, coil geometry and workpiece conditions |
| Uneven Heating | Incorrect coil shape or workpiece positioning | Review field distribution and fixture alignment |
| Insufficient Surface Temperature | Unsuitable heating cycle or inadequate power transfer | Verify the process recipe and electrical matching |
| Excessive Local Heating | Field concentration or inappropriate heating duration | Review the coil and power settings |
| Cooling Alarm | Low flow, blockage, excessive water temperature or sensor fault | Stop heating and inspect the cooling system |
| Over-Current Alarm | Load mismatch, connection problem or electrical fault | Isolate equipment and arrange qualified electrical inspection |
| Weak Brazed Joint | Incorrect filler, contamination or insufficient joint temperature | Verify filler compatibility, joint preparation and heating conditions |
| Hardening Cracks | Unsuitable steel, temperature gradient or quench severity | Review the complete metallurgical process |
| Coil Overheating | Insufficient cooling or excessive electrical losses | Check water circulation and coil operating conditions |
| Unstable Heating Output | Changing load, electrical mismatch or control fault | Inspect load matching and operating parameters |
| Frequent Shutdown | Electrical, cooling or protection-system issue | Record the fault and conduct qualified diagnosis |
Engineering Selection Guide
Selecting a high-frequency induction heater requires engineering evaluation of the complete heating process.
The DW-HF-15 is a potential solution for small localized heating applications, but the correct model and coil must be selected according to the workpiece and production requirements.
Step 1: Identify the Workpiece
Specify the material grade, workpiece dimensions, weight and required heating zone.
For brazing, provide both base materials and joint geometry. For hardening, specify the steel grade and required hardness or case depth.
Step 2: Define the Target Temperature
Determine the temperature required by the process.
For brazing, the temperature depends on the filler metal and base materials. For hardening, the required temperature depends on steel grade and metallurgical requirements.
Step 3: Determine the Heating Time
Specify the required time to reach the target temperature.
Shorter heating times generally require greater average useful thermal power for the same heated mass and temperature increase.
Step 4: Calculate the Effective Heated Mass
The effective heated mass may be smaller than the entire component mass when only a local region is heated.
Use the dimensions and density of the actual heated region for preliminary calculations.
Step 5: Estimate Heating Energy
For a simplified sensible-heating calculation:
Q = m × Cp × ΔT
Where:
- Q = Useful thermal energy, kJ.
- m = Effective heated mass, kg.
- Cp = Approximate mean specific heat, kJ/kg·K.
- ΔT = Temperature increase, K.
Step 6: Engineering Calculation Example
Consider an illustrative steel component with an effective heated mass of 0.15kg.
Assume the component is heated from 25°C to 800°C, using a mean specific heat capacity of 0.55kJ/kg·K.
The theoretical useful thermal energy is:
Q = 0.15 × 0.55 × (800 − 25) = 63.94kJ
This is equivalent to approximately 0.01776kWh of useful thermal energy.
| Parameter | Value | Data Status |
|---|---|---|
| Material | Steel | Illustrative example |
| Effective Heated Mass | 0.15kg | Assumed |
| Initial Temperature | 25°C | Assumed |
| Target Temperature | 800°C | Assumed |
| Temperature Increase | 775K | Calculated |
| Mean Specific Heat | 0.55kJ/kg·K | Approximate assumption |
| Theoretical Thermal Energy | 63.94kJ | Calculated |
| Equivalent Thermal Energy | 0.01776kWh | Calculated |
Step 7: Compare Heating Time and Power
For the same theoretical thermal energy, average useful heating power depends on heating duration.
The table below also shows an illustrative electrical-input estimate using an assumed overall electrical-to-workpiece heating efficiency of 50%.
| Heating Time | Average Useful Thermal Power | Electrical Input at Assumed 50% Efficiency |
|---|---|---|
| 5 seconds | 12.79kW | 25.58kW |
| 10 seconds | 6.39kW | 12.79kW |
| 15 seconds | 4.26kW | 8.53kW |
| 20 seconds | 3.20kW | 6.39kW |
| 30 seconds | 2.13kW | 4.26kW |
Engineering Qualification: The values above are simplified calculations and do not represent actual DW-HF-15 measurements. They must not be compared directly with the machine’s published 15kW output without confirming the power-rating boundary and actual heating efficiency.
Step 8: Select the Induction Coil
Select an induction coil according to workpiece geometry, heating-zone dimensions, mechanical clearance and required heating pattern.
The coil must also be compatible with the generator’s operating frequency and resonant matching system.
Step 9: Verify Cooling and Electrical Supply
Confirm rated input current, voltage tolerance, electrical protection, coolant flow, pressure, water quality and temperature limits.
Do not select cables or circuit breakers solely from the nominal 15kW product name.
Step 10: Validate the Heating Process
For production applications, perform a representative heating test using the actual workpiece.
Record material, dimensions, heating time, electrical input, operating frequency, temperature and relevant quality results.
Published HLQ Application Reference
HLQ has published a separate carbide-tool brazing application using a DW-UHF-20kW induction system.
The application reports approximately 11.5kW of applied power and 10 seconds to brazing temperature for carbide-tip replacement.
This demonstrates a related induction brazing process, but it is not a DW-HF-15 test and does not establish identical performance for this model.
See the induction brazing carbide tips application for the original process description.
Recommended Factory Acceptance Test
| Test Item | Verification Method | Acceptance Requirement |
|---|---|---|
| Electrical Input | Measure voltage, current and power | Agreed supply limits |
| Output Power | Verify according to the manufacturer’s defined rating method | Approved rated performance |
| Operating Frequency | Record loaded operating frequency | Verified machine operating range |
| Heating Time | Measure representative heating cycles | Agreed time-to-temperature |
| Workpiece Temperature | Use a calibrated, suitable measurement method | Specified process temperature |
| Coil Compatibility | Verify electrical matching and operating clearance | Stable heating operation |
| Cooling Flow | Measure actual water flow | Approved minimum operating flow |
| Water Temperature | Measure inlet and return temperatures | Approved cooling conditions |
| Protection Functions | Test specified alarms and interlocks | Safe fault response |
| Application Quality | Perform relevant brazing, hardness or dimensional inspection | Agreed process acceptance criteria |
Advantages and Limitations
Advantages of the DW-HF-15 High Frequency Induction Heater
The DW-HF-15 can offer practical advantages for suitable localized heating applications when correctly matched to the workpiece.
| Advantage | Engineering Benefit |
|---|---|
| Compact Equipment | Suitable for localized heating stations with limited installation space |
| Single-Phase Supply | Can be installed where a suitable industrial 220V single-phase supply is available |
| Adjustable Heating Power | Supports different heating requirements within the rated operating range |
| Localized Heating | Allows energy to be directed toward a selected workpiece region |
| Different Coil Configurations | Supports different compatible component geometries |
| Fast Process Response | Electrical heating power can be adjusted during operation |
| No Direct Burner Flame | Does not require direct combustion at the heating station |
| Process Repeatability | Can support consistent operation when heating settings and positioning are controlled |
| Industrial Application Flexibility | Can be evaluated for brazing, hardening, annealing and shrink fitting |
Limitations and Engineering Considerations
| Limitation | Engineering Consideration |
|---|---|
| Limited Power Class | Larger loads or faster production may require higher-power equipment |
| Workpiece-Specific Coil | Different components may require different induction coils |
| Cooling Requirement | Water-cooled components require reliable coolant circulation |
| Electrical Supply Requirement | Full-load single-phase input current must be verified |
| Frequency Range Differences | Related HLQ pages publish inconsistent frequency values |
| Continuous-Duty Claims | Duty depends on ambient conditions, cooling and actual electrical load |
| Heating Depth | Frequency and heating time must match the material and geometry |
| Melting Capacity | No universal melting capacity can be established from the power rating alone |
| Process Validation | Critical applications require representative heating and quality testing |
Why Choose HLQ?
HLQ Induction Equipment Co., Ltd. supplies industrial induction heating equipment for brazing, hardening, forging, annealing, melting and other metalworking applications.
The DW-HF-15 belongs to HLQ’s high-frequency induction heating equipment range and is intended for suitable compact industrial heating operations.
Application-Based Equipment Selection
Machine selection can be based on workpiece material, dimensions, heating temperature, required cycle time and available electrical supply.
Induction Coil Configuration
Different induction coils can be evaluated according to the required heating zone and mechanical accessibility of the workpiece.
Industrial Heating Applications
The equipment can be considered for copper brazing, selected steel hardening, annealing, shrink fitting and other localized heating processes.
Process Integration
Depending on the supplied machine configuration, induction heating may be combined with suitable workpiece fixtures, cycle controls and production equipment.
Engineering Verification
For important industrial applications, performance should be validated using representative workpieces, defined heating parameters and agreed acceptance criteria.
10 Core FAQs
1. What is the DW-HF-15 high frequency induction heater?
The DW-HF-15 is a compact high-frequency induction heating machine designed for localized heating of electrically conductive metal components. Typical applications include brazing, small-part hardening, annealing, shrink fitting and industrial preheating.
2. What is the rated power of the DW-HF-15?
The target product page lists a maximum output of 15kW, adjustable from 3kW to 15kW. Other HLQ literature identifies related DW-HF-15 equipment using a 15kVA rating. The exact input and output definitions should be confirmed for the supplied model.
3. Does the DW-HF-15 use single-phase electricity?
Yes. The original product page specifies single-phase 220V AC, 50/60Hz input. The published working-voltage range is 180–250V. The full-load input current and electrical protection requirements must be verified before installation.
4. What is the operating frequency of the DW-HF-15?
The target product page lists 10–80kHz. Other related HLQ pages publish 30–80kHz or 30–100kHz. The correct frequency range should be confirmed from the technical specification of the supplied machine.
5. Can the DW-HF-15 braze copper tubes?
Yes, it can be considered for suitable copper tube brazing operations. The actual performance depends on tube diameter, wall thickness, fitting geometry, brazing filler, induction coil and required heating time.
6. Can the DW-HF-15 harden steel shafts?
It can be considered for localized hardening of suitable small steel parts. Final hardness and case depth depend on material grade, austenitizing conditions, heating time and quenching. Application testing is required.
7. Does the DW-HF-15 need cooling water?
Yes. The original product page lists a cooling-water flow of 5 L/min. It also provides pressure and temperature references that require clarification. The cooling system must satisfy the manufacturer’s verified operating requirements.
8. Can the DW-HF-15 operate continuously?
The target product page claims a 100% continuous load rate, while another related page identifies an 80% duty rating. Actual continuous-duty capability must be verified for the selected machine, load, cooling conditions and ambient temperature.
9. Can one induction coil heat different metal components?
Sometimes, when the workpieces have compatible dimensions and heating requirements. However, different shapes, materials and heating zones often require different induction coils for effective electromagnetic coupling and repeatable results.
10. How do I select the correct induction heating machine?
Specify the material, workpiece dimensions, effective heated mass, initial and target temperatures, required heating time, production rate, electrical supply and cooling conditions. The equipment should then be selected through engineering calculations and, where necessary, representative heating tests.
