The DW-HF-15kW Induction Heating Equipment is a compact high-frequency induction heater designed for small and medium metal heating applications, including brazing, soldering, hardening, annealing, tempering, shrink fitting and localized preheating. With a 15kVA output, 30–80kHz oscillation frequency and single-phase 220V input, it is suitable for workshops, repair departments, tool rooms, laboratories and small-batch production lines. It helps users achieve fast, clean and controllable non-contact heating with lower oxidation, reduced flame risk and better repeatability compared with traditional gas heating.
Quick Answer
The DW-HF-15kW Induction Heating Equipment is a 15kVA high-frequency induction heating machine for precise heating of small metal parts. It is best suited for copper and brass brazing, carbide tool brazing, small shaft hardening, fastener heating, small bearing heating, annealing, soldering and shrink fitting. The machine uses electromagnetic induction to generate heat directly inside the workpiece, allowing fast heating, localized temperature control, clean operation and improved production efficiency.
Product Overview
The DW-HF-15kW induction heating machine is part of the high-frequency induction heating equipment range. It is designed for users who need a compact, easy-to-operate and flexible metal heating system without using open flame or resistance furnace heating. The equipment is especially useful for applications where only a small area of the part needs to be heated quickly and accurately.
In many workshops, gas torches are still used for brazing, soldering, loosening, preheating or repair heating. However, flame heating often causes uneven temperature, oxidation, safety risks and operator-dependent quality. Induction heating solves these problems by heating the metal through an electromagnetic field. The heat is generated inside the workpiece itself, not transferred from an external flame. This makes the heating process faster, cleaner and more repeatable.
The DW-HF-15kW model is suitable for small components, thin-walled parts, copper tube joints, carbide tools, stainless steel fittings, brass connectors, small steel shafts, fasteners, small gears, bearings and localized heat treatment tasks. Its 30–80kHz frequency range makes it suitable for relatively shallow and fast surface heating, which is common in brazing and small-part hardening applications.
Key Applications
1. Induction Brazing
The DW-HF-15kW induction heater is widely used for brazing copper, brass, steel, stainless steel and carbide components. Typical applications include copper tube brazing, brass fitting brazing, carbide tool brazing, diamond tool brazing, saw blade tip brazing, HVAC pipe brazing and small metal connector brazing.
2. Induction Hardening
For small shafts, pins, bushings, gear teeth and wear surfaces, the machine can be used for localized induction hardening. A custom induction coil heats the surface area rapidly, followed by water or polymer quenching to increase surface hardness and wear resistance.
3. Induction Annealing
The equipment can be used for annealing stainless steel tubes, copper parts, brass components, small springs, wires and formed metal parts. Annealing helps reduce hardness, improve ductility, remove stress and prepare parts for further forming or machining.
4. Induction Shrink Fitting
The machine can heat rings, sleeves, gears, bearings and small mechanical components for shrink fitting. Heating expands the outer component, allowing easy assembly onto a shaft or mating part. After cooling, the part contracts and forms a tight interference fit.
5. Induction Soldering
For small electrical parts, terminals, connectors and precision metal joints, high-frequency induction heating provides fast and localized soldering with reduced thermal damage to surrounding areas.
6. Localized Preheating
The DW-HF-15kW unit can be used for local preheating before welding, bending, forming or mechanical assembly. It is useful when the heating zone is small and must be controlled accurately.
Suitable Materials
| Material | Typical Applications | Heating Suitability |
|---|---|---|
| Copper | Copper tube brazing, electrical connectors, busbars | Suitable, but requires proper coil design because copper has high thermal conductivity. |
| Brass | Valves, fittings, connectors, plumbing parts | Very suitable for brazing and localized heating. |
| Carbon Steel | Shafts, pins, fasteners, small mechanical parts | Excellent heating response, suitable for hardening, annealing and preheating. |
| Alloy Steel | Tools, gears, wear parts, machine components | Suitable for hardening, tempering and heat treatment. |
| Stainless Steel | Fittings, tubes, medical parts, food-grade parts | Suitable, but heating speed depends on grade and magnetic properties. |
| Carbide | Cutting tools, drill bits, saw blades, mining tools | Usually heated together with steel holders for brazing applications. |
| Aluminum | Small fittings and special brazing applications | Possible, but requires careful temperature control and suitable coil design. |
Working Principle

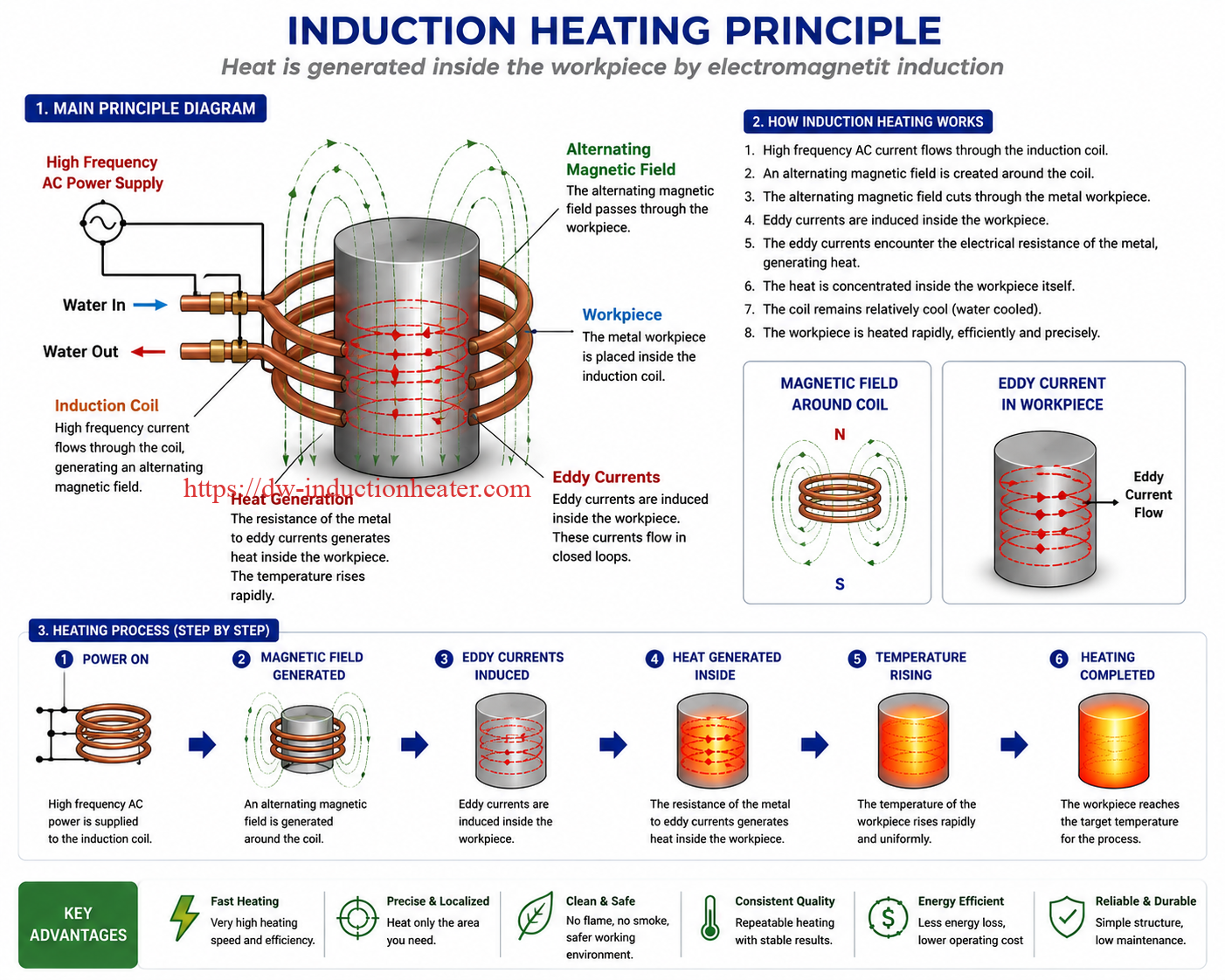

The DW-HF-15kW induction heating equipment works by electromagnetic induction. When high-frequency alternating current flows through the induction coil, an alternating magnetic field is created around the coil. When a conductive metal workpiece is placed inside this magnetic field, eddy currents are induced in the workpiece. These eddy currents generate heat due to the electrical resistance of the metal.
Unlike flame heating, induction heating does not require direct contact between the heat source and the workpiece. The coil remains relatively cool because it is water-cooled, while the metal part heats rapidly. This allows precise and localized heating, which is especially important for brazing, hardening and shrink fitting.
The heating result depends on several engineering factors: coil shape, coil-to-part distance, frequency, power level, material type, part size and heating time. A correctly designed induction coil can concentrate heat exactly where it is needed, improving quality and reducing energy waste.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Model | DW-HF-15kW | High-frequency induction heating equipment |
| Rated Output Power | 15kVA | Suitable for small and medium metal heating tasks |
| Input Power | Single-phase 220V, 50/60Hz | Convenient for workshops and small production areas |
| Oscillation Frequency | 30–80kHz | Suitable for high-frequency localized heating |
| Duty Cycle | 80% at 30°C | Recommended to ensure stable cooling and long service life |

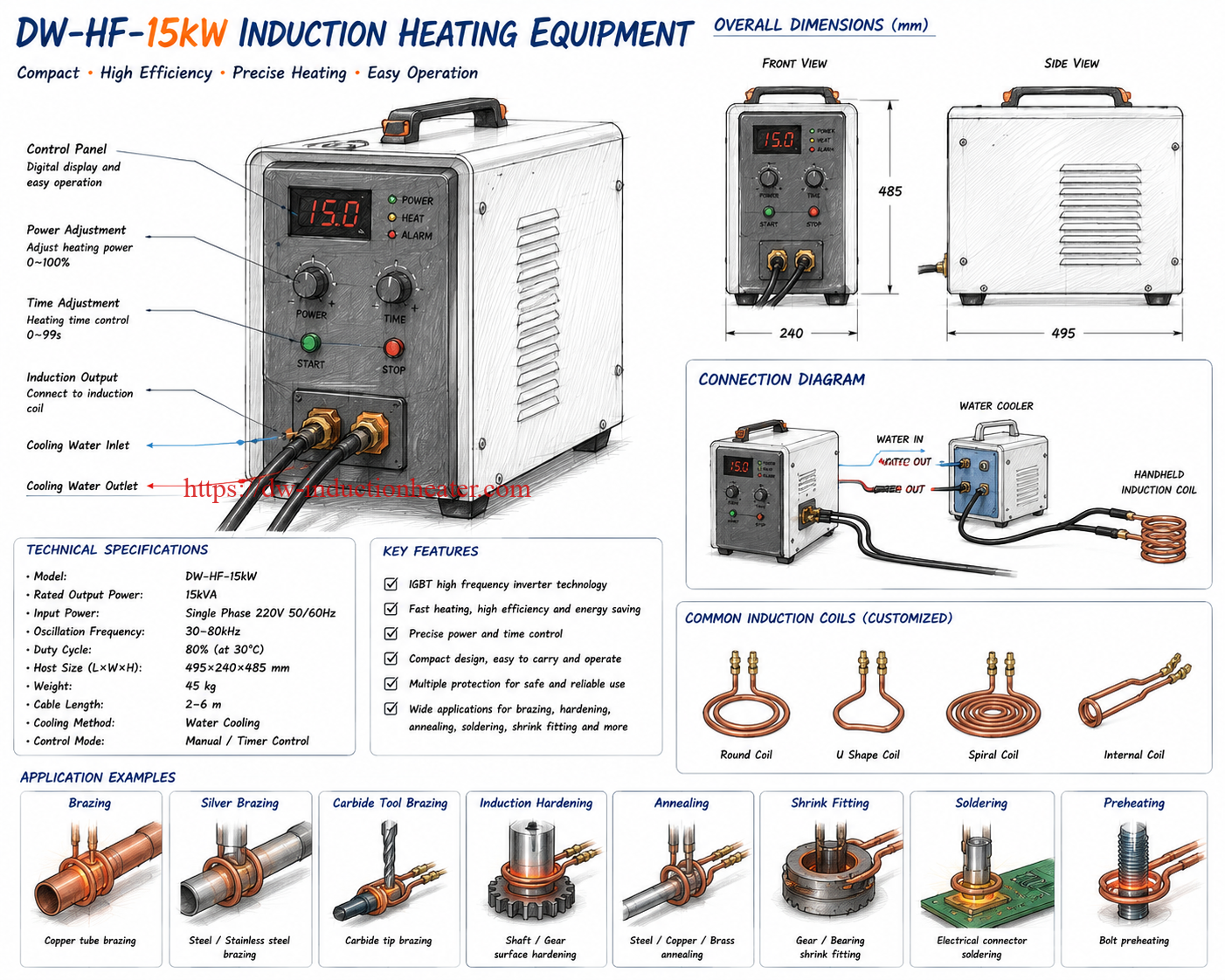

| Host Size | 495 × 240 × 485mm | Compact design for limited workshop space |
| Approx. Weight | 45kg | Easy to move compared with large induction systems |
| Cable Length | 2–6m | Allows flexible positioning of the heating head |
| Cooling Method | Water cooling | Cooling water is required for coil and power components |
| Control Mode | Manual or timer-controlled heating | Timer function improves repeatability for batch work |
Recommended Applications
| Application | Typical Workpiece | Recommended Coil Type | Process Notes |
|---|---|---|---|
| Copper Tube Brazing | HVAC tubes, refrigeration pipes, copper joints | U-shaped coil or ring coil | Use proper brazing alloy and flux; avoid overheating thin copper tubes. |
| Carbide Tool Brazing | Cutting tools, drill bits, saw blades | Flat coil or profile coil | Control temperature to prevent carbide cracking and poor filler flow. |
| Small Shaft Hardening | Small shafts, pins, bushings | Single-turn or multi-turn round coil | Quench immediately after heating to obtain surface hardness. |
| Annealing | Stainless tubes, copper parts, brass parts | Round coil or tunnel coil | Control heating temperature to avoid melting or excessive oxidation. |
| Shrink Fitting | Bearings, sleeves, small gears, rings | Internal or external ring coil | Heat the outer component evenly for safe assembly. |
| Fastener Heating | Bolts, nuts, threaded parts | Helical coil | Useful for loosening, forming or heat treatment. |
Process Workflow
- Confirm the workpiece material and heating purpose. Different materials and applications require different temperatures and coil designs.
- Select the correct induction coil. The coil should match the part shape and heating area.
- Connect cooling water. Ensure stable water flow before starting the machine.
- Set heating power and time. For batch production, timer control improves repeatability.
- Place the workpiece inside or near the coil. Keep a proper and consistent gap between the coil and the workpiece.
- Start induction heating. Observe heating color, temperature or process time according to the application.
- Complete brazing, hardening, annealing or assembly. Apply filler metal, quench medium or assembly pressure when required.
- Inspect the result. Check joint quality, hardness, fit, surface condition or dimensional change.
Induction Coil Selection
The induction coil is the key tool that determines heating efficiency and process quality. For the DW-HF-15kW machine, the coil should be designed according to workpiece size, heating area, material and production method.
| Coil Type | Best Application | Engineering Notes |
|---|---|---|
| Round Coil | Shafts, pins, tubes, bolts | Provides uniform heating around cylindrical parts. |
| U-Shaped Coil | Pipe joints, local brazing, side heating | Easy to load and unload workpieces. |
| Flat Spiral Coil | Flat surfaces, tool tips, small plates | Good for surface heating and brazing flat components. |
| Profile Coil | Special-shaped parts | Customized to follow the workpiece geometry. |
| Internal Coil | Holes, sleeves, inner surfaces | Used for internal heating or bore heating applications. |
Common Problems and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Heating is too slow | Coil gap too large, wrong coil design, insufficient power setting or oversized workpiece | Reduce coil gap, redesign coil, increase power or select a larger induction heater. |
| Workpiece overheats | Heating time too long, power too high or poor temperature control | Reduce heating time, lower power and use timer or temperature monitoring. |
| Brazing filler does not flow well | Insufficient temperature, dirty surface, wrong filler metal or uneven heating | Clean the joint, select suitable filler, improve coil design and optimize heating time. |
| Hardening result is not stable | Uneven coil gap, inconsistent heating time or unstable quenching | Use fixture positioning, timer control and consistent quenching method. |
| Coil becomes hot | Cooling water insufficient, blocked coil or poor water quality | Check water flow, clean the coil and use proper cooling water circulation. |
| Machine alarms or stops | Overcurrent, water shortage, overheating or incorrect connection | Check cooling, workpiece position, coil connection and operating parameters. |
Engineering Selection Guide
Before choosing the DW-HF-15kW induction heating equipment, buyers should confirm whether the machine power and frequency are suitable for their workpiece. This model is ideal for small and medium parts, especially where fast localized heating is required. If the workpiece is large, thick, highly conductive or requires deep heating, a higher-power model may be more suitable.
Choose DW-HF-15kW When:
- The workpiece is small or medium-sized.
- The heating area is local, not the entire large part.
- The application is brazing, soldering, small-part hardening, annealing or shrink fitting.
- The workshop has single-phase 220V power available.
- The user needs compact equipment with simple operation.
- The production is small-batch, repair-based or semi-automatic.
Consider a Larger Model When:
- The workpiece diameter or mass is large.
- The required heating depth is high.
- The production cycle time is very short.
- The application requires continuous heavy-duty operation.
- The heating area is long, thick or highly heat-conductive.
Advantages
- Compact structure: Easy to install and suitable for workshops with limited space.
- Fast heating: Heat is generated directly inside the metal workpiece.
- Clean operation: No open flame, less smoke and lower oxidation compared with gas heating.
- Localized heating: Only the required area is heated, reducing distortion and heat waste.
- Easy operation: Operators can quickly learn basic heating procedures.
- Timer control: Heating time can be set to improve repeatability in batch work.
- Flexible coil design: Coils can be customized for different parts and applications.
- Wide application range: Suitable for brazing, hardening, annealing, shrink fitting and soldering.
- Energy efficient: Direct induction heating reduces unnecessary heat loss.
- Improved workplace safety: Reduced flame risk and better process control.
Limitations
- The 15kW output is not suitable for very large or heavy workpieces.
- Cooling water must be stable and clean to protect the machine and coil.
- Different parts require different induction coils.
- Temperature control may require additional pyrometer or operator experience for precision processes.
- Highly conductive materials such as copper may require careful coil design and longer heating time.
- For deep hardening or large forging applications, a medium-frequency or higher-power system may be required.
Why Choose HLQ Induction Equipment?
HLQ Induction Equipment provides industrial induction heating solutions for brazing, hardening, annealing, forging, melting, shrink fitting and customized heat treatment applications. For the DW-HF-15kW model, HLQ can support customers with machine selection, coil design, application testing and process recommendations.
The value of an induction heater depends not only on the power supply, but also on correct application matching. HLQ can help users select the right power level, frequency range, coil shape, cooling method and operating parameters according to the actual workpiece. This helps improve heating quality, reduce trial-and-error time and achieve better production stability.
FAQ
1. What is the DW-HF-15kW induction heating equipment used for?
It is used for small and medium metal heating applications such as brazing, soldering, hardening, annealing, shrink fitting, preheating and localized heat treatment.
2. What power supply does this machine require?
The DW-HF-15kW model uses single-phase 220V, 50/60Hz input power.
3. What is the frequency range?
The oscillation frequency is 30–80kHz, which is suitable for high-frequency localized heating applications.
4. Can it be used for copper tube brazing?
Yes. It is suitable for copper tube brazing, brass fittings, HVAC pipe joints and small metal connectors when used with a proper induction coil and brazing material.
5. Can it harden steel parts?
Yes. It can be used for localized hardening of small shafts, pins, bushings, gear teeth and wear surfaces. For larger or deeper hardening requirements, a higher-power machine may be needed.
6. Does the machine need cooling water?
Yes. Stable cooling water is required to protect the induction coil and internal power components during operation.
7. Can one coil heat all types of parts?
No. The induction coil should be designed according to the shape, size and heating area of the workpiece. Different applications often require different coils.
8. Is the DW-HF-15kW suitable for batch production?
Yes, it can be used for small-batch and medium-batch production, especially when equipped with timer control, fixtures and consistent coil positioning.
9. What is the duty cycle of this machine?
The listed duty cycle is 80% at 30°C. Proper cooling and operating conditions should be maintained for stable long-term use.
10. How do I know whether 15kW is enough for my application?
You should provide the workpiece material, size, heating area, target temperature, required heating time and production capacity. HLQ can help evaluate whether 15kW is suitable or whether a larger model is recommended.
11. Can HLQ provide customized coils?
Yes. HLQ can design induction coils for brazing, hardening, annealing, shrink fitting and special heating applications according to your workpiece drawings or samples.
12. What information should I provide when requesting a quotation?
Please provide the material, dimensions, photos or drawings, heating purpose, target temperature, required cycle time, production quantity and available power supply.
