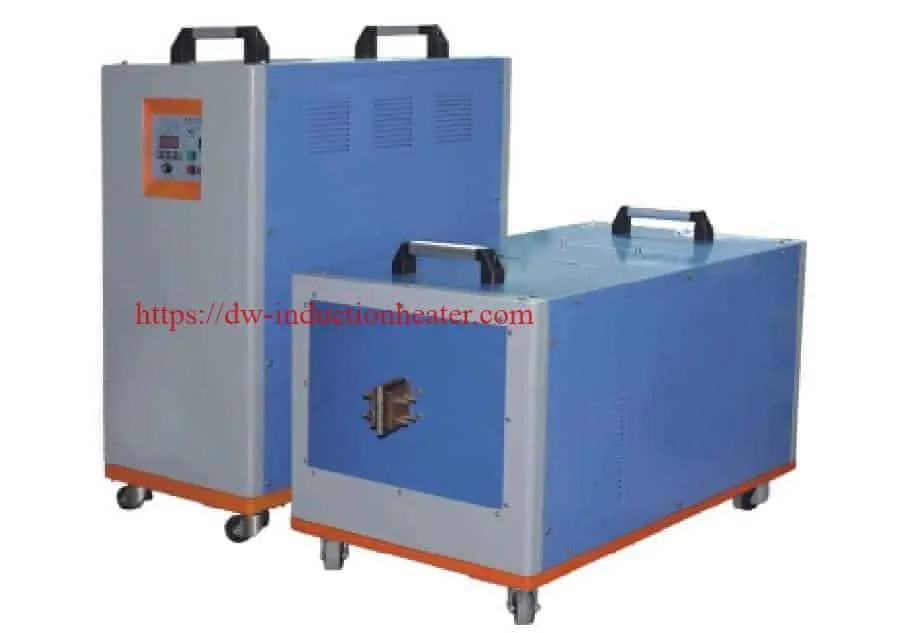

DW-HF-160KW Induction Heating Machine
Description
The top induction heating machines manufacturer and supplier for induction brazing process,industrial metal melting,induction forge,PWHT,induction preheat welding,shrink fitting,induction hardening surface,etc.
Main characteristics:
1. 100%duty sycle ,continuous working is allowed at maximum power output.
2. Light weight ,50-160KG only.
3. Constant current or constent power status can be selected accordingly to achieve higher heating efficiency.
4. Display of heating power and heating currentand oscillating frequency.
5. Auto-compensation circuit of frequency modulation and frequency,the function of digital high precise power starting improves greatly the Heating and Brazing stability.
Specificationsļ¼
| Model | DW-HF-160kw | |
| Input voltage | 380VĀ±10%, three phases,50 or 60Hz | |
| Input voltage range | 320-420V | |
| Maximum input power | 160kw | |
| Duty cycle | 100% | |
| Output control mode | Constant current control | |
| Output oscillate frequency | 20-80KHz | |
| Resistance matching select | 1__4select or non-adjustable | |
| Heat oscillate current | 100-1260A | |
| CableĀ Ā lengthĀ fromĀ powerĀ generatorĀ to transformer | 2 meters | |
| Timing function Of DW-HF-160kw | Retain oscillate current | 100-1260A |
| Heating time | 0.1-99.9 seconds | |
| Retain time | 0.1-99.9 seconds | |
| weight | Generator | 80KG |
| HF transformer | 75KG | |
| size | Generator | 640x350x560 |
| HF transformer | 820x350x460 | |
| Cooling water pressure | >0.2MPa | |
| Cooling water temp. <40āļ¼104Ā°Fļ¼ | Cooling water flux >100L/min | |
