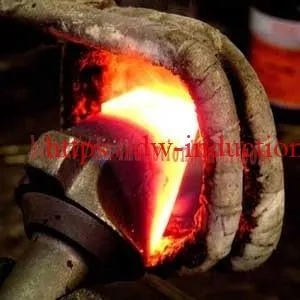

Electricmagnetic induction copper brazing machine

Category: induction brazing machine Tags: brazing copper pipe, copper brazing, copper brazing rod, copper steel brazing, copper wire brazing, Electricmagnetic induction brazing, high frequency copper brazing, induction blazer, induction brazing heater, induction copper brazing, Induction copper silver brazing

Description

Description

High quality Electricmagnetic induction copper brazing machine for copper brazing,copper wire joint,brazing copper rod,brazing copper to Aluminum,copper to steel,copper to silver,etc.

Main characteristics:

1. IGBT module and inverting technologies of the first generation been used.

2. Simple structure and light weight and easy for maintenance.

3. Simple to operat ,afew minutes is enough to learn it.

4. Simple to install,installation can be done by unprofessional person very easily.

5. advantages of the model with timer,the power and the operatingtime of the heating period and the rain period can be preset repectively,to realize a simple heating curve,this model is suggested to use for batch production to improve the repeatability.

6. The separated models are designed to fit the dirty surrounding of some cases.

Specifications：

Series	Model		Input power Max	Input current Max	Oscillate frequency	Input Voltage	Duty cycle
M . F .	DW-MF-15 Induction Generator		15KW	23A	1KHz-20KHz According to the application	3phases, 380V±10%	100%
	DW-MF-25 Induction Generator		25KW	36A
	DW-MF-35Induction Generator		35KW	51A
	DW-MF-45 Induction Generator		45KW	68A
	DW-MF-70 Induction Generator		70KW	105A
	DW-MF-90 Induction Generator		90KW	135A
	DW-MF-110 Induction Generator		110KW	170A
	DW-MF-160 Induction Generator		160KW	240A
	DW-MF-45 Induction Heating Rod Forging Furnace		45KW	68A	1KHz-20KHz
	DW-MF-70 Induction Heating Rod Forging Furnace		70KW	105A
	DW-MF-90 Induction Heating Rod Forging Furnace		90KW	135A
	DW-MF-110 Induction Heating Rod Forging Furnace		110KW	170A
	DW-MF-160 Induction Heating Rod Forging Furnace		160KW	240A
	DW-MF-15 Induction Melting Furnace		15KW	23A
	DW-MF-25 Induction Melting Furnace		25KW	36A
	DW-MF-35 Induction Melting Furnace		35KW	51A
	DW-MF-45 Induction Melting Furnace		45KW	68A
	DW-MF-70 Induction Melting Furnace		70KW	105A
	DW-MF-90 Induction Melting Furnace		90KW	135A
	DW-MF-110 Induction Melting Furnace		110KW	170A
	DW-MF-160 Induction Melting Furnace		160KW	240A
	DW-MF-110 Induction Hardening Equipment		110KW	170A
	DW-MF-160Induction Hardening Equipment		160KW	240A
H . F .	DW-HF-15 Series	DW-HF-15KW-A DW-HF-15KW-B	15KVA	32A	30-80KHZ	Single phase，220V	80%
	DW-HF-25 Series	DW-HF-25KW-A DW-HF-25KW-B	25KVA	23A		3*380V 380V±10%	100%
	DW-HF-35 Series	DW-HF-35KW-B	35KVA	51A
	DW-HF-45 Series	DW-HF-45KW-B	45KVA	68A
	DW-HF-60 Series	DW-HF-60KW-B	60KVA	105A
	DW-HF-80 Series	DW-HF-80KW-B	80KVA	130A
	DW-HF-90 Series	DW-HF-90KW-B	90KVA	160A
	DW-HF-120 Series	DW-HF-120KW-B	120KVA	200A
U . H . F .	DW-UHF-6.0KW-I		6.0KW	28A	1.1-2.0MHZ	Single phase，220V ±10%	100%
	DW-UHF-6KW-II		6.6KW	30A	200-700KHZ
	DW-UHF-6KW-III		6.6KW	30A	500-1100KHz
	DW-UHF-10KW		10KW	15A	100-500KHZ	3*380V 380V±10%	100%
	DW-UHF-20KW		20KW	30A	50-250KHZ
	DW-UHF-30KW		30KW	45A	50-200KHZ
	DW-UHF-40KW		40KW	60A	50-200KHZ
	DW-UHF-60KW		60KW	90A	50-150KHZ

[pdf-embedder url=”https://dw-inductionheater.com/wp-content/uploads/2018/09/HLQ-catalogue.pdf” title=”induction heating catalogue”]

Electricmagnetic induction copper brazing machine

Description

High quality Electricmagnetic induction copper brazing machine for copper brazing,copper wire joint,brazing copper rod,brazing copper to Aluminum,copper to steel,copper to silver,etc.
