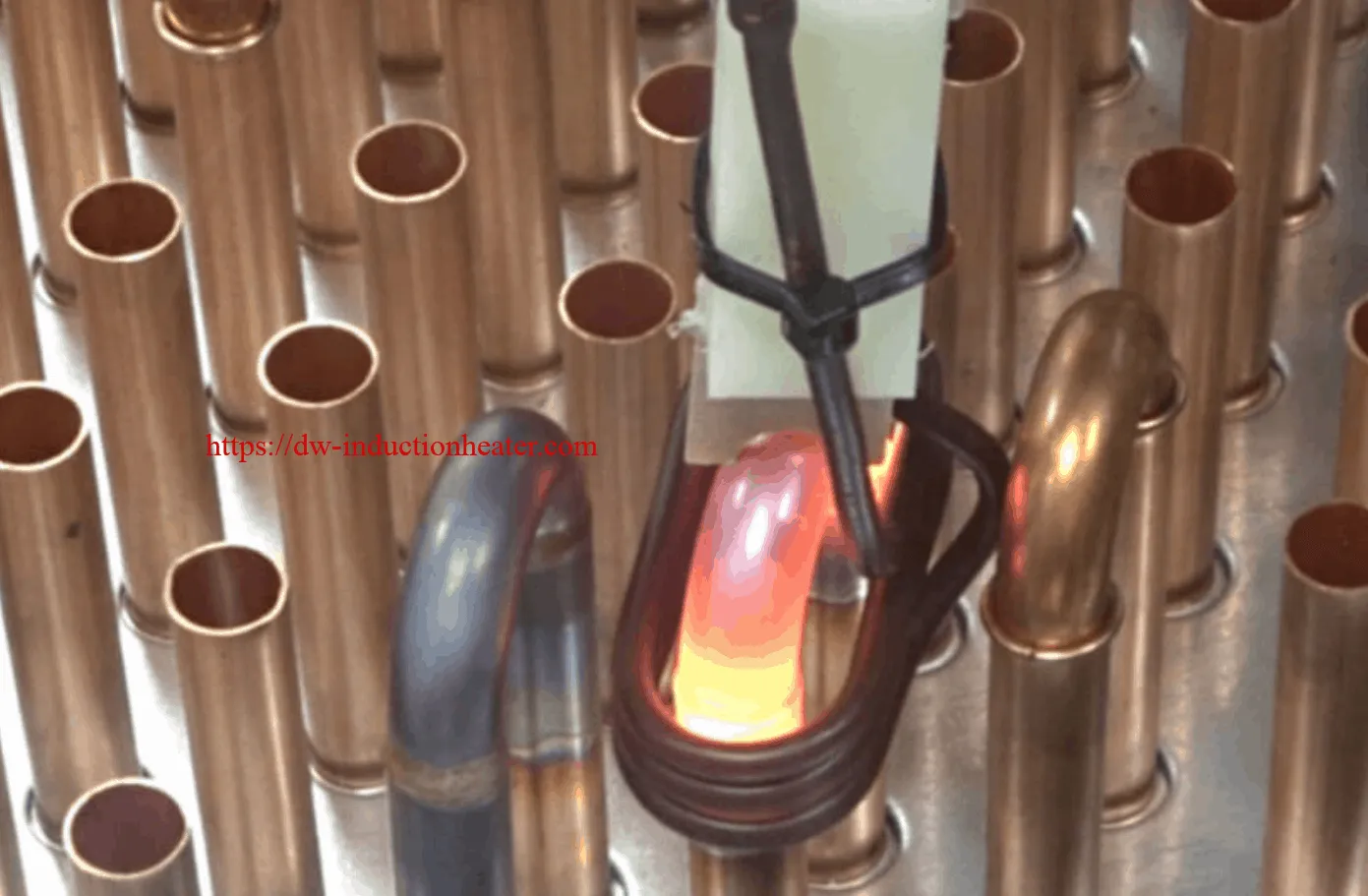

Brazing Copper Tube to Brass Fitting With Induction

Brazing Copper Tube to Brass Fitting With Induction

Objective: To use induction heating to braze a copper tube to a brass fitting using a preform braze wire. Processing is to occur under an atmosphere of Nitrogen and 4% Hydrogen gas. The braze preforms melt at 1190°F, but the parts need to be kept below 1300°F. The parts need to be processed at a rate of 175 to 200 per hour which translates into 18 seconds of heating time per part.

Material Copper Tubing Measuring 0.5″ OD and 2″ Long, Brass fitting, Braze Preform, No Flux.

Temperature Above 1190°F but not to exceed 1300°F

Frequency :300 kHz

Equipment: DW-UHF-10KW output solid state induction heating power supply with three (3) busses, eight (8) capacitors totaling 0.66 μF, and a unique four turn helical coil. Process The DW-UHF-10KW output solid state power supply along with a unique four turn helical coil were used to achieve the following results.

Results • The requested atmosphere was provided under a bell jar by supplying 95% Nitrogen/5%Hydrogen at a rate of 25-30 cfh. • A heating cycle of only 10 seconds was necessary to attain sufficient braze flow which surpasses the required limit of 18 seconds.

Brazing Copper Tube with Induction

Brazing Copper Tube with Induction

Objective: To braze a copper tube ( 3/8″ OD by 2-4″ long) into a 3/8″ fitting in less than 10 seconds. Heating must take place in a channel type coil to allow for easy loading of parts.

Material Copper Tubing and Fitting with Braze and Stay Silv White Flux

Temperature 1300°F

Frequency 215 kHz

Equipment DW-UHF-10kw output solid state induction power supply equipped with a standard heat station containing eight 0.33 μF capacitors for a total of 0.66μF, a step down transformer, and a specifically designed induction heating coil.

Process DW-UHF-10kw solid state induction power supply was setup to achieve the following results: · 2.0 kW of power was directly loaded into the copper tube resulting in a heating time of 7.2 seconds to reach the necessary 13000F for brazing.

Results& Processing ease was achieved through the design of a unique channel type coil comprised of three turns of 1/8″ copper.
