High Frequency Heating Furnace
Description
High quality and Top IGBT Small High Frequency Heating furnace manufacturer and supplier in China
Characteristics of HF high frequency heating ย Furnace
ย ย ย 1.ย Better Heating penetration and even temperature inside the melting metal.
ย ย ย 2. ย HF field force can stir the meltingย pool to achieve better melting quality.
ย ย ย 3.ย ย Melting the Maximum quantity by the recommend machine according to above table the meltingtime is 30-50minutes,the first melting whenthe furnaceย is cold ,and it will take about 20-30minutes for the later meltingย when the furnace is already hot.
ย ย ย 4.ย Suitable for melting of steel,cooper,bronze,gold,silver and aluminum,stannum,maqnesium,stainless steel.
Specifications๏ผ
| Model | DW-MF-15 | DW-MF-25 | DW-MF-35 | DW-MF-45 | DW-MF-70 | DW-MF-90 | DW-MF-110 | DW-MF-160 |
| Input power max | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
| Input voltage | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V |
| Input power desire | 3*380 380Vยฑ20% 50ย or 60HZ | |||||||
| Oscillate frequency | 1KHZ-20KHZ,according to the application ,normal about4KHZใ8KHZใ11KHZใ15KHZใ20KHZ | |||||||
| Duty cycle | 100%24hours work | |||||||
| Weight | 50KG | 50KG | 65KG | 70KG | 80KG | 94KG | 114KG | 145KG |
| Cubage(cm) | 27(W)x47(H)x56(L)cm | 35x65x65cm | 40x88x76cm | |||||

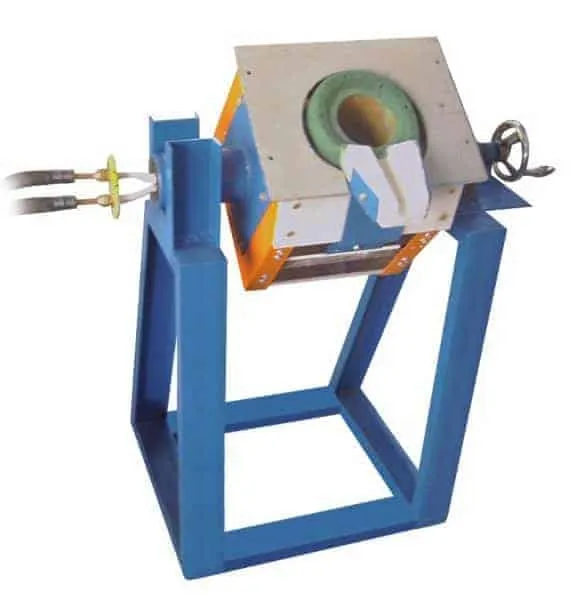

Main parts of the high frequency induction metals melting furnace system :
ย ย 1.ย M.F Induction Heating Generator.
ย ย 2.ย ย Melting Furnace.
ย ย 3.ย Compensation Capacitor
Machine models and maximum melting ability๏ผ
| Model | Steel and Stainless Steel | Gold,Silver | Aluminium |
| DW-MF-15 15KWMelting Furnace | 5KG or 10KG | 3KG | |
| DW-MF-25 25KW Melting Furnace | 4KG or 8KG | 10KG or 20KG | 6KG |
| DW-MF-35 35KW Melting Furnace | 10KGย or 14KG | 20KG orย 30KG | 12KG |
| DW-MF-45 45KW Melting Furnace | 18KGย or 22KG | 40KG orย 50KG | 21KG |
| DW-MF-70 70KW Melting Furnace | 28KG | 60KG orย 80KG | 30KG |
| DW-MF-90 90KW Melting Furnace | 50KG | 80KG orย 100KG | 40KG |
| DW-MF-110 110KW Melting Furnace | 75KG | 100KG orย 150KG | 50KG |
| DW-MF-160 160KW Melting Furnace | 100KG | 150KG or 250KG | 75KG |
