Magnetic Deburring & Polishing Machine for Precision Metal Parts

What Is the Magnetic Deburring & Polishing Machine?

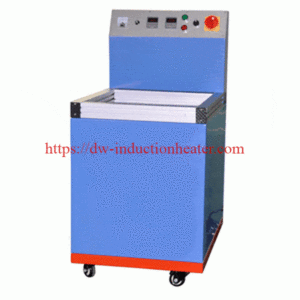

The HLQ Magnetic Deburring & Polishing Machine is a batch-finishing system that moves small magnetically responsive stainless-steel pins through a nonmagnetic processing bowl by means of a changing magnetic field. The moving pins contact accessible workpiece surfaces to reduce fine machining burrs, clean light surface residues and improve appearance. It is best suited to small, intricate parts such as CNC-turned fittings, stamped clips, jewelry findings, small precision hardware and components with reachable cross-holes or recesses. This is magnetic pin finishing, not induction heat treatment or heavy grinding. Suitability, dimensional stability and the actual finishing time must be established by tests on production-representative parts.

Product at a Glance

Buyer Question Engineering Answer
Primary process Magnetic pin deburring, light polishing and surface cleaning
Driving mechanism Changing magnetic field moves the finishing pins
Typical workpieces Small precision metal parts and some trial-qualified rigid plastics
Published processing-time reference Approximately 5-20 minutes; not a guaranteed cycle
Main selection variables Part geometry, burr size, pin dimensions, batch mass, finishing acceptance criteria
Not suitable as a universal replacement for Heavy deburring, dimensional grinding or inaccessible blind-cavity finishing

Magnetic Pin Finishing vs. Conventional Grinding

Property Magnetic Pin Finishing Conventional Grinding
Primary purpose Fine burr removal and surface refinement Controlled material removal and geometry generation
Contact medium Loose, magnetically moved stainless-steel pins Bonded abrasive wheel or tool
Best geometry Small parts, accessible complex details Accessible precision surfaces and profiles
Material removal Limited, geometry- and recipe-dependent Deliberate, often substantially greater
Typical verification Burrs, edge condition, contamination, surface finish Dimensions, form, roughness, grinding integrity

Key Applications

Magnetic pin finishing is most useful when the objective is repeatable light finishing of accessible features, rather than removal of large tabs, deep grooves or major machining defects.magnetic deburring & polishing2

Application Typical Workpiece Target Result Critical Validation
CNC machining Turned brass fittings, stainless-steel sleeves, small connectors Reduce minor edge and cross-hole burrs Measure burr height and critical dimensions
Stamping Small clips, washers, spring components Improve edges after light stamping Check edge radius and part distortion
Jewelry Findings, clasps, ornamental hardware Clean and brighten reachable features Protect fine details, soft metals and coatings
Watch and eyewear Micro fasteners, frames, small decorative parts Fine surface refinement Surface marking and tolerance retention
Electrical hardware Terminals and small conductive fittings Remove light burrs and residual dirt Cleanliness and functional contact surfaces
Medical instrument components Selected precision machined parts Pre-cleaning and light finishing Validated residues, particle limits and traceability
Small die-castings Zinc or aluminum miniature cast parts Improve light flash and appearance Soft-metal scratching; heavy flash may remain

magnetic deburring & polishing machineFor a closely related product overview, see HLQ’s
magnetic grinding machine for small precision components.

Suitable Materials

The workpiece does not need to be magnetic: the field drives the finishing pins. However, magnetic workpieces, soft metals, plating, very thin sections and assembled parts may behave differently.magnetic deburring & polishing

Material Preliminary Suitability Engineering Risk Required Test
Austenitic stainless steel Often promising for fine burrs Surface marks, residual media, grade-dependent magnetism Burr and cleanliness inspection
Carbon steel Conditional Magnetic attraction, clumping, corrosion Batch movement and surface inspection
Brass Often promising Edge rounding, discoloration Surface finish and dimensions
Copper Conditional Soft-metal scratches or excessive edge wear Gentle media and time trial
Aluminum alloys Conditional Surface marking and oxide behavior Appearance and functional tolerances
Gold / silver alloys Often considered for jewelry finishing Soft surfaces, plating or gemstone damage Cosmetic acceptance sample
Rigid engineering plastics Case-specific Scratching or edge damage Part-specific feasibility trial
Coated / plated components Restricted pending qualification Coating wear, discoloration, delamination Coating thickness and adhesion check
Sealed assemblies / bearings Generally avoid without detailed review Liquid ingress and retained magnetic media Assembly-level risk assessment

Which Features Need Special Attention?

Feature Potential Benefit Main Limitation
Open slots and grooves Multiple pin-contact directions Local media stagnation or edge wear
Cross-holes Fine burr reduction at intersections Pin circulation may be uneven
Threaded holes Light crest/root cleaning Pin entrapment and functional thread change
Deep blind holes Possible if geometry permits circulation Bottom burr may remain; pins may become trapped
Thin edges Fine burr removal Excessive edge rounding or bending

Working Principle

A changing magnetic field drives magnetically responsive stainless-steel pins inside a processing bowl. In water and an approved finishing compound, the moving pins rotate, tumble and make repeated low-mass contacts with reachable part surfaces. The contacts can reduce fine burrs and light surface residue. The published HLQ page does not establish whether the exact machine uses a rotating permanent-magnet drive or an electromagnet drive; the supplier should confirm the drive architecture and available adjustments.

Figure 1. Magnetic pin deburring – conceptual process principle (not a manufacturing drawing)
     NONMAGNETIC PROCESSING BOWL
    +-----------------------------+
    | Water + finishing compound  |
    |  [PART]  - - -  [PART]      |
    |    ^  stainless-steel pins  |
    |    |  moving and rotating   |
    +-----------------------------+
            changing magnetic field
                     ^
             MAGNETIC DRIVE
                     ^
             CONTROLLER / TIMER

Process Variables and Their Effects

Variable Likely Effect Recommended Control
Pin diameter Access to openings; contact characteristics Validate against smallest hole and escape path
Pin length Mobility in slots and intersections Check bridging and trapping risk
Pin material Magnetic response and contamination behavior Confirm grade, wear and cleanliness
Drive intensity Pin agitation and contact energy Use qualified settings; do not assume model range
Batch mass Media circulation and part collisions Keep approved loading quantity constant
Water / compound Lubrication, residue transport, corrosion control Approved chemical concentration and rinsing
Cycle duration Extent of finishing and potential wear Choose shortest validated cycle

Technical Specifications

Data integrity note: HLQ publishes the process description and an indicative 5-20 minute cycle on this product page, but does not publish numeric model ratings. Unlisted values remain “not published” rather than being inferred from induction-heating machines.

Parameter Specification Notes
Product name Magnetic Deburring & Polishing Machine HLQ published product designation
Finishing method Magnetically driven stainless-steel pins Low-stock-removal surface finishing
Primary functions Fine deburring, polishing and cleaning Effect varies by part geometry and recipe
Published reference cycle Approximately 5-20 minutes Not a guaranteed result or full batch cycle
Suitable workpiece examples Jewelry, lathe parts, stampings, small castings, precision hardware Requires representative part testing
Drive type Not published Permanent-magnet or electromagnet design must be confirmed
Rated electrical input power Not published Request model-specific kW/W value
Supply voltage / phase Not published Confirm destination-country compatibility
Mains frequency Not published Do not confuse with magnetic drive speed
Magnetic drive speed / frequency Not published Request available adjustable range
Processing bowl working volume Not published Request usable volume and dimensions
Maximum qualified batch mass Not published Determine by sample trials, not bowl volume alone
Pin diameter, length and grade Not published Confirm supplied media kit
Liquid / compound requirements Not specified in numeric detail Use compatible supplier-approved chemistry
Timer settings Adjustability claimed; numerical range not published Confirm controller specification
Machine dimensions and mass Not published Request installation drawing
Safety interlocks Not detailed Verify guarding, emergency stop and protection
Guaranteed surface finish Not published Measure agreed Ra/Sa and appearance

InfoRecommended Model Selection

Because HLQ’s page does not list named variants or motor wattages, the matrix below is an engineering RFQ framework, not a verified model-price list. Here “recommended power” means the criterion for obtaining the correct power rating from the supplier; “frequency” refers to magnetic-drive characteristics if relevant, not induction-heating kHz.magnetic deburring & polishing 3

Application Material Recommended Power Frequency
Jewelry findings, small decorative parts Brass, silver and selected plated alloys Select rated machine power after a low-load sample trial Verify controllable magnetic-drive settings
Turned fittings with cross-holes Stainless steel, brass Size for qualified pieces/batch and bowl working volume Confirm drive specification and recipe adjustability
Fine stamped clips Carbon steel, stainless steel Choose by tested batch mass and collision risk Confirm speed/intensity range with manufacturer
Miniature die-castings Aluminum or zinc alloys Choose after scratch and surface-damage trial Use gentle, qualified magnetic agitation settings
Higher-volume precision finishing Sorted compatible parts Match motor rating, effective batch load and output target Request actual drive data for selected model

Machine-Sizing Inputs

Required Input Buyer Supplies Selection Impact
Component size Length, width, thickness and drawing Bowl fit and part mobility
Smallest feature Minimum bore, slot width and depth Pin access and retention risk
Batch load Pieces and kg per production batch Working volume and magnetic drive capacity
Defect Burr location, maximum burr height, photos Finishing feasibility
Finish specification Appearance sample, Ra/Sa, edge condition Process endpoint
Electrical supply Voltage, phase, mains frequency Correct rated machine configuration

Compare the magnetic grinding and polishing equipment category before specifying a model.

Process Workflow

Do not rely on a bright exterior appearance as proof that an internal burr has been removed. Production release should use measurable acceptance criteria.

Figure 2. Qualification and production workflow
  INSPECT MATERIAL + BURR LOCATION
                |
                v
  SELECT PINS + LIQUID + BATCH MASS
                |
                v
  SET TEST RECIPE (TIME / DRIVE)
                |
                v
  RUN MAGNETIC PIN FINISHING
                |
                v
  SEPARATE AND ACCOUNT FOR PINS
                |
                v
  RINSE / DRY / CLEAN COMPONENTS
                |
                v
  INSPECT BURRS + DIMENSIONS + FINISH
          /             \
       FAIL             PASS
        |                 |
        v                 v
  ADJUST RECIPE      RELEASE BATCH
  AND RETEST
Step Operator Check Record
Incoming Part ID, material, burrs and geometry Baseline photos / sample IDs
Loading Batch weight, pin mass, water and compound Recipe and batch ID
Finishing Drive condition and timer Actual process time
Pin separation No retained or trapped media Accountability and inspection result
Post-clean Water and chemical residues Rinse and drying record
Release Burr, geometry, surface and cleanliness criteria Pass/fail by approved method

Coil and Fixture Design

Technical distinction: This product is not an induction-heating machine, and a water-cooled heating coil is not an assumed part of its finishing process. The relevant engineering elements are the magnetic drive, nonmagnetic processing bowl, pin media, workpiece separation arrangements and post-process media recovery. An electrical coil is relevant only if the supplier confirms an electromagnet-based drive.

Magnetic Pin and Fixture Design Checks

Component Design Requirement Failure if Incorrect
Pin diameter Compatible with feature openings and removal path Feature inaccessible or pin trapped
Pin length Compatible with blind bores and cross-holes Bridging or entrapment
Pin alloy / magnetism Compatible with drive and contamination limits Weak motion, corrosion or contamination
Bowl material Compatible with changing magnetic field and process liquid Interference or chemical wear
Part fixture Prevents damaging collisions when needed Impact marks and distortion
Media separator Allows reliable pin recovery Residual foreign material
Cover / guarding Prevents access to moving media and liquid during operation Operator exposure

Internal-Feature Decision Table

Feature Access Risk Recommended Acceptance Test
Open external edge Lower, if part movement is adequate Burr-height and edge-radius check
Cross-drilled hole Moderate Microscope check at hole intersection
Threaded blind hole High Internal inspection and thread function test
Deep blind cavity High Verify bottom feature and zero retained pins
Thin-walled micro-part Variable Dimensional deformation and scratch check

Control System and Automation

The original HLQ product page describes adjustable operation, timing and a finishing reminder, but does not provide the numeric controller limits or a complete I/O schedule. Advanced automation functions should be treated as options requiring quotation confirmation.

Function Engineering Purpose Evidence Required
Cycle timer Repeatable finishing duration Approved range and resolution
Drive intensity / speed Match agitation to part sensitivity Documented settings and operating limits
Direction / reversal Improve distribution if supported Confirm actual available feature
Batch recipe Repeat settings by component Controller capability or external record
End-of-cycle indication Operator scheduling Confirm audible/visual reminder
Guarding and stop Operator protection Safety acceptance test
Production data logging Batch traceability Optional integration only if offered

Recommended KPIs

KPI Unit Acceptance Basis
Residual burr height mm or micrometers Drawing or agreed sample
Surface roughness Ra or Sa, micrometers Defined measurement area and method
Critical dimension drift mm Drawing tolerance
Retained finishing pins Count Zero where required
Accepted parts per batch Pieces Qualified production yield
Total batch time min Finishing + handling + cleaning + inspection

For related finishing searches, see HLQ’s
magnetic polishing machine applications.

Common Problems and Solutions

Problem Probable Cause Recommended Corrective Action
Burr remains in cross-hole Inadequate pin access or dwell Confirm geometry; test pin size, orientation and time
Blind-hole bottom unfinished Insufficient media circulation Inspect the actual bottom; assess alternative deburring process
Part has scratches High drive intensity, collisions or damaged media Reduce load/intensity; inspect media and separate parts
Edges become too round Overprocessing Reduce process time; measure edge condition
Parts stick or cluster Ferromagnetic attraction Decrease batch, change fixture, test feasibility
Pins remain in threads Media dimensions match trapping features Change pin specification and add mandatory recovery check
Discoloration Incorrect compound or poor rinse Use compatible chemistry; review rinse/dry process
Surface not sufficiently bright Wrong process recipe or unrealistic target Measure required finish; test recipe or alternative polishing method
Batch-to-batch inconsistency Changing mass, chemistry or time Standardize recipe and log every run
Heavy flash remains Defect beyond light-finishing capability Use mechanical pre-deburring before magnetic polishing
Low production output Long cleaning, media removal or inspection Measure whole-batch cycle and optimize handling
Post-process corrosion Wet storage or incompatible cleaning solution Validated rinsing, drying and material-compatible treatment

Engineering Selection Guide

Begin with the desired measurable finished part, not a machine wattage or an advertising claim of “no dead angle.” A bright outer surface does not prove that the required internal burr has been removed.

1. Define the Acceptance Specification

Specification Buyer Defines Measurement
Residual burr Maximum height / prohibited locations Optical inspection or suitable profilometry
Functional edge Required radius or edge-break tolerance Optical profile / approved gauge
Surface finish Specified Ra/Sa or appearance standard Profilometer and representative reference samples
Critical geometry Diameters, threads, flatness and dimensions CMM, gauge or metrology method
Cleanliness Particle and chemical limits Validated cleaning / inspection method
Media recovery No trapped pins in critical features Agreed visual, magnetic or functional inspection

2. Calculate Actual Production Throughput

Good parts per hour = 60 x accepted parts per batch / total batch cycle time in minutes.
The total cycle includes loading, magnetic finishing, pin separation, rinsing, drying and inspection.

Scenario Accepted Parts / Batch Finishing Time Handling + QC Total Cycle Calculated Parts / Hour
A 20 5 min 5 min 10 min 120
B 40 10 min 5 min 15 min 160
C 60 15 min 7 min 22 min 164
D 80 20 min 10 min 30 min 160

These values are illustrative arithmetic examples, not measured HLQ machine throughput.
Only acceptable, fully cleaned parts count toward good output.

Figure 3. Illustrative total cycle comparison (not a performance guarantee)
Scenario A  |#####-----|              10 min
Scenario B  |##########-----|         15 min
Scenario C  |###############-------|  22 min
Scenario D  |####################----------| 30 min

# = magnetic finishing minute
- = combined handling / QC minute

3. Validate a Four-Step Trial Matrix

Trial Finishing Time Controlled Variables Decision
1 5 min Same pins, parts, water, compound and drive Check fine-burr reduction and damage
2 10 min Change only process time Compare incremental improvement
3 15 min Change only process time Check diminishing returns and edge rounding
4 20 min Only if previous trials remain within limits Check overprocessing and media retention

Choose the shortest repeatable cycle meeting the acceptance specification. Then repeat it on multiple real-production batches, including the most difficult part geometry.

4. Qualification and Cost Factors

Cost Element Engineering Consideration
Equipment Model price, accessories, installation and guarding
Utilities Electrical power, water and approved finishing chemistry
Labor Loading, unloading, media separation and inspection
Consumables Pin replacement, liquid/compound and filters
Quality loss Rejects from scratches, dimensional changes or incomplete burr removal
Downtime Cleaning, routine service and media accountability

Advantages

Potential Advantage Buyer Benefit Qualification
Multi-directional media contact Can finish intricate accessible features Not every blind hole can be reached
Batch process Several compatible small parts per cycle Capacity must be verified
Light burr removal and brightening Can combine finishing objectives Heavy burrs still require preprocessing
Repeatable timed operation Supports documented process settings Requires consistent batch inputs
Potential manual-labor reduction Less individual hand polishing Media recovery and inspection still needed
Flexible material range Candidate process for several metal alloys Every new material needs trials

Limitations

Limitation Why It Matters Mitigation
Heavy burrs or large casting flash Pin finishing removes limited stock Machine or pre-deburr the defect first
Deep blind cavities Media and liquid may not circulate well Test sectioned samples or use another method
Narrow threads Magnetic pins can become trapped Choose alternative media and validate recovery
Very soft or coated components Risk of scratching or finish loss Gentle trial with dimensional checks
Ferromagnetic parts Clumping can reduce finishing consistency Reduce batch or use separation fixtures
Strict dimensions Edge geometry can change Measure before and after processing
Wastewater and compound Spent process liquid requires handling Approved collection and waste treatment
Unpublished power / capacity Cannot quote assured kg/h or equipment kW Request current manufacturer datasheet

Why Choose HLQ Induction Equipment?

HLQ offers magnetic deburring and polishing equipment for small precision components alongside its broader metalworking equipment range. A sound procurement decision should be based on an accurate current model datasheet, a matched magnetic-pin media kit, an agreed sample-processing recipe, clear electrical and safety requirements, and an acceptance test using the customer’s own workpieces. HLQ’s published page identifies jewelry, automatic-lathe parts, die castings, stamping components, springs, electronic hardware and related small parts as application examples; it does not publish independent productivity or precision guarantees.

Recommended Factory Acceptance Test (FAT)

FAT Item Evidence Required
Equipment identity Exact model, serial number, rated power and electrical nameplate
Reference samples Representative production parts and initial defect photos
Finishing recipe Pin type/dimensions, batch, fluid, drive setting and cycle time
Surface results Agreed before-and-after burr and roughness measurements
Dimensional integrity Critical dimensions and edge radius before and after
Media retention Approved method confirming no retained pins
Repeatability Multiple consecutive qualified batches
Safety Guarding, emergency stop, electrical and operating documentation

Further related applications appear in HLQ’s
magnetic deburring machine product collection.

Frequently Asked Questions

FAQ 1. What is a magnetic deburring and polishing machine?

It is a batch-finishing machine in which a changing magnetic field drives small stainless-steel magnetic pins through a processing liquid around workpieces. It is intended for fine burr removal, light surface cleaning and polishing of suitable, reachable features rather than heavy grinding.

FAQ 2. How is magnetic pin finishing different from induction heating?

Magnetic pin finishing uses magnetic forces to move finishing media. It is not designed to heat the workpiece to forging, brazing or melting temperature. The frequency of an induction heating generator should not be applied to this machine without verified magnetic-drive specifications.

FAQ 3. Which metals can be polished?

Candidate materials include stainless steel, brass, copper, aluminum alloys, carbon steel and selected jewelry alloys. Ferromagnetic workpieces, coated components and soft metals require additional trials to assess marking, clustering, dimensional change and cleanliness.

FAQ 4. Can magnetic pins remove burrs from internal threads and blind holes?

They can reach some cross-holes, grooves, threads and internal features, but access depends on pin geometry, liquid circulation and workpiece positioning. Deep blind holes can remain unfinished or trap media. Inspect the specific internal feature and verify complete pin recovery.

FAQ 5. How long is a typical magnetic deburring cycle?

The HLQ page describes approximately 5-20 minutes as a processing reference. Actual time depends on burr dimensions, material, batch load, drive setting, pin selection and target finish. Production calculations must also include separation, cleaning, drying and inspection.

FAQ 6. Will the process change dimensions or edge radii?

It can. Any mechanical finishing contact may affect edge condition, surface texture or dimensions. Tight-tolerance workpieces require before-and-after measurement of critical features, not an assumption that the process produces zero geometric change.

FAQ 7. What are the motor power and magnetic drive frequency of this HLQ machine?

The reviewed product page does not provide a numerical model datasheet for rated power, supply voltage, drive speed or magnetic drive frequency. Request the current model-specific technical drawing and electrical nameplate before selecting the system.

FAQ 8. How should a factory validate machine performance before purchasing?

Provide representative production parts with material grade, minimum openings, burr locations, surface-finish targets, batch needs and tolerance limits. Qualify a documented trial recipe, inspect internal and external features, measure dimensions, account for magnetic pins and confirm repeatability over several batches.

Magnetic deburring & polishing machine Principle

Magnetic grinding machines  (magnetic deburring & polishing machine) use the magical force of magnetic field to make the stainless steel pins rotate very fast, and the pins de-burr, polish and clean the work pieces high-effectively and precisely. This machine does not make any harm to the environment when it is working.

Magnetic Grinding Machine (magnetic deburring & polishing machine) Specifications

The magnetic Grinding Machine(magnetic deburring & polishing machine) is SUPER large grinding trough designed, suitable for massgrinding, polishing or cleaning. The magnetic grinding machine is running automatically, one person can operate multiple machines.

Magnetic grinding machines(magnetic deburring & polishing machine) use the magical force of magnetic field to make the stainless steel pins rotate very fast, to de-burr, polish and clean the work pieces high-effectively and precisely.

The magnetic grinding machines(magnetic deburring & polishing machine) are environmental friendly, NO pollution. They are grindingand polishing fast, effectively. They have an excellent ability of fast de-burring, high efficiently grinding small inner holes, inner pipes, crevices, etc. Make NO damage to the surface of workpieces, and DO NOT affect the accuracy of workpieces.

Magnetic grinding machines are of simple, safe and convenient operation, low cost and long working life.

Our products of grinding machines are suitable for grinding, de-burring, chamfering and polishing all kinds of metal stamping parts, metal castings, rigid plastic, etc. And the grinding machines are applied into the industries of horologe, eyeglass, lock manufacturing, ornaments & jewellery, electron, artware, machinery and hardware, etc.

Features:

1.Suitable for light iron metal,non-iron metal and tough plactic precious parts.

2.Realizing multi-effec such as burr wlimination, back angle,polishing and cleaning, and so on

3.Polishing dead angle of irregular parts,tubular,

4.blending timing, high speed,easy and safe operation

5.Adjustable can meet all polishing  demands

6.No dead angle while polishing

7.Finish reminding,it can reminding when the polishing done,one can control  several  ones

8.Volage,current, frequency and time are controllable easily

9.Polishing  processure needs no manwork intervene

Function

Magnetic Grinding Machine (magnetic deburring & polishing machine) removes the rusted layer or burnt spots of the parts, deburr and finish the parts in a very short time. The machine is especially best workable for the parts with inner holes, complex shapes, crevices or screw threads. Magnetic polishing machine will not hurt the surface of the parts, and not change the accuracy of the parts after finishing. The machine works efficiently and only about 5~20 minutes is needed for the parts. Magnetic Grinding Machine (magnetic deburring & polishing machine) can finish parts of metal materials and hard plastics.

Magnetic_Deburring_Polishing_Engineering_Guide

magnetic-deburring-guide

=
