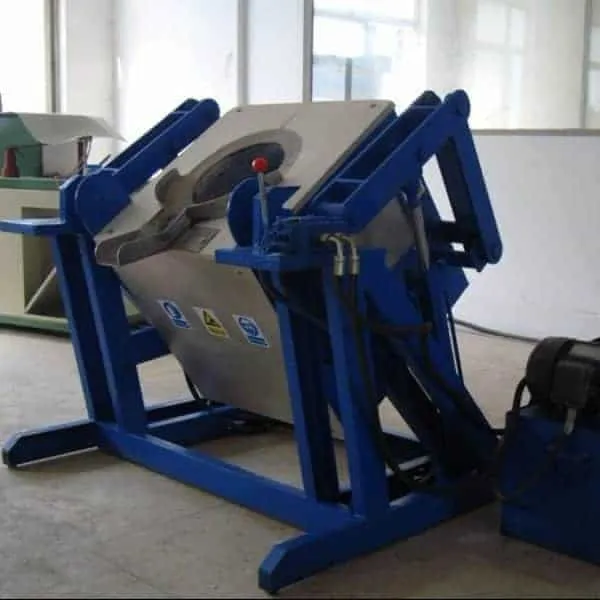

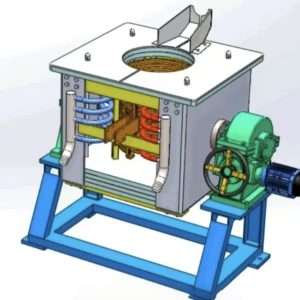

Induction Melting Furnace
Description
High quality and Top IGBT induction melting furnace manufacturer and supplier in China
Characteristics of M.F Induction Melting Furnace
Ā Ā Ā 1.Ā Better Heating penetration and even temperature inside the melting metal.
Ā Ā Ā 2.Ā M.F field force can stir the meltingĀ pool to achieve better melting quality.
Ā Ā Ā 3.Ā Ā Melting the Maximum quantity by the recommend machine according to above table the meltingtime is 30-50minutes,the first melting whenthe furnaceĀ is cold ,and it will take about 20-30minutes for the later meltingĀ when the furnace is already hot.
Ā Ā Ā 4.Ā Suitable for melting of steel,cooper,bronze,gold,silver and aluminum,stannum,maqnesium,stainless steel.
Specificationsļ¼
| Model | DW-MF-15 | DW-MF-25 | DW-MF-35 | DW-MF-45 | DW-MF-70 | DW-MF-90 | DW-MF-110 | DW-MF-160 |
| Input power max | 15KW | 25KW | 35KW | 45KW | 70KW | 90KW | 110KW | 160KW |
| Input voltage | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V | 70-550V |
| Input power desire | 3*380 380VĀ±20% 50Ā or 60HZ | |||||||
| Oscillate frequency | 1KHZ-20KHZ,according to the application ,normal about4KHZć8KHZć11KHZć15KHZć20KHZ | |||||||
| Duty cycle | 100%24hours work | |||||||
| Weight | 50KG | 50KG | 65KG | 70KG | 80KG | 94KG | 114KG | 145KG |
| Cubage(cm) | 27(W)x47(H)x56(L)cm | 35x65x65cm | 40x88x76cm | |||||

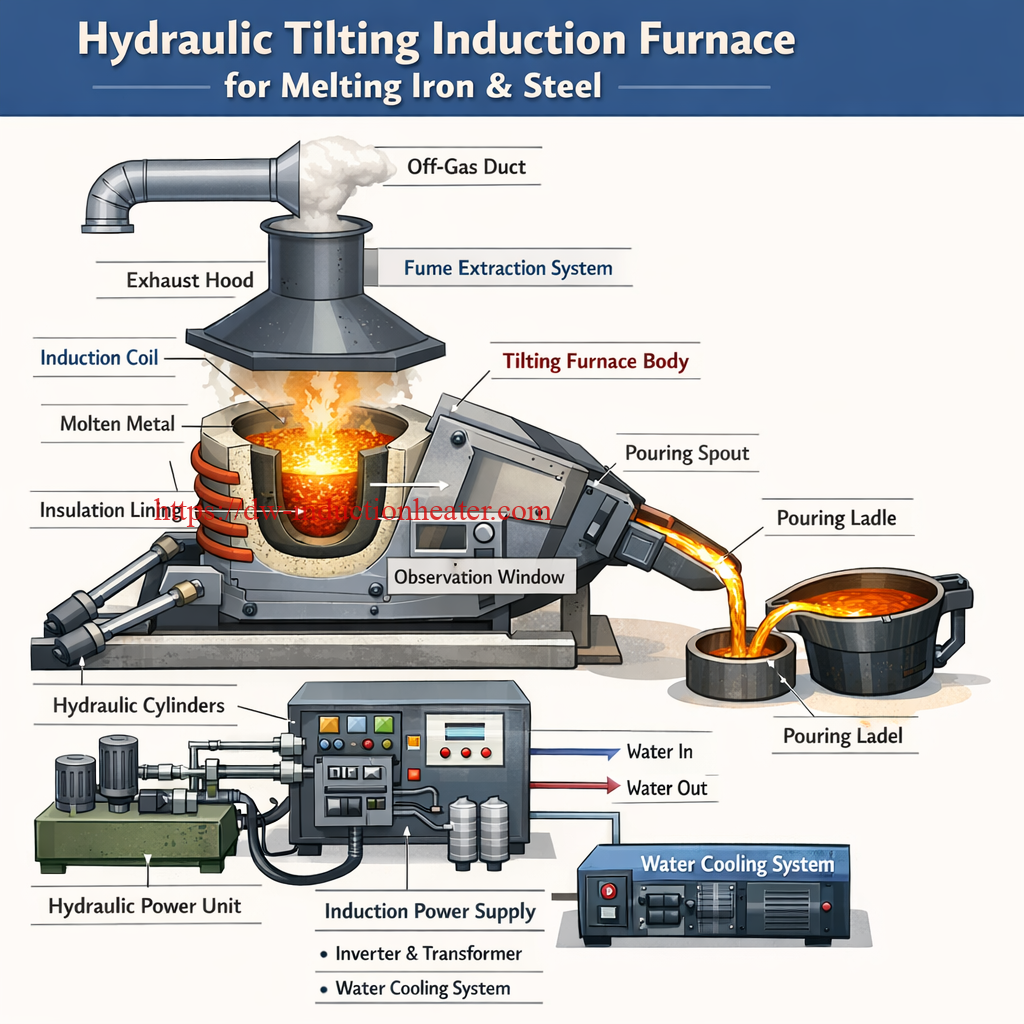

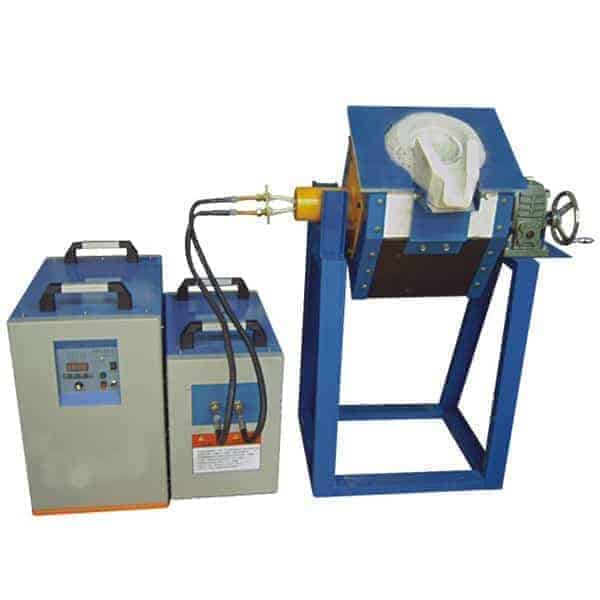

Main parts of the induction melting furnace system :
Ā Ā 1.Ā M.F Induction Heating Generator.
Ā Ā 2.Ā Ā Melting Furnace.
Ā Ā 3.Ā Compensation Capacitor
Machine models and maximum melting abilityļ¼
| Model | Steel and Stainless Steel | Gold,Silver | Aluminium |
| DW-MF-15 15KWMelting Furnace | 5KG or 10KG | 3KG | |
| DW-MF-25 25KW Melting Furnace | 4KG or 8KG | 10KG or 20KG | 6KG |
| DW-MF-35 35KW Melting Furnace | 10KGĀ or 14KG | 20KG orĀ 30KG | 12KG |
| DW-MF-45 45KW Melting Furnace | 18KGĀ or 22KG | 40KG orĀ 50KG | 21KG |
| DW-MF-70 70KW Melting Furnace | 28KG | 60KG orĀ 80KG | 30KG |
| DW-MF-90 90KW Melting Furnace | 50KG | 80KG orĀ 100KG | 40KG |
| DW-MF-110 110KW Melting Furnace | 75KG | 100KG orĀ 150KG | 50KG |
| DW-MF-160 160KW Melting Furnace | 100KG | 150KG or 250KG | 75KG |
