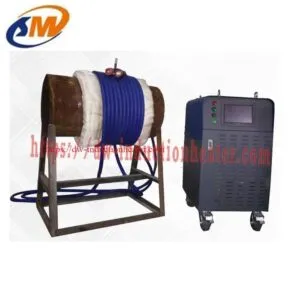

Flexible Cable Coils For PWHT induction Preheating Welding
Description
Manufacturer of Flexible Cable Coils/Clamp Coils/soft induction coils For PWHT Preheating Welding
Product Description
| Model | Outputย Power | Inputย Current | Weight | Inputย Voltage | Frequency |
| MYD-30KW | 1ย ~ย 30KW | 45A | 110KG |
380Vย 3ย phase, 4ย wire,50/60Hz
(220V,ย 440V)Option
|
2~ย 40ย KHZ |
| MYD-40KW | 1ย ~ย 40KW | 60A | 120KG | ||
| MYD-50KW | 1ย ~ย 50KW | 75A | 130KG | ||
| MYD-60KW | 1ย ~ย 60KW | 90A | 135KG | ||
| MYD-80KW | 1ย ~ย 80KW | 120A | 145KG | ||
| MYD-100KW | 1ย ~ย 100KW | 150A | 168KG | ||
| MYD-120KW | 1ย ~ย 120KW | 180A | 280KG |
Technicalย Parameter
| Heatingย Type | Inductionย Heating |
| Heatingย Tampย Range | 0ยบCย ~ย 1100ยบC |
| Heatingย Speed | 5ยบC~ย 400ยบCย perย minute |
| Coolingย Type | Airย Cooling |
| Thermocouple | Kย Type |
| Temperatureย Recorder | Digitalย Recorderย withย 6ย Channel |
| Inductionย coil | Softย Inductionย coilย &ย clampย inductionย coil |
Theย option parts ofย induction heating system
lย ย Induction heating power

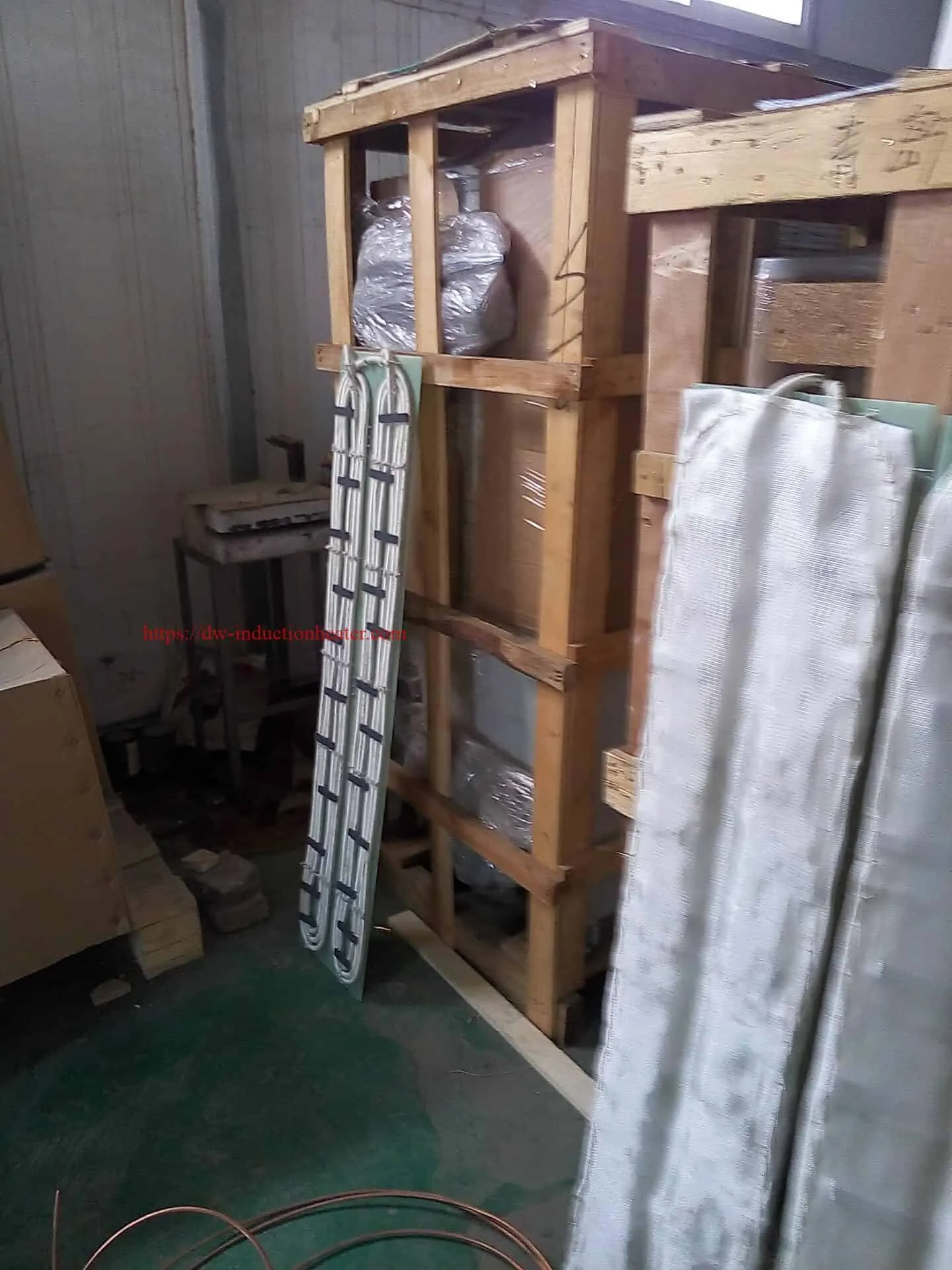

lย ย Induction coil (Clamp induction coil) or (Soft induction coil)
lย ย Connection cable for the convenient to link the coil and the heating power
lย ย Temperature controller
lย ย PLC touch screen
lย ย Temperature recorder with printer
lย ย K type thermonuclear&connection cable

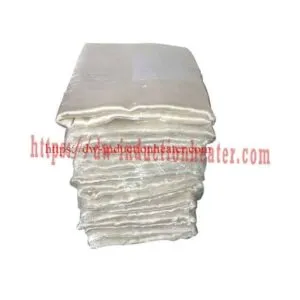

lย ย Insulation Blanket
lย ย And other part.
MYD series induction heater to compare the resistant heat:
lย ย Uniform
lย ย High Speed
lย ย Energy Saving: 30-80%
Features
lย ย Air cooling: working well at -10โ-40โ

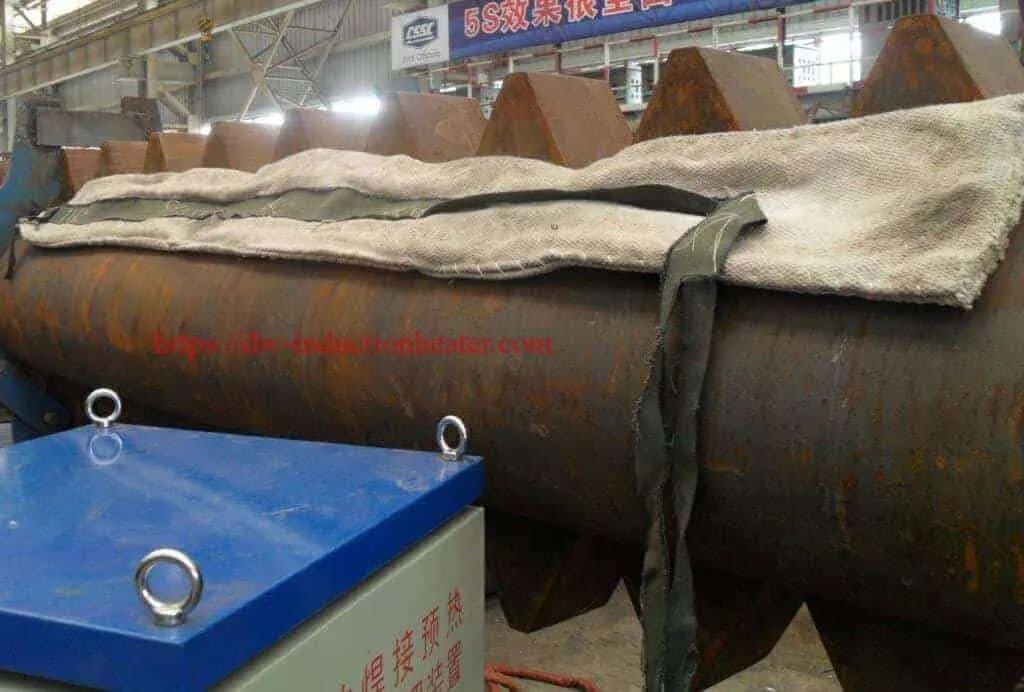

lย ย Induction heating power: To heat the work job with insulation blanket around it. High heating speed and heating efficiency with little energy lost.
lย ย PLC touching screen: Intuitive to see and easy to operate.

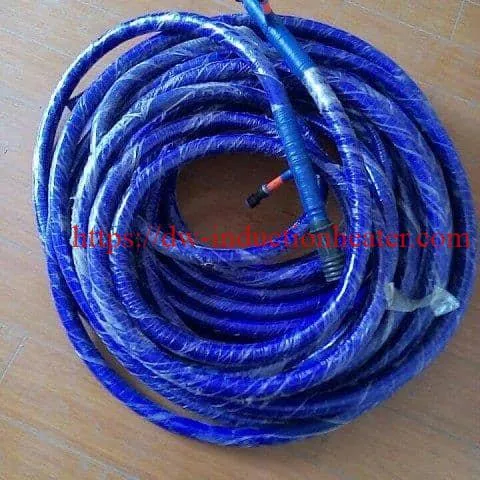

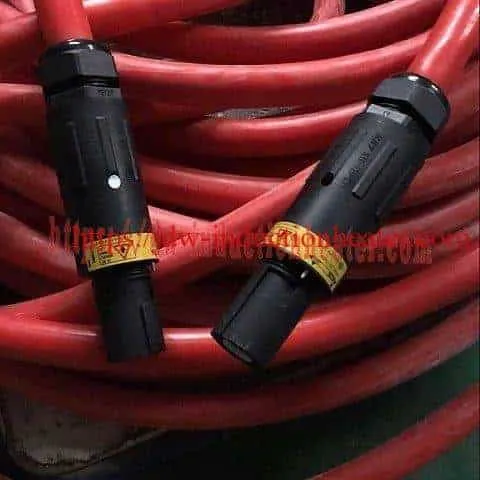

lย ย Soft induction coil: Easy to wind on different work piece.

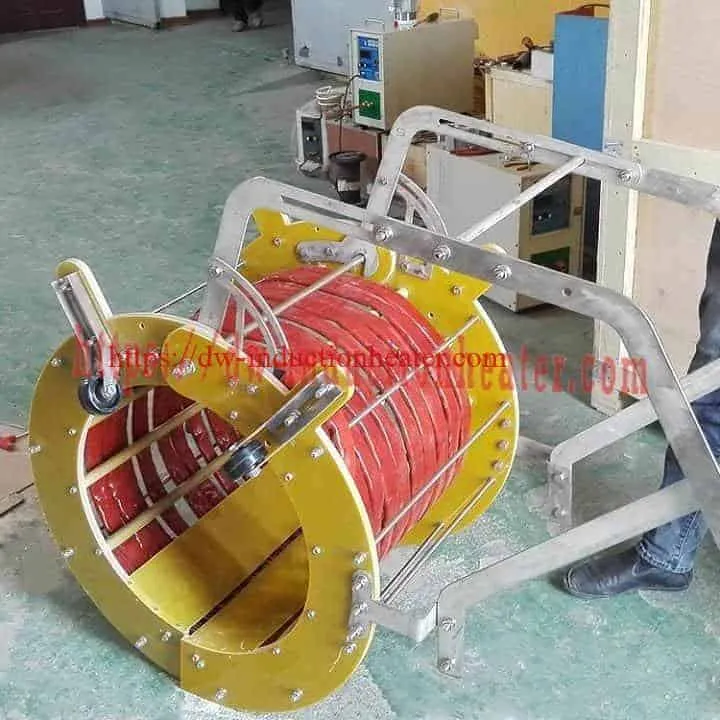

lย ย The Removable opening Induction coil: easy to operate and move.
lย ย Temperature recorder: Record the whole heating curve and print it at spot.
lย ย Temperature Controller: Heating according to the heating requirement details with the ยฑ3โ tolerance.
Applications&using fields
Our MYD series heating system are air-cooled induction heating equipment with DSP system.
Their main applications are pipeline heat, pre-weld heat, post-weld heat treatment, stress relief, injection mold heating, annealing, etc.

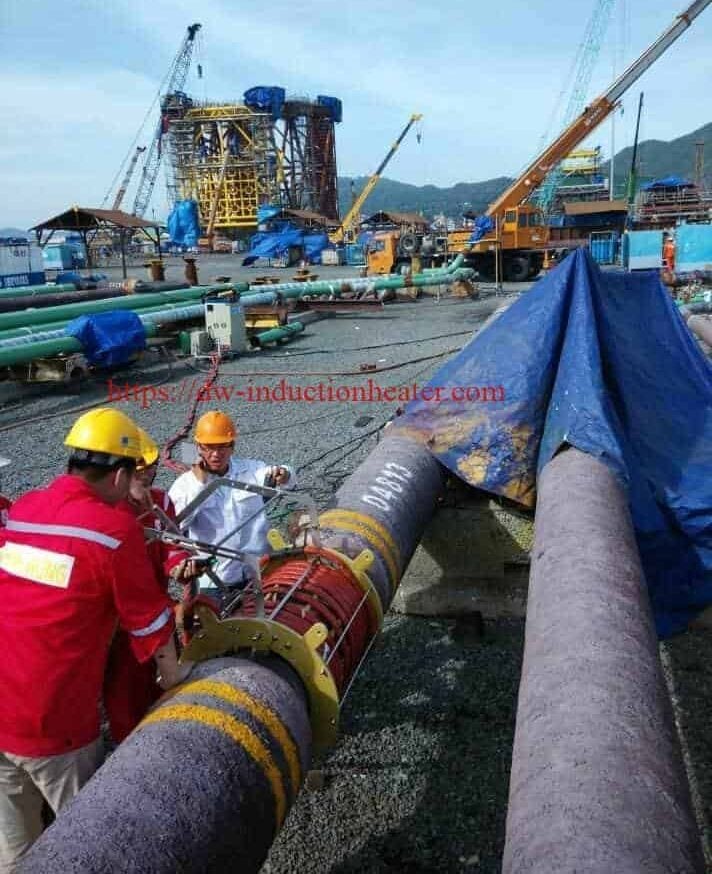

lย ย Pre-heat:for coating, bending, fitting&unfitting, weld and thermal assembly.

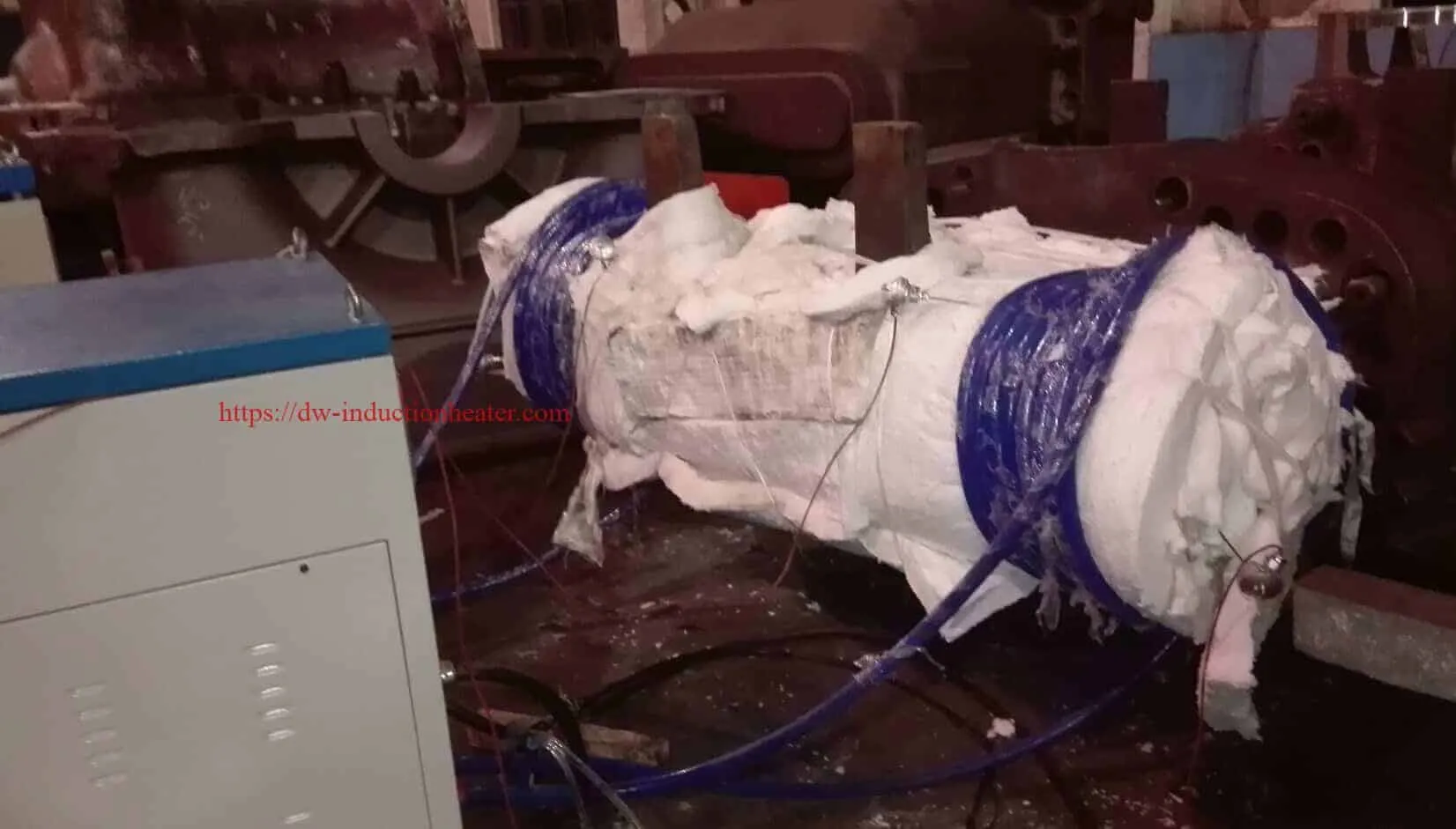

lย ย Post-weld heat treatment: tank, boiler or other metal jobs
lย ย Heating: mold heating, shipboard, zinc bath, large& irregular metal parts
lย ย Pipeline heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, mold, screw barrel industries,etc.
