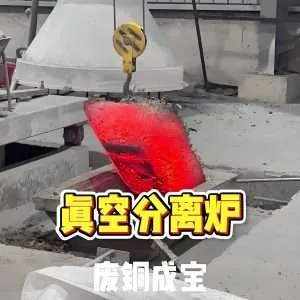

Separation And Recovery Zinc Vacuum Furnaces For Copper-Zinc Alloy Scraps

Vacuum Separation and Recovery of Zinc Melting Induction Furnace from Copper‑Zinc Alloy Scraps Under Vacuum Conditions

Copper‑zinc alloys (mainly brass) are widely used in plumbing, valves, fittings, electrical components, and decorative parts. During manufacturing and recycling, large amounts of copper‑zinc alloy scraps are generated in the form of turnings, chips, runners, off‑grade castings, and obsolete components. These scraps contain a significant fraction of zinc, which is both valuable and environmentally sensitive if not handled correctly.

Traditional recycling methods, such as open-air pyrometallurgy, often result in the loss of zinc as low-value oxide dust or require chemical processes that generate hazardous wastewater. These methods are energy-intensive and environmentally taxing. The Vacuum Separation and Recovery Induction Furnace represents a technological leap forward. By leveraging the principles of vacuum metallurgy combined with the precision of induction heating, this equipment allows for the precise, clean, and high-yield separation of zinc from copper melts via sublimation and evaporation.

This article provides an in-depth exploration of this cutting-edge recycling technology, detailing its working principles, distinct advantages, technical specifications, and its pivotal role in the circular economy of non-ferrous metals.

Principle of Vacuum Separation and Zinc Recovery from Copper‑Zinc Alloys

1.1 Thermodynamic Basis in Copper‑Zinc (Brass) Alloys

Brass is an alloy where copper is the primary component and zinc is the main alloying element. Zinc has:

• A lower boiling point (~907 °C)
• Much higher vapor pressure at a given temperature than copper

When a copper‑zinc melt is heated in a vacuum induction furnace:

1. The copper‑zinc alloy melts and becomes homogeneous.
2. At temperatures above the zinc boiling point, zinc in the melt starts to vaporize.
3. Under vacuum, the equilibrium strongly shifts toward the vapor phase for zinc, while copper remains almost completely in the liquid phase due to its low vapor pressure.
4. Zinc vapor leaves the melt surface, travels through the vacuum atmosphere, and condenses on purposely cooled surfaces (condensers), forming metallic zinc deposits.

This process is essentially a form of vacuum distillation or vacuum evaporation targeted at zinc in brass.

1.2 Effect of Vacuum Conditions

Operating in a controlled vacuum (typically 0.01–30 Pa) changes the phase behavior:

• Zinc boils at lower temperature compared to atmospheric pressure, reducing required process temperature and energy input.
• The mean free path of zinc vapor molecules increases, improving mass transport from the melt surface to condensers.
• Absence of oxygen drastically limits oxidation of zinc to ZnO fume, resulting in metallic zinc recovery instead of dusty oxide.
• Vacuum also assists in removing other volatile species (e.g., Pb, Cd) that may be present in specific brass grades.

The combination of lower boiling point and enhanced mass transfer is what enables selective and efficient separation of zinc from copper‑zinc scrap.

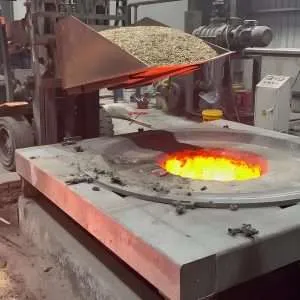

1.3 Induction Melting Principle

The induction furnace uses an alternating current in a water‑cooled copper coil to generate an oscillating magnetic field:

• This magnetic field induces eddy currents in the metallic charge.
• Eddy currents produce Joule heating, rapidly melting the brass scrap from inside out.
• Electromagnetic stirring occurs naturally, ensuring:
  • Uniform temperature distribution
  • Homogeneous liquid composition
  • Enhanced zinc evaporation from the entire melt surface

Induction heating is highly controllable and efficient, making it ideal for precise vacuum zinc recovery processes.

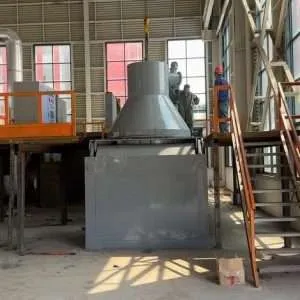

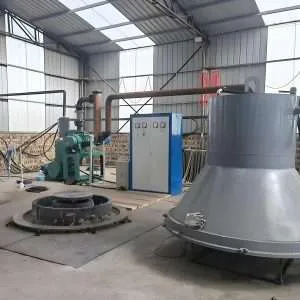

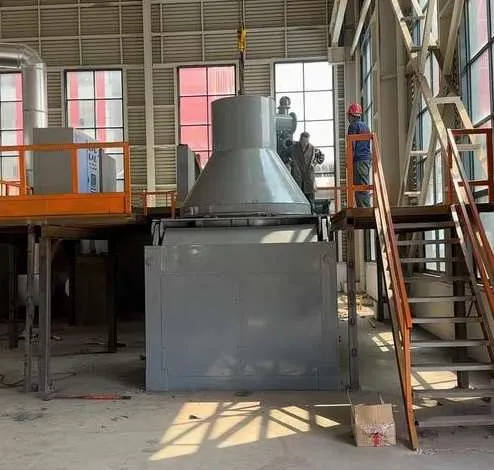

Characteristics of the Vacuum Induction Separation Furnace

The equipment designed for this process is highly specialized, integrating vacuum engineering with electro-thermal technologies.

1. Robust Vacuum Chamber Architecture

The furnace body is typically a water-cooled, double-walled stainless steel vessel. It must maintain a high vacuum (0.1 to 50 Pa) throughout the heating cycle. The vacuum environment serves two purposes: it facilitates the low-temperature evaporation of zinc and prevents the oxidation of the copper residue, ensuring the output is high-grade metal rather than oxide slag.

2. Advanced Induction Heating System

Unlike resistance furnaces, induction heating offers specific benefits for vacuum separation:

• Internal Heat Generation: Heat is generated directly within the scrap material, leading to high thermal efficiency.
• Electromagnetic Stirring: The magnetic field creates a stirring action within the molten pool. This is crucial for distillation, as it constantly brings fresh material from the bottom of the crucible to the surface, significantly increasing the evaporation rate of the zinc.

3. Integrated Condensation System

The efficiency of the system is often defined by the condenser. It must be geometrically designed to maximize the capture rate of zinc vapor. If the condenser is too hot, zinc passes through to the vacuum pumps (damaging them); if it is too cold, the zinc may solidify in the transfer ducts, causing blockages. Advanced units use multi-stage baffles and precise temperature controls.

4. PLC and Automation

Modern units are equipped with Programmable Logic Controllers (PLCs) that monitor vacuum levels, crucible temperature, condenser temperature, and water cooling flow. This allows for reproducible batches and data logging for quality control.

Features of the Technology

• Deep Purification Capability: The system is capable of reducing the residual zinc content in copper to <0.1% while recovering zinc with >99% purity.
• Closed-Loop System: The entire process occurs within a sealed vessel, ensuring zero fugitive emissions.
• Feedstock Flexibility: The furnace can process various forms of scrap, including loose turnings, briquetted chips, solid blocks, and even mixed metal powders derived from crushed circuit boards.
• Selective Separation: By fine-tuning temperature and pressure, operators can potentially separate other volatile impurities (like Lead, Cadmium, or Bismuth) either alongside or sequentially before the Zinc recovery.

Advantages of Vacuum Separation over Traditional Methods

Comparing vacuum induction separation to traditional pyrometallurgy (oxidative refining) or hydrometallurgy reveals distinct operational and economic benefits.

Comparative Advantage Table

1. Resource Maximization and Economic Return

Instead of treating zinc as an impurity to be burned off, this technology treats it as a valuable byproduct. The sale of recovered metallic zinc significantly offsets the electricity and operational costs of the furnace, creating a dual revenue stream.

2. Enhanced Copper Purity

Research and industrial data indicate that vacuum sublimation can increase copper purity from ~60-95% (in scrap feed) to nearly 99.80%. This upgraded copper can often be used directly for high-grade casting or as a feedstock for precision alloys without further electrolytic refining.

3. Environmental Compliance

Eliminating the release of zinc oxide fumes is a major advantage. In many jurisdictions, the release of heavy metal fumes is strictly regulated. Vacuum furnaces inherently comply with these regulations by capturing the metal vapor internally.

Applications

The versatility of the Vacuum Separation and Recovery Induction Furnace allows it to serve multiple sectors of the recycling industry.

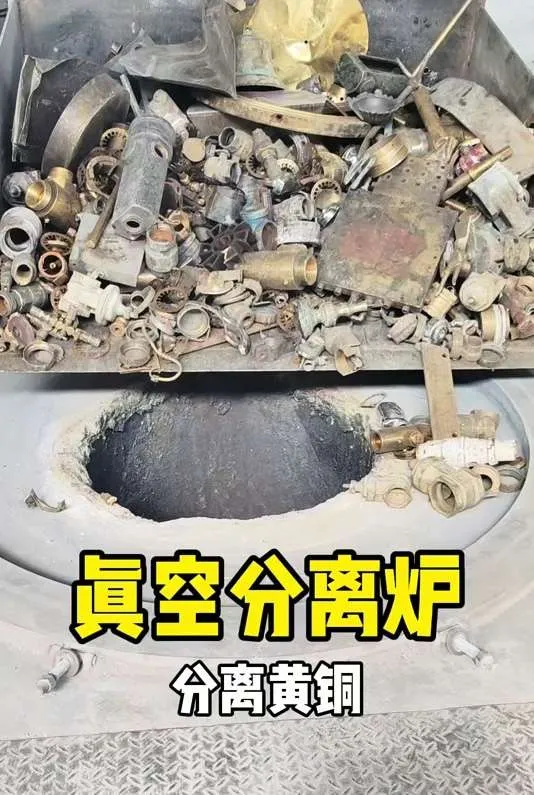

1. Brass and Bronze Scrap Recycling

The brass industry generates massive amounts of turnings and cuttings (swarf). Re-melting these in open furnaces results in “zinc flare” (zinc burning off). Vacuum furnaces recover this zinc, allowing the remaining copper residue to be re-alloyed precisely to new specifications.

2. Electronic Waste (WPCB) Processing

This is a rapidly growing application. Waste Printed Circuit Boards contain mixed metallic particles (copper, zinc, tin, lead). After mechanical crushing and electrostatic separation, the resulting metallic powder can be processed in vacuum furnaces. The volatile components (Zn, Pb) evaporate, leaving behind a copper-rich residue containing precious metals (Gold, Silver, Palladium) ready for final refining.

3. Production of High-Purity Copper Alloys

For specialty applications requiring oxygen-free copper or alloys with extremely low volatile impurity content, vacuum induction melting is the standard. This process acts as a refining step to degas the melt (removing Hydrogen and Nitrogen) while stripping out Zinc, Lead, and Cadmium.

4. Secondary Zinc Production

While the primary goal is often copper purification, the facility effectively acts as a secondary zinc producer, supplying high-purity zinc for galvanizing, die-casting, or chemical production.

Technical Parameters

The efficiency of the separation depends heavily on specific operational parameters. Below are typical technical specifications for an industrial-scale Vacuum Induction Distillation Furnace designed for copper-zinc separation.

Table 1: Typical Industrial Furnace Specifications

Table 2: Optimized Process Parameters for Zn Separation

Based on metallurgical research and industrial case studies (such as WPCB powder processing), the following parameters yield optimal separation efficiency:

Table 3: Performance Metrics (Example Case Study)

Data based on the separation of Zinc from Brass/WPCB mixed particles.

Operational Considerations and Maintenance

To ensure the longevity of the equipment and the safety of the operation, several factors must be managed:

• Crucible Selection: High-density graphite is the standard crucible material. It couples well with the induction field and withstands thermal shock. However, it must be inspected for erosion, as molten copper can eventually degrade the graphite wall.
• Condenser Management: The zinc condenser is the “kidney” of the system. It must be regularly harvested. If the zinc build-up is not removed, it alters the thermal profile of the condenser, potentially reducing capture efficiency.

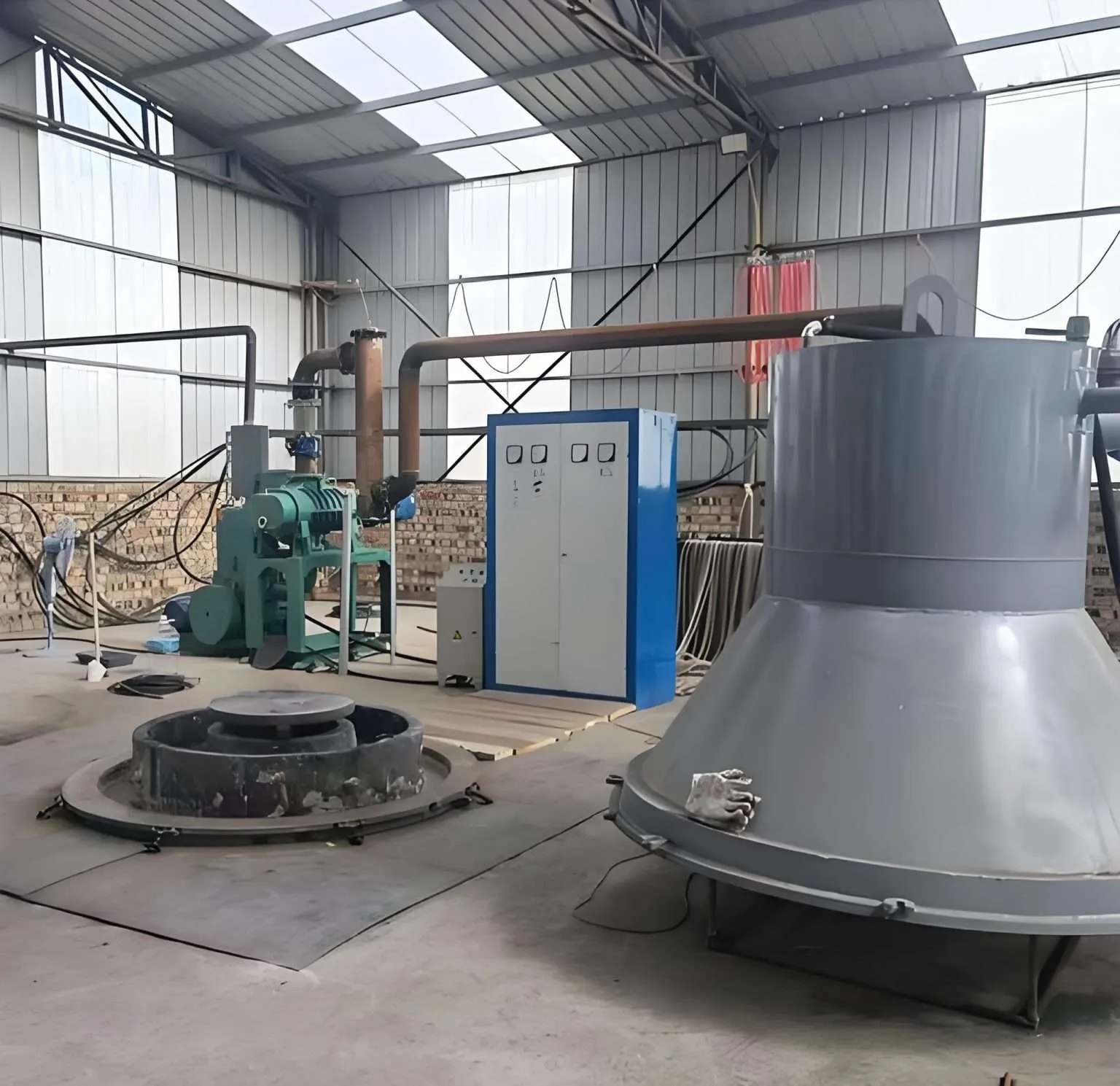

• Vacuum Pump Health: The vacuum system usually consists of a mechanical backing pump (Rotary Vane or Screw) and a Roots blower. Because metal dust is abrasive and reactive, oil filtration systems must be maintained rigorously to prevent pump seizure.
• Safety Interlocks: Systems must have fail-safes for loss of water cooling or loss of vacuum to prevent damage to the induction coil or crucible breakthrough.

Future Outlook and Sustainability

The push for “Green Copper” and circular economy practices is driving the rapid adoption of vacuum separation technologies. As ore grades decline and mining becomes more expensive, the “urban mine” of scrap metal becomes crucial.

Future developments in this field are likely to focus on:

1. Continuous Distillation: Moving from batch processing to continuous feeding systems to increase throughput and energy efficiency.
2. Fractional Distillation: Developing multi-stage condensers capable of separating complex alloys (e.g., separating Cadmium, Lead, and Zinc individually) in a single heat cycle based on their distinct vapor pressures.
3. Heat Recovery: Implementing better insulation and heat exchange systems to utilize the latent heat of condensation for pre-heating feed materials.

Conclusion

The Vacuum Separation and recovery of zinc melting induction furnace technology transforms a waste management problem—zinc contamination in copper scrap—into a profitable opportunity. It offers a sophisticated, environmentally friendly alternative to traditional smelting, enabling recyclers to recover high-purity copper and metallic zinc simultaneously.

By adopting this technology, metal processing facilities can drastically reduce their environmental footprint, improve their bottom line through the sale of recovered byproducts, and contribute to a more sustainable global supply chain for critical non-ferrous metals. Whether for processing brass turnings or mining value from electronic waste, vacuum induction separation stands as a pillar of modern metallurgical innovation.
