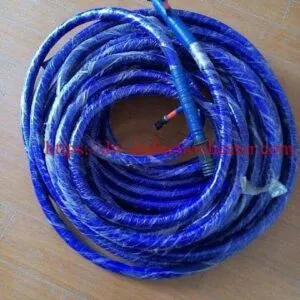

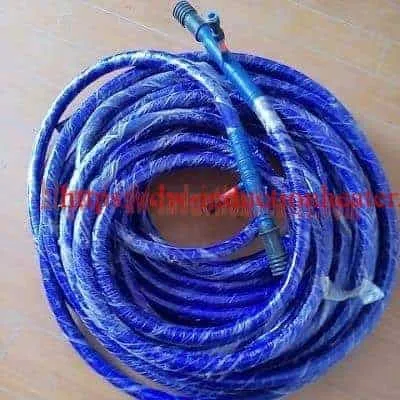

PWHT flexible cable coil by water cooled
Description
Manufacturer of PWHT Flexible Cable Coils/PWHT Clamp Coils/PWHT soft induction coils For PWHT in Welding pipeline,etc.
Product Description
| Model | OutputĀ Power | InputĀ Current | Weight | InputĀ Voltage | Frequency |
| MYD-30KW | 1Ā ~Ā 30KW | 45A | 110KG | 380VĀ 3Ā phase, 4Ā wire,50/60Hz
(220V,Ā 440V)Option
| 2~Ā 40Ā KHZ |
| MYD-40KW | 1Ā ~Ā 40KW | 60A | 120KG | ||
| MYD-50KW | 1Ā ~Ā 50KW | 75A | 130KG | ||
| MYD-60KW | 1Ā ~Ā 60KW | 90A | 135KG | ||
| MYD-80KW | 1Ā ~Ā 80KW | 120A | 145KG | ||
| MYD-100KW | 1Ā ~Ā 100KW | 150A | 168KG | ||
| MYD-120KW | 1Ā ~Ā 120KW | 180A | 280KG |
TechnicalĀ Parameter
| HeatingĀ Type | InductionĀ Heating |
| HeatingĀ TampĀ Range | 0ĀŗCĀ ~Ā 1100ĀŗC |
| HeatingĀ Speed | 5ĀŗC~Ā 400ĀŗCĀ perĀ minute |
| CoolingĀ Type | AirĀ Cooling |
| Thermocouple | KĀ Type |
| TemperatureĀ Recorder | DigitalĀ RecorderĀ withĀ 6Ā Channel |
| InductionĀ coil | SoftĀ InductionĀ coilĀ &Ā clampĀ inductionĀ coil |
TheĀ option parts ofĀ induction heating system

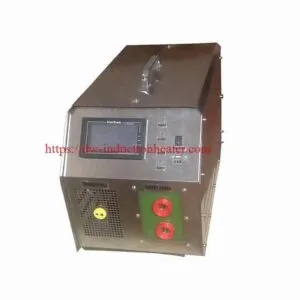

lĀ Ā Induction heating power
lĀ Ā Induction coil (Clamp induction coil) or (Soft induction coil)
lĀ Ā Connection cable for the convenient to link the coil and the heating power
lĀ Ā Temperature controller
lĀ Ā PLC touch screen
lĀ Ā Temperature recorder with printer
lĀ Ā K type thermonuclear&connection cable
lĀ Ā Insulation Blanket
lĀ Ā And other part.
MYD series induction heater to compare the resistant heat:
lĀ Ā Uniform
lĀ Ā High Speed
lĀ Ā Energy Saving: 30-80%
Features
lĀ Ā Air cooling: working well at -10ā-40ā
lĀ Ā Induction heating power: To heat the work job with insulation blanket around it. High heating speed and heating efficiency with little energy lost.
lĀ Ā PLC touching screen: Intuitive to see and easy to operate.

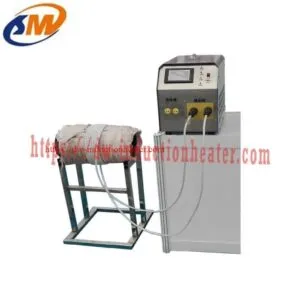

lĀ Ā Soft induction coil: Easy to wind on different work piece.

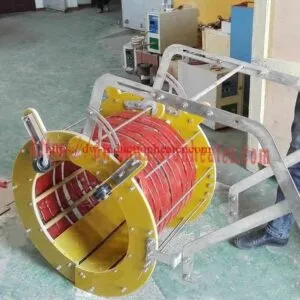

lĀ Ā The Removable opening Induction coil: easy to operate and move.
lĀ Ā Temperature recorder: Record the whole heating curve and print it at spot.
lĀ Ā Temperature Controller: Heating according to the heating requirement details with the Ā±3ā tolerance.
Applications&using fields
Our MYD series heating system are air-cooled induction heating equipment with DSP system.
Their main applications are pipeline heat, pre-weld heat, post-weld heat treatment, stress relief, injection mold heating, annealing, etc.
lĀ Ā Pre-heat:for coating, bending, fitting&unfitting, weld and thermal assembly.
lĀ Ā Post-weld heat treatment: tank, boiler or other metal jobs
lĀ Ā Heating: mold heating, shipboard, zinc bath, large& irregular metal parts

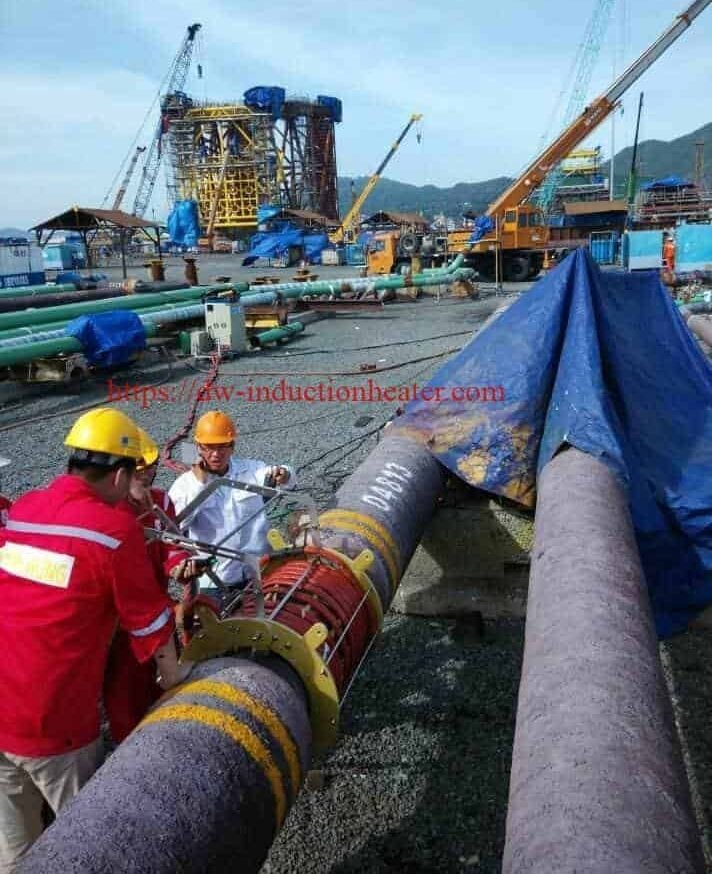

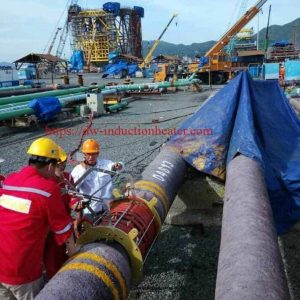

lĀ Ā Pipeline heat: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, mold, screw barrel industries,etc.
