Mid-Frequency Aluminum Melting Furnace – SMJD Series, 150 to 1,200 kg Capacity
Quick Answer
The SMJD mid-frequency induction aluminum melting furnace is a crucible-type electric melting furnace built for two duties: melting an aluminium charge from solid to a molten bath, and then holding that bath at the pouring temperature so metal can be cast continuously. It is supplied as a complete cell – IGBT power supply, capacitor cabinet, furnace body with a water-cooled copper coil, crucible and lining, hydraulic tilting frame, cooling circuit and control cabinet.
Published performance for the aluminium column of the range is 150 kg to 1,200 kg per batch, with an output of 60 kW to 200 kW, an input current of 90 A to 300 A, a 3-phase 380 V, 50-60 Hz supply and an oscillation band of 1 kHz to 100 kHz, customisable to the customer request. Pure aluminium melts at about 660 °C and production melts are normally held at 680-760 °C. Thirteen SMJD models are published, each with its own crucible dimension schedule.
The furnace is electric only. The published manual answers the question “Which kind of power supply do you supply? Electricity or gas?” with a single word – Electricity. There is no separate gas or oil variant in this series.
Note on one figure used in older listings of this machine: the published aluminium capacity column runs from 150 kg, not 100 kg or 200 kg. SMJD-480 is the smallest published aluminium entry at 150 kg.
Table of Contents
- What is the Mid-Frequency Aluminum Melting Furnace?
- Key Applications
- Suitable Materials
- Working Principle
- Technical Specifications
- Recommended Model Selection
- Process Workflow
- Common Problems and Solutions
- Engineering Selection Guide
- Advantages and Limitations
- Why Choose HLQ?
- 6 Core FAQs

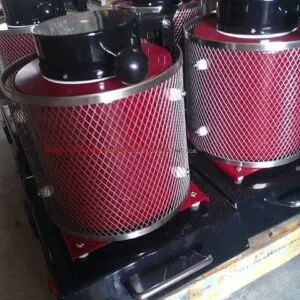

What is the Mid-Frequency Aluminum Melting Furnace?
A mid-frequency induction melting furnace is an electric furnace in which a medium-frequency alternating current is passed through a copper coil surrounding a conducting crucible. The alternating magnetic field of that coil induces eddy currents in the crucible wall, the crucible wall resists those currents and heats, and the heat passes from the crucible into the metal it contains. There is no flame, no burner and no fuel line in the furnace body.

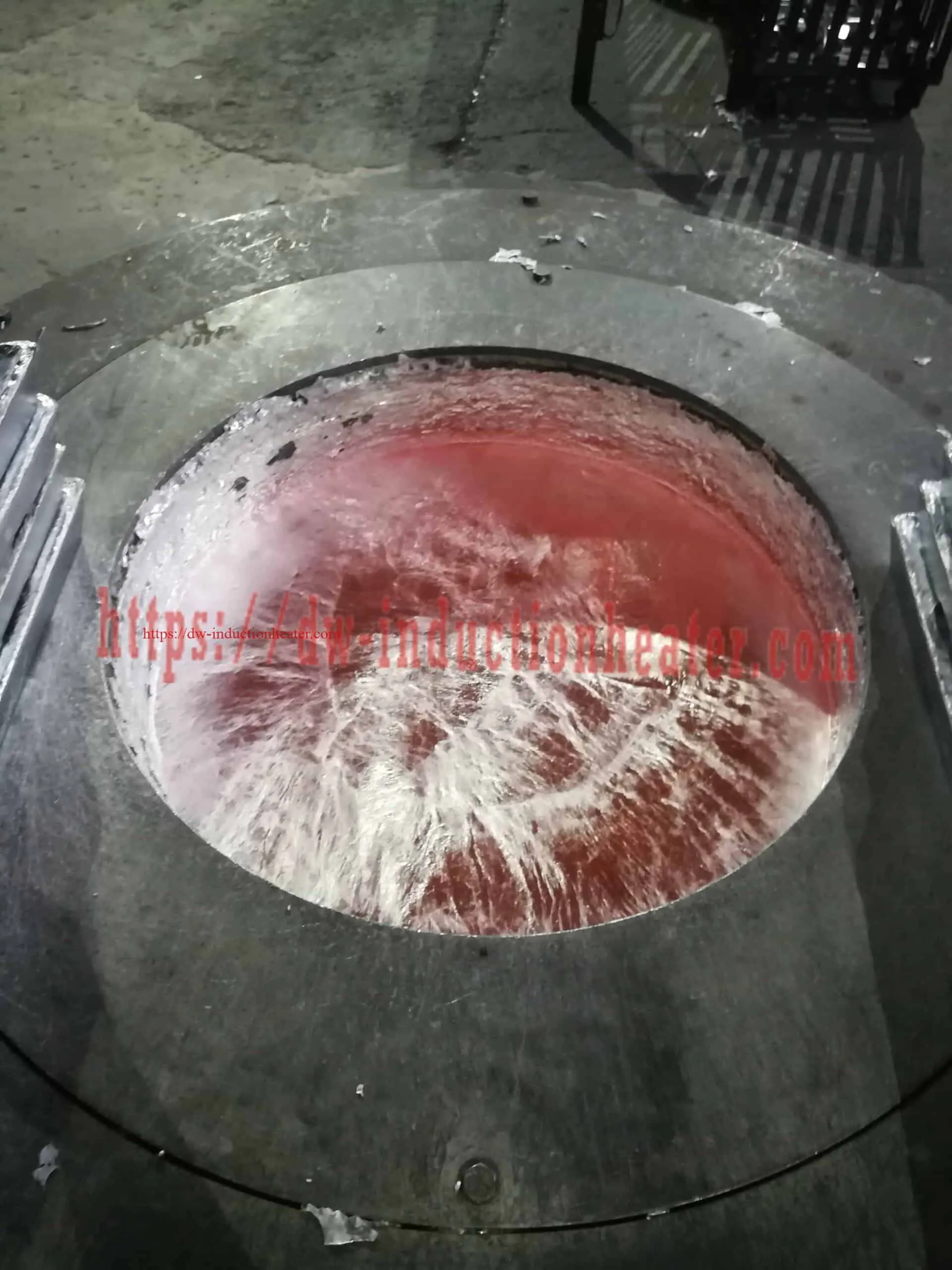

For aluminium this arrangement is especially well suited, because aluminium is a good electrical conductor and melts at a low temperature. Once the first molten bath has formed, the high thermal conductivity of the liquid metal transfers heat quickly and the electromagnetic field that caused the heating also stirs the bath, which keeps the temperature and the composition even across the melt.

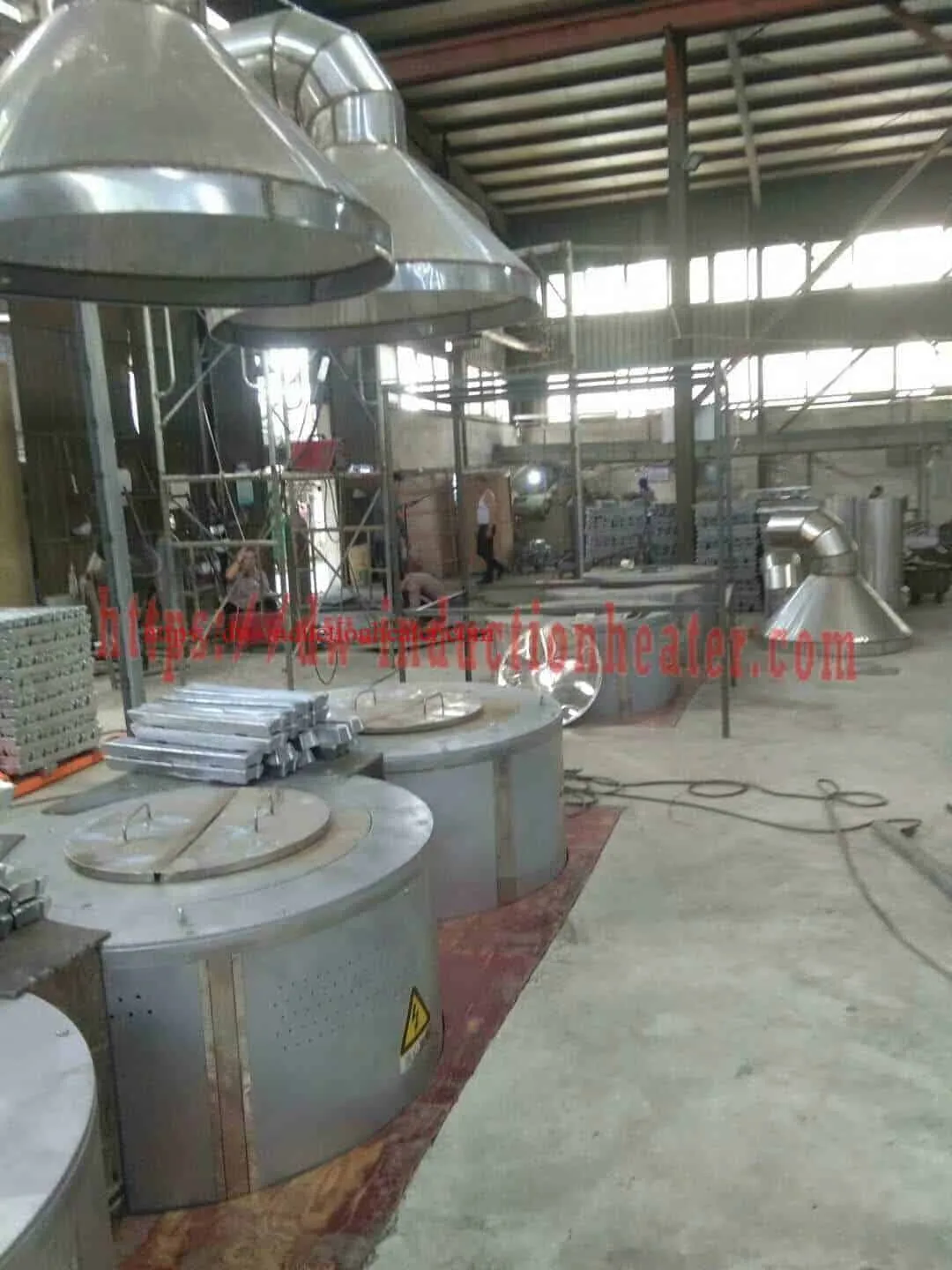

The machine in this series is built around the SMJD crucible furnace. Published as a series-connection arrangement, the SMJD table lists thirteen model designations, of which SMJD-1250 appears twice – once at 80 kW and once at 120 kW – because the two ratings share one crucible and differ only in the power supply fitted. HLQ publishes medium-frequency supplies in more than one circuit topology, so if the electrical arrangement is the deciding factor for your installation, the series connection medium frequency aluminium melting furnace page carries the detail on how the capacitor bank is connected and what that changes in service.
The furnace covers three things that a buyer normally has to solve together: a melting duty, a holding duty and the plant utilities around them – power, cooling water, temperature measurement, fume extraction and the pouring station. Everything in this article is published HLQ data for that configuration.

Key Applications
The furnace is used wherever aluminium has to be brought to a molten, castable state – and then kept there while it is poured. The four duties published for this configuration are set out in the application case diagram below.

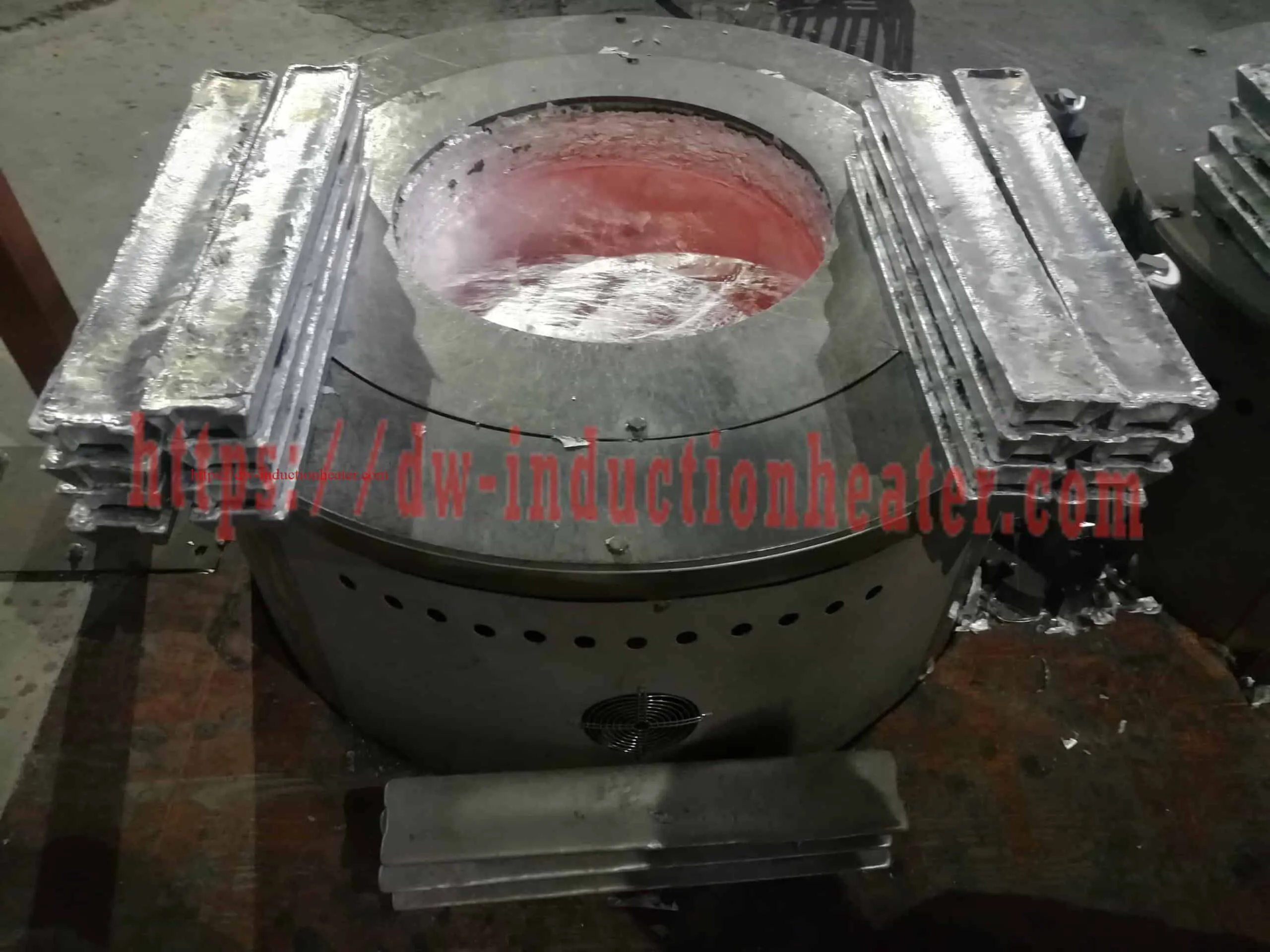

1. Aluminium ingot production. Primary aluminium, returned ingots and clean production returns are melted and cast into ingot. This is the cleanest duty for the furnace, because a dry, sorted charge gives a predictable melt composition and the lowest dross generation.

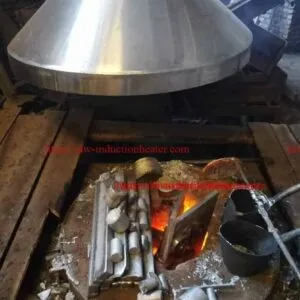

2. Aluminium alloy remelting and dross control. Sorted alloy scrap, chips and turnings are remelted. Dross generation rises sharply when thin, coated, damp or mixed material is charged, so the charge preparation discipline – clean, dry, sorted by alloy grade, and compacted where possible – has more effect on yield than any setting on the furnace.

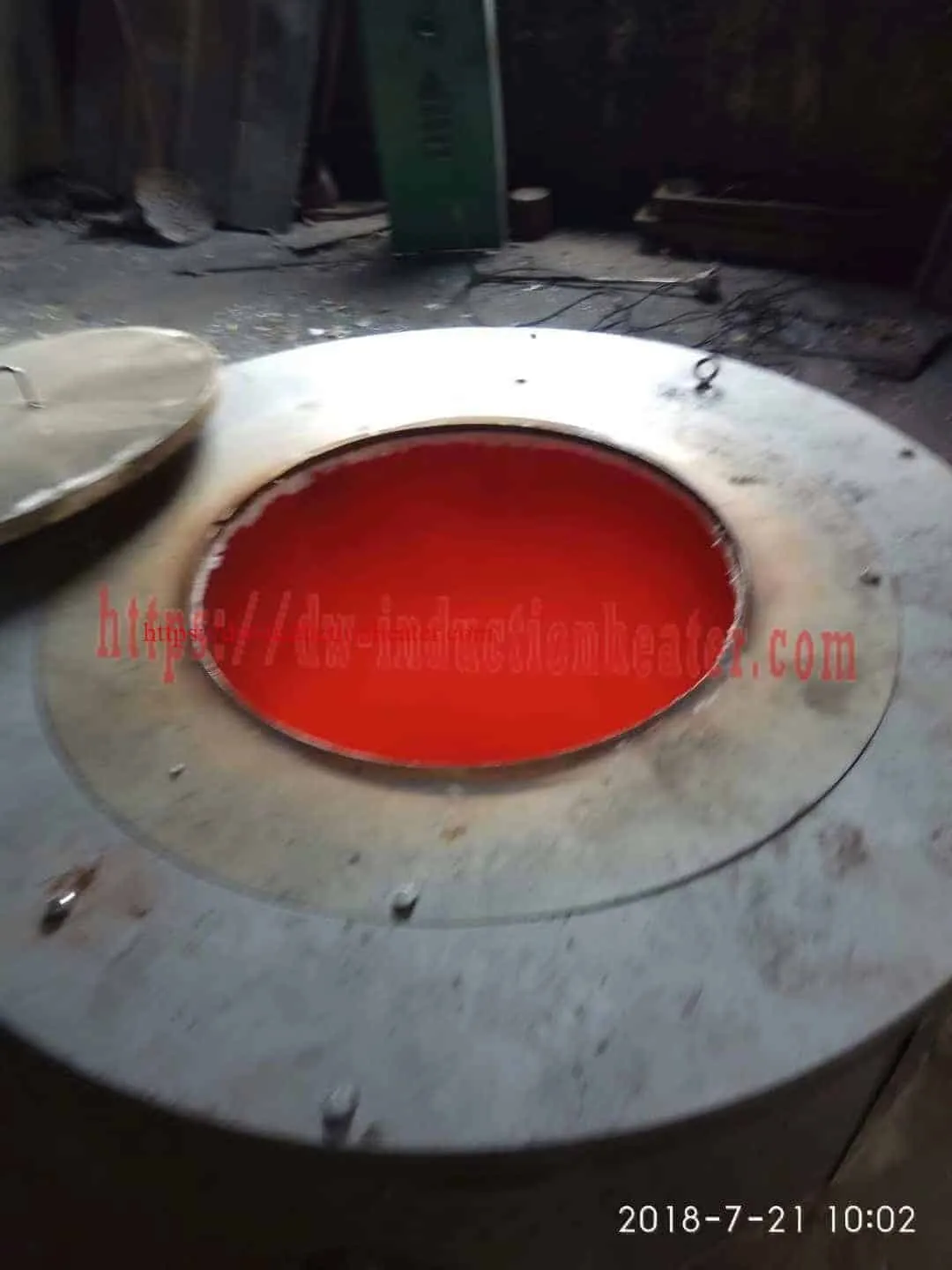

3. Melting and keep-warm holding. After the bath forms, the output is reduced and the melt is held at the pouring temperature while electromagnetic stirring keeps the bath uniform. This is what turns the machine from a batch melter into a working furnace, and it is the duty used for low-melting-point non-ferrous metals where the melt must stay fluid between charges.

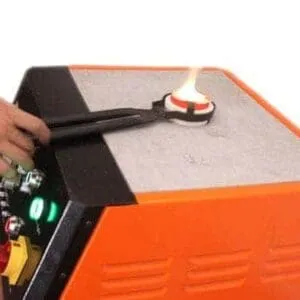

4. Laboratory, sample casting and small foundry work. For batches from 5 kg upward, HLQ publishes a separate induction melting aluminium for laboratories and small-batch casting range with 15-120 kW units, and the medium-frequency band is the same principle at a smaller scale.
Related process equipment for the same aluminium plants – including the copper and brass melting furnaces and the ingot casting line – is listed on the copper scrap melting furnace, melting aluminium furnace and aluminium induction furnace product pages.
Suitable Materials
The published SMJD table covers four feed families. For each model it gives the melting capacity in kilograms for steel and stainless steel, for copper, gold and silver scrap and slag, and for aluminium – including aluminium alloy, aluminium scrap, aluminium slag and pop can.
| Feed family | Melting capacity range across the SMJD series | Engineering notes |
|---|---|---|
| Pure aluminium | 150 – 1,200 kg | Excellent. Easy to melt, good fluidity, lowest dross and the most predictable result. This is the reference charge for every model in the range. |
| Aluminium ingots | 150 – 1,200 kg | Excellent. The recommended feedstock: stable melting, predictable composition and a clean bath. |
| Al-Si casting alloy (ADC12, A356) | 150 – 1,200 kg | Excellent. Die casting, automotive and general casting work. |
| Al-Mg alloy | 150 – 1,200 kg | Good. Temperature control and fluxing are needed to limit oxidation and burning loss. |
| Al-Cu alloy | 150 – 1,200 kg | Good. Temperature uniformity and alloy mixing determine the casting quality. |
| Aluminium alloy scrap | 150 – 1,200 kg | Good, provided it is sorted by alloy grade. Mixed grades give an unstable melt composition. |
| Aluminium cans | 150 – 1,200 kg | Conditional. Thin and coated – they must be cleaned, dried and charged carefully to limit dross. |
| Aluminium chips and turnings | 150 – 1,200 kg | Conditional. Dry and compacted, with all oil, water and cutting fluid removed. Pre-compaction is recommended to improve yield. |
| Steel and stainless steel | 150 – 1,200 kg | Same published capacity column as aluminium in every model, but at a much higher melt temperature. |
| Copper, gold, silver scrap and slag | 500 – 3,000 kg | The middle column of the published table – it is not the aluminium figure. Copper, gold and silver are non-ferrous but dense metals and their thermal load is entirely different. |
For the wider plant picture, the aluminium smelter with induction heating page covers the same machines in the production frame – feed streams in, melt out, dross off, alloy correction, ingot out – and the aluminium scrap recycling melting process reference document covers the remelting sequence in more detail.
Note on metal selection: low-melting-point non-ferrous metals such as zinc, tin and lead are melted and held on this type of furnace, and HLQ publishes a dedicated lead, tin and zinc smelting furnace for 100-5,000 kg batches. Metals such as cadmium, lead and mercury require dedicated handling, extraction and containment that a general aluminium installation is not designed for, so they are not treated here.
Working Principle
The chain from mains electricity to molten metal is short and each stage has a published specification.

The published principle runs as follows. The rectifier filter circuit converts AC into DC. The control circuit converts that DC into high-frequency magnetic energy. The changing current in the coil produces a changing magnetic field, the field lines pass through the crucible and induce eddy currents in it, and the crucible itself is heated. Heat then transfers from the crucible wall into the aluminium alloy.
Two consequences follow from that and they drive every operating decision on the machine. First, heat enters the metal through the crucible wall, so the crucible grade and wall thickness set the melt rate limit. Second, the same field that heats the metal stirs it, so the bath is more uniform in temperature and composition than a flame-heated bath of the same size.
On the electrical side, the medium-frequency IGBT supply uses current inverting control with soft-switching resonance dual-control and frequency tracking, giving an output range of 1 kHz to 20 kHz in the standard medium-frequency series, with automatic tracking over the whole band and no scene adjustment needed. The frequency is not a fixed property of the furnace – it is a variable set to match the batch size and the crucible, which is why the SMJD sheet quotes an oscillation band of 1 kHz to 100 kHz customisable to the customer request.
The frequency also decides how deep the heat penetrates. Current penetration depth follows the published relation delta = 503 x square root of (rho / (mu-r x f)), with rho approximately 0.25 micro-ohm-metre for molten aluminium and mu-r = 1. For molten aluminium that gives the following published reference values.
| Frequency | 4 kHz | 10 kHz | 20 kHz | 80 kHz |
|---|---|---|---|---|
| Current penetration depth | approx. 4.0 mm | approx. 2.5 mm | approx. 1.8 mm | approx. 0.9 mm |
The practical reading is simple: a lower frequency drives current deeper into the wall, which suits a larger batch and a thicker crucible, while a higher frequency concentrates the heating near the surface, which suits small batches and gives faster response. Frequency per metal is published as approximately 0.5-20 kHz for aluminium, 0.25-8 kHz for copper, 0.5-2.5 kHz for iron and steel, and 1-80 kHz for gold.
Technical Specifications
The following three tables are reproduced from the published SMJD induction melting furnace parameter document.
SMJD series melting capacity
| Type | Input power | Steel and stainless steel | Copper, gold, silver (scrap, slag) | Aluminium, aluminium alloy, aluminium scrap, aluminium slag, pop can | Max temperature |
|---|---|---|---|---|---|
| SMJD-463 | 60 kW | 200 kg | 500 kg | 200 kg | 1800 °C |
| SMJD-480 | 60 kW | 150 kg | 500 kg | 150 kg | 1800 °C |
| SMJD-580 | 80 kW | 200 kg | 600 kg | 200 kg | 1800 °C |
| SMJD-600 | 60 kW | 230 kg | 560 kg | 230 kg | 1800 °C |
| SMJD-900 | 120 kW | 300 kg | 900 kg | 300 kg | 1800 °C |
| SMJD-905 | 80 kW | 300 kg | 900 kg | 300 kg | 1800 °C |
| SMJD-1250 | 80 kW | 400 kg | 1,200 kg | 400 kg | 1800 °C |
| SMJD-1250 | 120 kW | 450 kg | 1,350 kg | 450 kg | 1800 °C |
| SMJD-1500 | 120 kW | 500 kg | 1,500 kg | 500 kg | 1800 °C |
| SMJD-1550 | 120 kW | 520 kg | 1,560 kg | 520 kg | 1800 °C |
| SMJD-1700 | 160 kW | 600 kg | 1,700 kg | 600 kg | 1800 °C |
| SMJD-2300 | 160 kW | 800 kg | 2,000 kg | 800 kg | 1800 °C |
| SMJD-3100 | 200 kW | 1,200 kg | 3,000 kg | 1,200 kg | 1800 °C |
The 1800 °C figure is the furnace’s maximum temperature rating, not an aluminium melt temperature. Aluminium melts at 660.32 °C and is normally held at 680-760 °C for casting.
SMJD series main technical parameters
| Type | Output power | Input current | Input voltage | Oscillation frequency |
|---|---|---|---|---|
| SMJD-463 | 60 kW | 90 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-480 | 60 kW | 90 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-580 | 80 kW | 120 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-600 | 60 kW | 90 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-900 | 120 kW | 180 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-905 | 80 kW | 120 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-1250 | 80 kW | 120 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-1250 | 120 kW | 180 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-1500 | 120 kW | 180 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-1550 | 120 kW | 180 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-1700 | 160 kW | 240 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-2300 | 160 kW | 240 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
| SMJD-3100 | 200 kW | 300 A | 3-phase 380 V, 50-60 Hz +N | 1 kHz – 100 kHz, custom frequency per customer request |
SMJD series crucible specification
| Type | Specification | Upper mouth outer diameter A (+/-10 mm) | Upper mouth inner diameter B (+/-5 mm) | Bottom outer diameter C (+/-10 mm) | Total height H (+/-10 mm) |
|---|---|---|---|---|---|
| SMJD-463 | 463# | 565 mm | 500 mm | 310 mm | 617 mm |
| SMJD-480 | 480# | 510 mm | 420 mm | 400 mm | 710 mm |
| SMJD-580 | 580# | 420 mm | 360 mm | 300 mm | 840 mm |
| SMJD-600 | 600# | 620 mm | 525 mm | 620 mm | 470 mm |
| SMJD-900 | 900# | 520 mm | 425 mm | 510 mm | 960 mm |
| SMJD-905 | 905# | 620 mm | 530 mm | 620 mm | 650 mm |
| SMJD-1250 | 1250# | 620 mm | 535 mm | 620 mm | 850 mm |
| SMJD-1500 | 1500# | 735 mm | 640 mm | 460 mm | 900 mm |
| SMJD-1550 | 1550# | 775 mm | 682 mm | 400 mm | 750 mm |
| SMJD-1700 | 1700# | 610 mm | 500 mm | 610 mm | 1,200 mm |
| SMJD-2300 | 2300# | 880 mm | 775 mm | 355 mm | 1,000 mm |
| SMJD-3100 | 3100# | 780 mm | 645 mm | 780 mm | 1,400 mm |
Note on the fill limit: the crucible schedule above gives the physical vessel, and the published capacity in the first table is the working charge. Confirm the maximum safe fill for the specific vessel with HLQ before the first charge, and never charge above the fill line with cold metal.
Control, protection and furnace construction
| Function | Published specification |
|---|---|
| Power device | IGBT |
| Frequency control | Digital phase-locked-loop tracking with automatic load impedance matching |
| Power control | Closed-loop power control, avoiding temperature change caused by power down |
| Temperature control | PID heating control system; LED digital temperature controller with control accuracy up to 3 °C |
| Protection | Over-voltage, under-voltage, phase loss, over-current, over-heat protection; leakage automatic alarm with power cut-off; real-time parameter display, fault diagnosis and alarm |
| Furnace lining | Integral polycrystalline mullite fibre structure, rated above 1200 °C |
| Duty | 100% load duration, 24 hours continuous working at maximum power |
| Control functions | Automatic load matching, digital non-relay control, PLC interface, HMI interface, temperature feedback |
| Cooling and safety | Cooling water system with water-pressure protection, leak-furnace alarm, hydraulic tilting safety interlock |
| Furnace structure | IF/KGPS power supply, capacitor cabinet, furnace body, induction coil, crucible and lining, hydraulic tilting, water-cooled cable, water distributor |
| Crucible options | Graphite, silicon-carbide graphite or refractory-lined, selected by capacity, alloy and service life |
| Pouring method | Fixed crucible with manual ladling, manual or gearbox tilting, or hydraulic tilting |
| Temperature measurement | Thermocouple, immersion probe or infrared pyrometer; immersion measurement is common for molten aluminium |
| Supply input | 3-phase 380 / 415 / 440 / 480 V, 50/60 Hz, customisable to country and factory |
For a reference unit of the medium-frequency class with published tank and generator dimensions, HLQ’s medium frequency induction heating power supply page publishes a 300 kW set with a 1-20 kHz output, a 560 x 560 x 1,750 mm generator and a 1,060 x 460 x 670 mm compensating capacitor, constant output-voltage or constant output-power control modes, and published melting duties of up to 500 kg for gold, silver, copper and brass, up to 200 kg for steel and stainless steel, and up to 200 kg for aluminium and aluminium alloy.
Recommended Model Selection
Choose the furnace by the hourly output and the pouring method, not by the batch size alone. A 150 kg furnace is a 150 kg batch, not a 150 kg per hour machine. The published selection ladder below gives the power and frequency pairing that HLQ recommends for aluminium work at different scales.
| Application | Material | Recommended power | Frequency |
|---|---|---|---|
| Laboratory aluminium melting | Pure aluminium, small alloy samples | 15 – 30 kW | 10 – 20 kHz |
| Small jewellery or sample casting | Aluminium alloy, small ingots | 25 – 60 kW | 8 – 20 kHz |
| 50 – 100 kg workshop melting | Aluminium ingots, clean scrap | 60 – 120 kW | 4 – 10 kHz |
| 150 – 300 kg foundry furnace | Aluminium alloy, casting returns | 120 – 250 kW | 2 – 8 kHz |
| 300 – 500 kg production melting | Aluminium ingots, sorted scrap | 200 – 400 kW | 1 – 6 kHz |
| 500 – 1,000 kg recycling furnace | Aluminium scrap, chips, cans | 350 – 800 kW | 0.8 – 4 kHz |
| 1 – 2 tonne melting | Aluminium alloy production | 700 – 1,500 kW | 0.5 – 3 kHz |
| 2 – 5 tonne melting | Primary aluminium and large scrap remelt | 1,200 – 3,000 kW | 0.5 – 2 kHz |
Within the SMJD range, the aluminium capacity column runs from 150 kg at SMJD-480 to 1,200 kg at SMJD-3100, with input power rising from 60 kW to 200 kW across the same span. Because the published capacity is a batch weight, the honest way to compare models is by the charge rate you need. The published power densities for aluminium work are:
| Charge type | Published power density |
|---|---|
| Rapid batch ingot | 450 – 600 kW per tonne |
| Standard mixed charge | 350 – 450 kW per tonne |
| Scrap remelting | 300 – 400 kW per tonne |
| Holding at pouring temperature | 100 – 200 kW per tonne |
| Continuous casting | 250 – 350 kW per tonne |
The lowest published figure on this machine is the aluminium column of SMJD-480 at 150 kg with 60 kW, which is 400 kW per tonne – squarely inside the published scrap remelting band. The 200 kW SMJD-3100 at 1,200 kg is 167 kW per tonne, which is below the published rapid ingot band, so a buyer who needs 1,200 kg of fast ingot production per hour is not served by the standard SMJD-3100 rating and should discuss the duty with HLQ rather than assume the nameplate is the answer.
For a tilting machine where the batch must be poured cleanly, the published options are a fixed crucible furnace with manual ladling for small batches, a manual or gearbox tilting furnace for small-to-medium pouring, and a hydraulic tilting furnace for larger batches, safer and smoother pouring.
Below the SMJD range, the smaller DW-MF medium-frequency metals melting series is published with a 1-20 kHz oscillation band (normally 4, 8, 11, 15 or 20 kHz), a generator input of 70-550 V, a desired input of 3 x 380 V +/-20 % at 50/60 Hz, 100% duty for 24 hours, weights from 50 kg to 145 kg, and published aluminium melting abilities of 3, 6, 12, 21, 30, 40, 50 and 75 kg across DW-MF-15 to DW-MF-160. Melting takes about 30-50 minutes for the first melt in a cold furnace and about 20-30 minutes for later charges into a hot one.
Process Workflow
The published operating sequence has ten controlled steps, followed by the keep-warm stage that turns the furnace into a working furnace rather than a batch melter.

| Step | Action | Control point |
|---|---|---|
| 1 | Inspect the power supply, cooling water, crucible, hydraulics and emergency stop | Water flow and alarms |
| 2 | Preheat the crucible gradually (new crucible or after a long shutdown) | Avoid thermal shock |
| 3 | Charge dry ingots or clean scrap | No wet, oily or sealed items |
| 4 | Increase power gradually | Follow the operating procedure |
| 5 | Melt until the charge collapses into a bath | First collapse complete |
| 6 | Add more charge after the first collapse | Respect safe fill limits |
| 7 | Apply refining flux if required and remove dross | Melt cleanliness |
| 8 | Measure the temperature | Immersion probe or sensor |
| 9 | Reduce power and hold at the pouring temperature | Avoid overheating |
| 10 | Tilt and pour; clean and inspect the crucible | Smooth pouring |
Two safety rules run through the whole sequence and are not optional. The first is that every aluminium charge must be completely dry – moisture, sealed containers, oil and trapped liquid can cause dangerous explosions when placed into molten aluminium. The second is that cold metal must never be dropped into a hot bath; the crucible is preheated gradually and the charge is added in stages to avoid thermal shock and crucible cracking.
Common Problems and Solutions
| Problem | Possible cause | Solution |
|---|---|---|
| Melting is too slow | Power too low, charge too large, poor crucible or low coupling | Increase power, optimise charge size, check the crucible, confirm capacity |
| Excessive dross | Overheating, dirty scrap, thin cans, excessive stirring, long holding | Control temperature, clean and sort scrap, reduce holding time, use flux |
| Crucible cracks | Thermal shock, poor preheating, impact, wrong crucible | Preheat gradually, do not drop charge, select the correct crucible |
| Coil overheating | Insufficient cooling water, scale, pump failure, high inlet temperature | Check flow, clean the circuit, maintain the pump, use closed-loop cooling |
| Unstable temperature | Poor measurement, unstable power, uneven charging, heat loss | Use a reliable probe, stabilise power, improve insulation, standardise charging |
| Molten metal contamination | Mixed scrap, dirty charge, wrong flux, damaged crucible, contaminated tools | Sort materials, clean the charge, use dedicated tools, maintain the crucible |
| Tilting is not smooth | Air in hydraulics, cylinder leak, misalignment, overload | Bleed the system, check seals, align the shaft, avoid overfilling |
| Frequency will not lock / no output | Capacitor bank out of tune, coil or water fault | Check the capacitor cabinet, verify cooling-water flow and the water-pressure interlock |
Two of these deserve emphasis because they are the ones that destroy furnaces rather than merely slowing production. Crucible cracks come from thermal shock, and thermal shock comes from charging cold metal into a hot vessel. And coil overheating is a cooling circuit fault, not a heating fault – the coil is water-cooled and it will fail if the flow is restricted, if the circuit is scaled up or if the pump stops, whatever the furnace is doing at the time.
Engineering Selection Guide

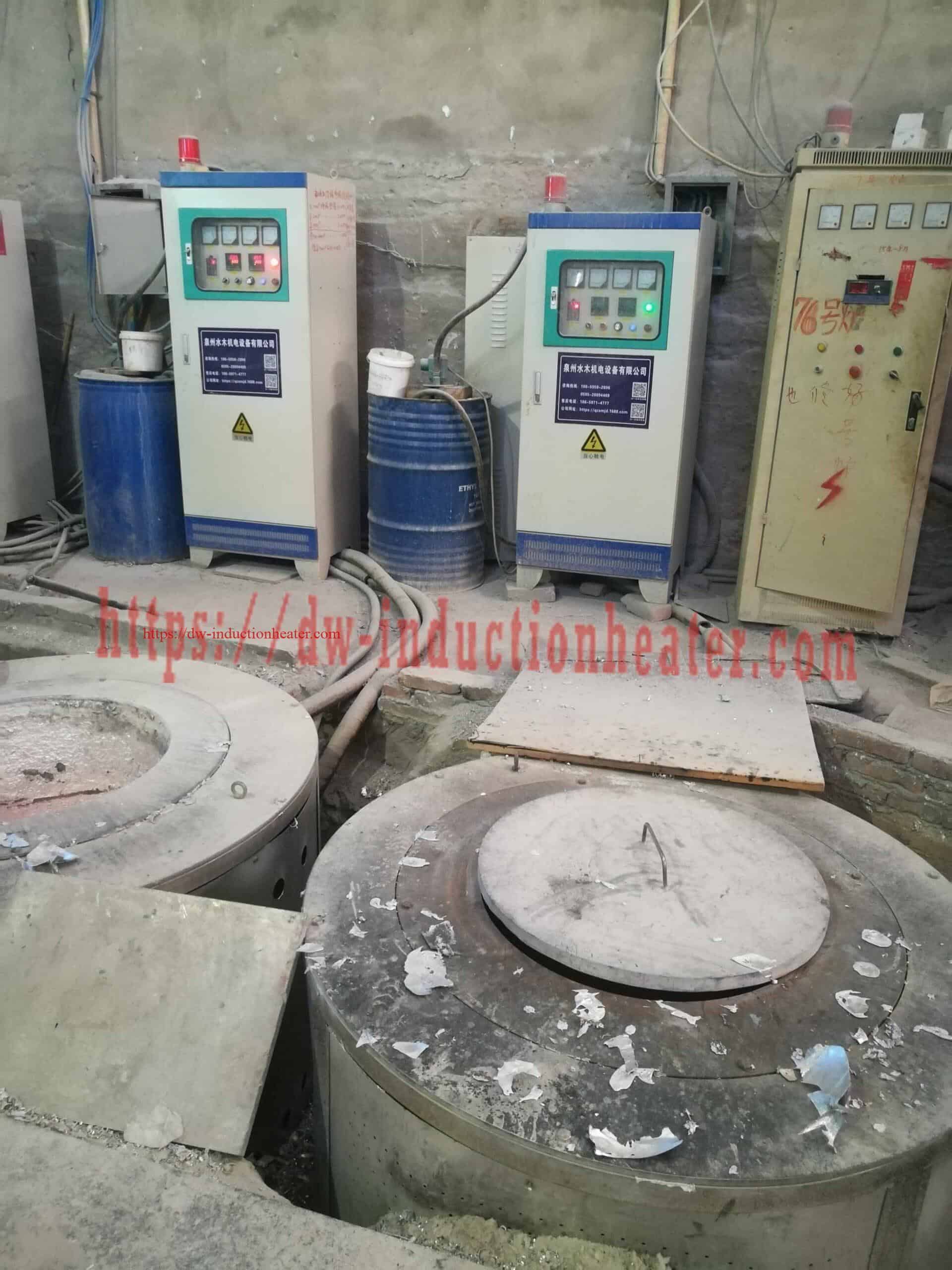

Below is the arrangement of a complete melting cell. Power, cooling, control and metal handling are shown as separate zones because that separation is what keeps heat, noise and flux fume away from the operator.

The following table lists the factors that have to be confirmed before a model is fixed. Each row is a published selection factor rather than a general observation.
| Factor | What to confirm | Recommendation |
|---|---|---|
| Capacity | Batch weight and kg/h | A 150 kg furnace is not 150 kg per hour; size the power for the hourly rate |
| Power | Heat to melt and superheat, plus losses and holding | Theoretical approximately 0.29-0.30 kWh/kg; add a design margin |
| Frequency | Batch and crucible size | 10-20 kHz for laboratory size; 4-10 kHz for 50-100 kg; lower as the batch grows |
| Furnace structure | Pouring method | Fixed for ladling; manual or gearbox tilting for small pours; hydraulic for larger batches |
| Crucible | Grade and life | Use a suitable graphite grade; low-quality crucibles may crack or contaminate the melt |
| Factory supply | Transformer, cable, voltage | Confirm before ordering – 3-phase 380 V, 50-60 Hz +N is the published input |
| Cooling | Closed tower or chiller | A closed loop avoids scale and unstable water temperature in the coil and capacitors |
| Safety | Dry charging, PPE, ventilation | Include emergency stop, spill protection and flux-fume ventilation |
| Automation | Level of control required | PLC and HMI interface are published; manual, timer, PLC or HMI are all supported |
| Energy budget | Consumption reference | Aluminium 500-780 kWh per tonne in practice; confirm by testing on your own charge |
On the energy figures, it is worth being precise. The theoretical heat to melt and hold aluminium at about 720 °C is approximately 0.29-0.30 kWh/kg. The published practical consumption reference for aluminium is 500-780 kWh per tonne, against 560-900 for steel, 550-850 for cast iron and 310-500 for copper. Actual consumption is always higher than the theoretical figure because of coil, crucible and heat losses, so confirm by measuring on your own charge rather than by calculation alone.
On transformer and cable sizing there is a published arithmetic caveat worth reading before the order is placed. At 380 V the published output kW and the published input current are only consistent at a power factor of one – which is 59.2 kVA at 90 A, 79.0 kVA at 120 A, 118.5 kVA at 180 A, 158.0 kVA at 240 A and 197.5 kVA at 300 A. Real inverters never hold a power factor of exactly one, so at a power factor of 0.95 the same powers would draw roughly 96, 128, 192, 256 and 320 A. Size the transformer, cable and breaker on the higher figure and confirm with HLQ before the switchgear is ordered.
If the specification needs to be built up from the process rather than from a model number, the published aluminium melting furnace selection guide works through the same choice by alloy, kg/h, melting time, power supply and pouring method.
Advantages and Limitations

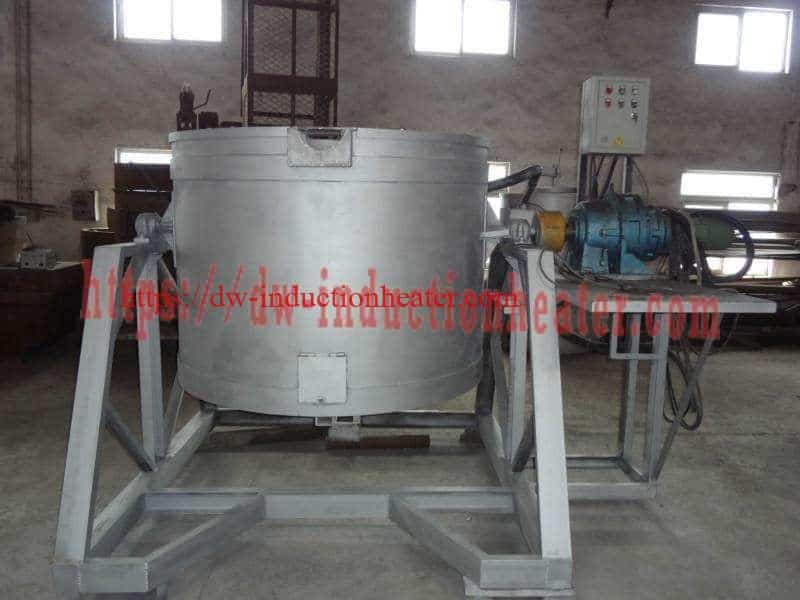

| Advantages | Limitations |
|---|---|
| No open flame, less smoke, better workshop environment | Higher initial investment than a simple gas furnace |
| Lower oxidation and dross than flame heating when operated correctly | Needs sufficient transformer and supply capacity |
| Electronic power control keeps the temperature stable at 3 °C controller accuracy | The coil, capacitors and power supply all need cooling water |
| Electromagnetic stirring evens temperature and composition across the bath | Graphite crucible life must be managed and budgeted for |
| Easy to automate with PLC and HMI, with automatic load matching | Wet, oily or contaminated scrap causes safety and quality problems |
| Tilting allows smoother pouring and a cleaner pour | Mixed alloy scrap gives an unstable composition; operators need training |
| 100% load duration for 24 hours at maximum power | The published capacity is a batch weight, not an hourly rate |
| Integral mullite fibre lining rated above 1200 °C, low energy consumption | Published capacity and published power density do not always cover fast-ingot duty – confirm the duty |
On energy savings, two published figures exist and both are quoted here rather than resolved. The product pages state 20-40% saving against a diesel workshop furnace; the printed manual states 20-30% saving against gas and oil fired equipment. The difference comes from the comparison baseline, not from the machine. Whichever figure is quoted in your own proposal, the claim should name the baseline it is measured against.
Why Choose HLQ?
HLQ has published this furnace family for more than 25 years of induction heating development, and the reasons to buy from the manufacturer are specific rather than general.
Published documentation, not marketing claims. The capacity table, the main technical parameters and the crucible dimension schedule in this article all come from an official parameter document. The aluminium, copper and iron induction melting furnace manual covers the heating principle, the packing, shipping and storage requirements, the warranty and the operating FAQ, and it is available to read before you order rather than after.

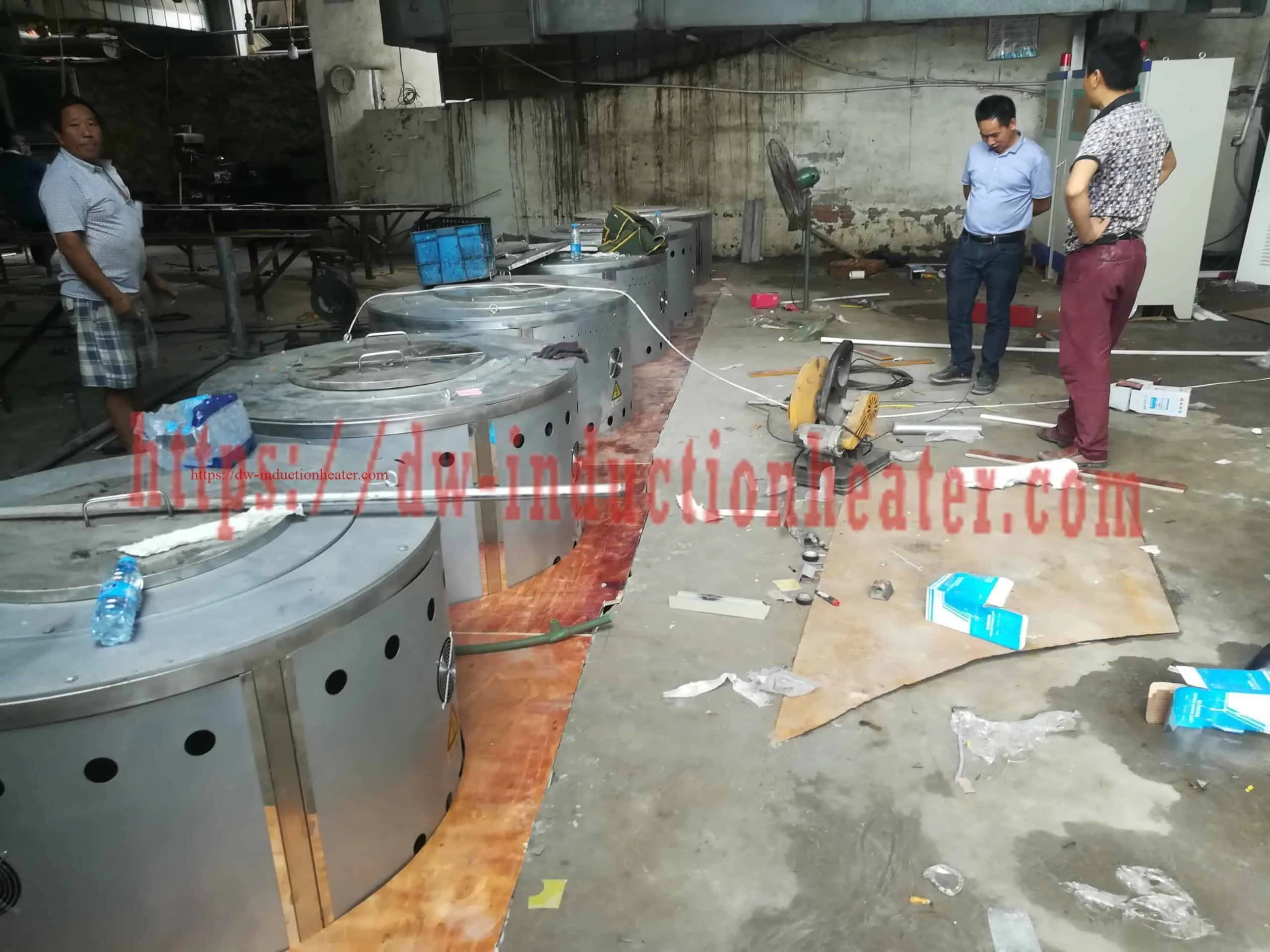

Tested before it ships. The machine is test-run by technical staff before shipment, and quality control follows TQM with photographs and video available on request. HLQ also sends engineers for installation, commissioning and operator training.
Warranty. Twelve months from the date the contract is signed.
Delivery and storage. Packing is film, then a paper box, then a wooden exporting case, then foam. Shipping is free to the buyer’s shipper in China or direct to any main port in China. Storage conditions are -20 to 60 °C and 0-95% relative humidity with no dew, no corrosive gases and no corrosive liquids.
Support and documentation in English. The published technical data, the parameter sheets and the manual are all available in English, which matters when the person who will commission the furnace is not the person who ordered it.

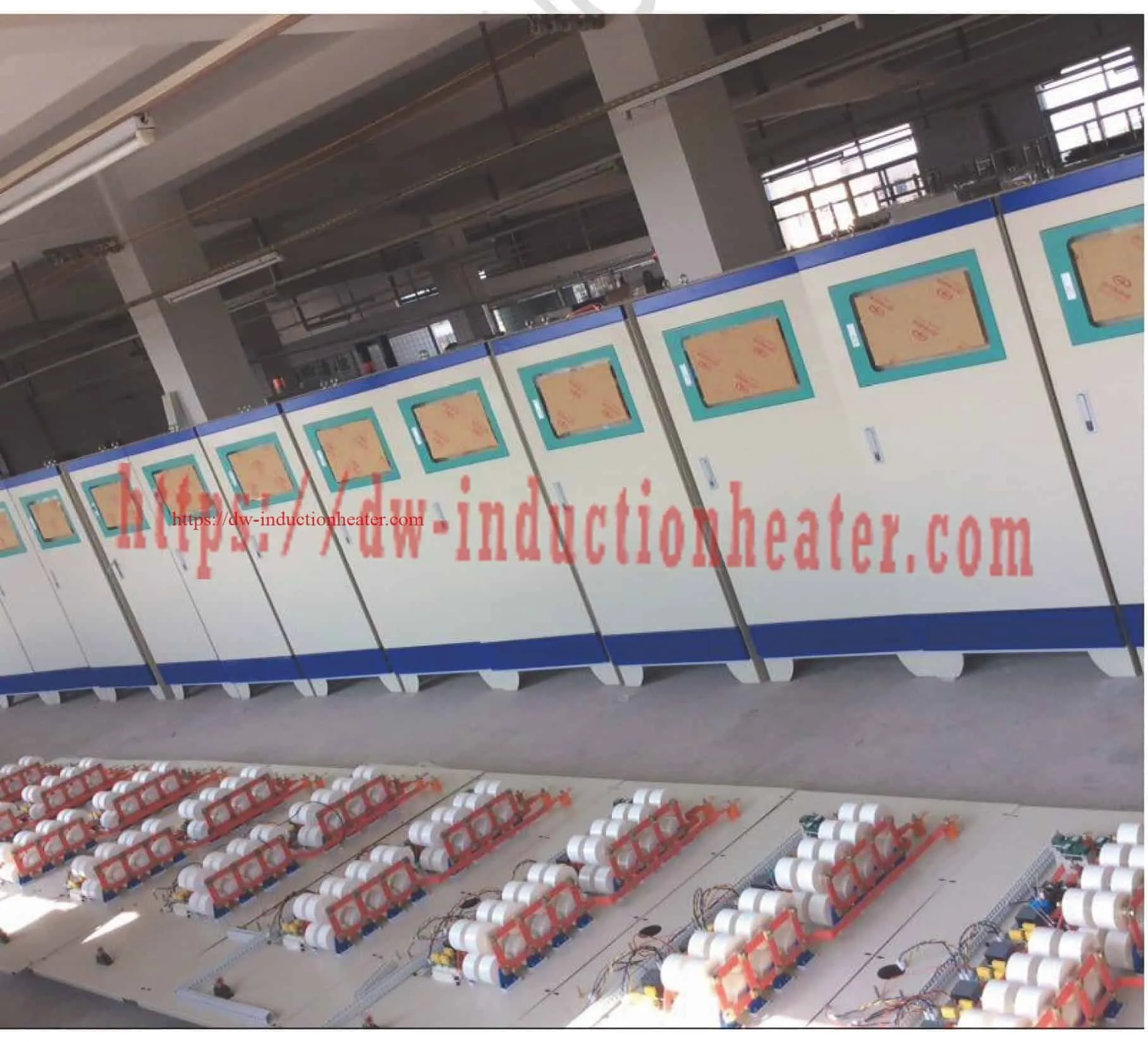

A complete range behind one supplier. The medium-frequency melting furnace, the power supplies, the capacitor cabinets, the tilting frames, the crucible range, the induction heating coils and the cooling systems are all built in the same organisation, so a change of batch size or of material does not mean changing supplier for half the cell.
For the wider aluminium range, HLQ also publishes a smelter with induction heating page covering the production flow from feed to ingot, and a separate induction melting furnace page covering the small laboratory and sample-casting scale. The same foundry reference can be reached from the HLQ induction heating home page.
6 Core FAQs
1. What is the difference between a medium-frequency and a high-frequency aluminum melting furnace?
The difference is how deep the current penetrates into the crucible wall, which is what sets the batch size the furnace can handle. The published penetration depth for molten aluminium is approximately 4.0 mm at 4 kHz, 2.5 mm at 10 kHz, 1.8 mm at 20 kHz and 0.9 mm at 80 kHz. A lower frequency drives current deeper into the wall, which suits a larger batch and a thicker crucible; a higher frequency concentrates the heating near the surface, which suits small batches and gives faster response. The SMJD sheet therefore quotes an oscillation band of 1 kHz to 100 kHz customisable to the customer request, while the standard medium-frequency IGBT series runs 1-20 kHz. The medium-frequency band is the right default for aluminium because aluminium needs relatively deep penetration at a relatively low temperature.
2. How much aluminum can one SMJD furnace melt, and how much power does it need?
The published aluminium column runs from 150 kg to 1,200 kg per batch, from the 60 kW SMJD-480 to the 200 kW SMJD-3100, with input current rising from 90 A to 300 A on a 3-phase 380 V, 50-60 Hz supply. Thirteen model entries are published, of which SMJD-1250 appears twice – once at 80 kW and once at 120 kW – because the two ratings share one crucible and differ only in the power supply. The published capacity is a batch weight, not an hourly rate, so the correct comparison is the kg/h you need against the published power density for your charge type: 450-600 kW per tonne for rapid ingot, 350-450 for a standard mixed charge, 300-400 for scrap remelting and 100-200 for holding.
3. Can this furnace melt aluminum scrap and chips, or only ingots?
Both, but the preparation is what decides the yield. Pure aluminium and aluminium ingots are rated excellent because they melt cleanly and predictably. Sorted alloy scrap is rated good, provided it is sorted by alloy grade – mixed grades give an unstable melt composition. Cans and chips are rated conditional: they are thin, coated or contaminated, so they must be cleaned, dried, and charged carefully, and chips and turnings should be dry and free of oil, water and cutting fluid, with briquetting or pre-compaction recommended to improve yield and reduce oxidation. The single most important safety rule is that the charge must be dry, because moisture, sealed containers, oil and trapped liquid can cause dangerous explosions in molten aluminium.
4. At what temperature does the aluminum melt, and how is that temperature controlled?
Pure aluminium melts at 660.32 °C, and production melts are normally held at 680-760 °C depending on the alloy and the casting process. Temperature is controlled by the PID heating control system and the LED digital temperature controller, which has a published control accuracy up to 3 °C, with measurement by thermocouple, immersion probe or infrared pyrometer – immersion measurement being the common choice for molten aluminium. Holding the melt at the pouring temperature is a deliberate operating state, not an idle state: the published holding power density is 100-200 kW per tonne, and electromagnetic stirring keeps the bath uniform while it is held.
5. What does the plant need besides the furnace itself?
Three utilities and one handling area. Electricity: 3-phase 380 V, 50-60 Hz with neutral, at 90-300 A depending on model. Cooling water: the coil, the capacitors and the power supply all require it, and a closed-loop tower or industrial chiller is recommended because an open loop scales up and destabilises the water temperature. Extraction: a hood over the furnace with flux-fume filtration, because flux and dross handling generate fume. And a pouring area: a ladle and transfer provision, ingot moulds or a die-casting station, and a dross skimming point. Plant utilities – transformer, cable, ventilation and safety – should be confirmed with HLQ before the switchgear is ordered.
6. Is this furnace suitable for keeping the melt hot rather than melting fresh metal every time?
Yes – that is the keep-warm duty, and it is what separates a working furnace from a batch melter. Once the bath has formed, the output is reduced and the melt is held at the pouring temperature while continuous electromagnetic stirring keeps it thermally and chemically uniform, and metal is drawn off as required. This is the duty used for low-melting-point non-ferrous metals where the melt must stay fluid between charges, and HLQ publishes the same melting-and-holding mechanism on its zinc alloy melting furnace. The published holding power density of 100-200 kW per tonne is much lower than the melting figure, which is why a holding furnace is inexpensive to run once it is up to temperature.
