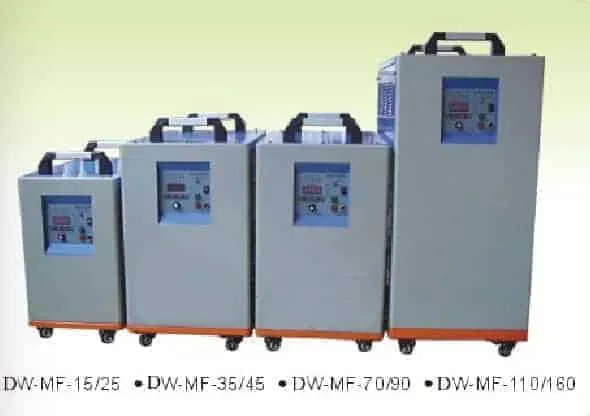

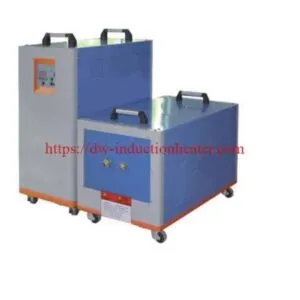

MF-45 medium frequency heating generator
Description
Top MF-45 medium frequency heating generator manufacturer-MF-45kw solid state heating device,IGBT medium frequency induction heating system.
Main Features:
- Big power, low frequency and good diathermancy.
- High frequency, low power consumption, easy installation and simple operation.
- It can continuously work for 24 hours for the comprehensive full load design.
- It adopts the IGBT inverter circuit in parallel connection, which ha high load adaptability.
- It has functions as over-voltage, over-current, over-heat, phase loss and water shortage alarm indications as automatic control and protection.
- Compared with other heating models, it can significantly promote the economic benefits, improve the quality of heated work pieces, save the energy and material, alleviate labor intensity and improve the production environment.
Main application:
- Medium frequency Induction Heating Machines are usually used in the penetration heating occasions, for example, rod heating for forging rod end heating
- Melting of almost all kinds of metals
- Heating of stators or rotors for fitting
- Heating of tube end for extrusion

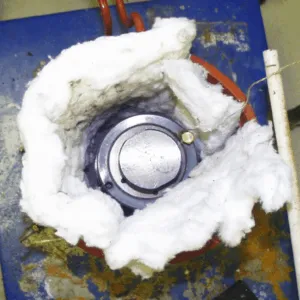

- Heating of moulds deep quenching of shafts and gears tempering or preheating of weld joint and so on
Technical Parameters:
Model | DW-MF-45KW | |
Input power desire | 3 phase,380V±10%, 50/60HZ | |
Oscillate power max | 45KW | |
Max input current | 60A | |
Oscillate frequency | 1-20KHz | |
Cooling water desire | >0.2MPa 6L/Min | |
Duty cycle | 100% ,40°C | |
Dimensions | Generator | 560*270*470mm |
Transformer | 550*300*420mm | |
Net weight | 45kg/50kg | |
Cable length | 2-6(Meters) | |
Spare Parts For DW-MF-45KW
Item | Name of machine or parts | Specification | Amount |
1 | DW-MF-45KW Generator | – | 1 pc |
2 | DW-MF-45KW transformer | – | 1 pc |
3 | Foot switch | – | 1 pc |
4 | Induction Coils | – | 2 sets |
5 | Coil connect pole | – | 2 set |
6 | Instruction Manual | – | 1 |
7 | Packing list and receipt | – | 1 |
8 | Guarantee card | – | 1 |
9 | Products certificate | – | 1 |
[pdf-embedder url=”https://dw-inductionheater.com/wp-content/uploads/2018/09/HLQ-Brochure.pdf”]
