Induction Preheating Pipeline Machine

Induction Pipeline Preheating Machine for Welding and PWHT

The HLQ MYD Series Induction Pipeline Preheating Machine is an industrial induction heating system designed for controlled heating of steel pipelines, welded pipe joints, pressure components and fabricated metal structures.

The system uses IGBT induction power conversion, flexible induction heating coils, PLC-based operation and multi-point temperature monitoring to support pipeline welding preheating, interpass temperature management, postheating and selected post-weld heat treatment (PWHT) applications.

The published MYD series includes six models with nominal output power ratings from 40 kW to 120 kW and a listed operating frequency range of 2–36 kHz.

Typical applications include oil and gas pipeline welding, petrochemical piping, steel pipe fabrication, pipeline repair, field welding operations and controlled heating of large welded components.

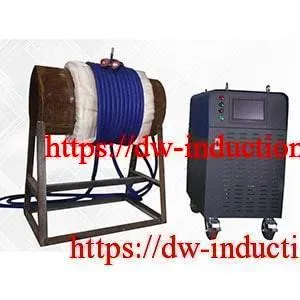

HLQ MYD induction pipeline preheating machine with PLC control and flexible induction heating coil
HLQ MYD Series induction heating equipment with a power generator and flexible induction coil arrangement.

Quick Answer

What is an induction pipeline preheating machine?

An induction pipeline preheating machine is an electrically powered industrial heating system that uses electromagnetic induction to generate controlled heat inside conductive pipeline materials.

A flexible induction heating coil is typically installed around the pipe near the weld joint. Alternating current in the coil creates a magnetic field that induces electrical currents inside the pipe wall, producing heat through electrical resistance.

The HLQ MYD series provides six published output ratings: 40 kW, 50 kW, 60 kW, 80 kW, 100 kW and 120 kW. The target product page lists an operating frequency range of 2–36 kHz, three-phase 380 V input as standard and optional three-phase 220 V or 440 V configurations.

Primary applications: Pipeline welding preheating, pipe joint heating, interpass temperature management, postheating, selected PWHT operations and industrial pipe fabrication.

Key equipment features: IGBT power conversion, flexible induction coils, PLC touchscreen operation, temperature monitoring, optional temperature recording and air-cooled generator construction.

Engineering note: The appropriate power rating depends on pipe diameter, wall thickness, heated-zone width, target temperature, required heating time and thermal losses. Published generator power alone does not establish a guaranteed pipe-heating capacity.

Table of Contents

  1. What is an Induction Pipeline Preheating Machine?
  2. Key Applications
  3. Suitable Materials
  4. Working Principle
  5. Technical Specifications
  6. Recommended Model Selection
  7. Process Workflow
  8. Common Problems and Solutions
  9. Engineering Selection Guide
  10. Advantages and Limitations
  11. Why Choose HLQ?
  12. 10 Core FAQs

What is an Induction Pipeline Preheating Machine?

An induction pipeline preheating machine is a specialized induction heating system designed to raise and control the temperature of conductive pipeline materials before, during or after welding operations.

The equipment generates high-frequency electrical energy and supplies it to an induction heating coil installed around the required pipe section.

Unlike conventional external heating elements, induction heating produces thermal energy inside the conductive pipe wall.

The resulting heat is distributed through the surrounding metal by thermal conduction.

For pipeline welding, the induction coil is typically positioned around the weld area to establish the required preheating zone.

Suitable temperature sensors can monitor selected points on the pipe surface, while the control system regulates the heating process.

Main Components of an Induction Pipeline Preheating System

Component Main Function Engineering Consideration
Induction Power Generator Converts electrical input into high-frequency induction power. Output rating, input requirements and operating duty.
IGBT Power Module Provides high-frequency electrical power conversion. Electrical efficiency and thermal operating limits.
PLC Touchscreen Provides the operator interface. Temperature settings, operation and fault monitoring.
Flexible Induction Heating Coil Produces an alternating magnetic field around the pipe. Coil length, turns, insulation and electrical matching.
Connection Cable Connects the heating circuit to the power supply. Cable length, current capacity and insulation.
Thermocouple Measures workpiece temperature. Sensor type, position, calibration and attachment.
Temperature Controller Controls the heating process using temperature feedback. Control response and thermal-cycle requirements.
Temperature Recorder Documents temperature changes during heating. Recording channels, accuracy and data traceability.
Thermal Insulation Blanket Reduces heat losses from the heated region. Temperature resistance and coverage.
Cooling System Removes heat from designated equipment components. Cooling method, ambient temperature and operating duty.

Why Use Induction Heating for Pipeline Welding?

Pipeline welding frequently requires controlled temperature conditions to manage welding-related thermal stresses and metallurgical behavior.

For suitable materials, preheating can reduce the cooling rate of the weld and heat-affected zone.

This can help reduce the risk of hydrogen-assisted cracking when combined with appropriate welding consumables, material preparation and qualified welding procedures.

Induction heating offers a flexible means of applying heat around selected pipe sections without relying on an open flame as the primary heat source.

However, the suitability of induction heating must be established for the actual pipe geometry, material grade and welding specification.

Key Applications

1. Pipeline Welding Preheating

Weld preheating raises the temperature of the pipe near the welding area before welding begins.

The required preheat temperature depends on several factors, including steel composition, carbon equivalent, wall thickness, welding consumables, hydrogen control and the applicable welding procedure specification (WPS).

For carbon-steel pipelines, induction heating coils can be installed around the pipe to provide localized heating near the joint.

The actual temperature must be verified using an appropriate measurement method.

For additional technical information, see the HLQ induction welding preheating system application guide.

2. Oil and Gas Pipeline Heating

Oil and gas pipeline projects often involve long sections of steel pipe requiring field welding, fabrication or maintenance.

Induction heating equipment can be used to establish controlled temperatures at appropriate welding locations.

Potential applications include:

  • Onshore pipeline construction.
  • Oil transmission pipeline welding.
  • Natural gas pipeline fabrication.
  • Pipeline weld repair preparation.
  • Petrochemical piping installation.
  • Industrial pipe assembly and maintenance.

Field installation requires consideration of the electrical supply, weather, worksite access, pipe supports and operating hazards.

Induction pipeline heating equipment used during oil and gas pipeline field construction
Industrial induction heating equipment used on a pipeline at an outdoor installation site.

3. Post-Weld Heat Treatment (PWHT)

Post-weld heat treatment is a controlled thermal process performed after welding when specified by the material requirements, construction code or qualified repair procedure.

Depending on the material and process, PWHT may reduce residual stresses, modify hardness or improve the suitability of a welded component for its intended service.

A typical PWHT procedure may require:

  • Controlled heating rates.
  • A specified holding-temperature range.
  • An appropriate holding period.
  • Controlled cooling rates.
  • Temperature monitoring at defined locations.
  • Documented temperature records.

A heating machine alone does not guarantee PWHT compliance. The entire thermal cycle must satisfy the approved procedure.

See the related post-weld heat treatment equipment application.

4. Pipe Joint Heating

Induction heating can be applied around selected pipe joints before joining, repair or other controlled thermal processes.

The required heating-zone width and temperature depend on the manufacturing or installation procedure.

Flexible induction cables are useful for adapting the heating arrangement to different pipe diameters and access conditions.

5. Pipeline Coating Preparation

Some pipeline coating processes require the steel surface to be heated within a specified temperature range before coating application.

Induction heating may be used for suitable pipe surfaces where controlled substrate heating is required.

The target temperature should be selected according to the coating manufacturer’s instructions, the substrate condition and the project specification.

For applications involving protective pipeline coatings, see the HLQ pipeline coating preheating equipment guide.

Coating preparation heating should not be confused with induction coating removal. These are different processes with different objectives and temperature requirements.

6. Pipeline Maintenance and Weld Repair

Existing industrial pipelines may require localized heating during approved welding repair operations.

The process may involve preheating the repair area, maintaining interpass temperature or carrying out a specified postheating cycle.

Heating an operating pipeline requires a dedicated hazard assessment.

Special attention is necessary when a pipeline contains flammable fluids, combustible vapors, pressure, internal deposits or temperature-sensitive linings.

7. Pressure Components and Industrial Piping

Controlled induction heating can also be considered for suitable welded pressure components and industrial piping assemblies.

The applicable material requirements, temperature limits and inspection standards must be established before selecting the equipment.

Pipeline Heating Application Comparison

Application Primary Objective Critical Parameters
Pipeline Welding Preheating Establish the required temperature before welding. WPS, material grade and preheat temperature.
Interpass Temperature Control Maintain temperature within the permitted welding range. Minimum and maximum interpass limits.
Postheating Maintain or increase temperature following welding. Specified temperature, time and cooling conditions.
PWHT Apply a specified post-weld thermal cycle. Heating rate, soak temperature, holding time and cooling rate.
Pipeline Coating Preparation Bring the substrate into the required coating temperature range. Coating requirements and surface temperature.
Pipeline Repair Provide controlled heating for an approved repair process. Repair procedure, material properties and hazards.
Industrial Pipe Fabrication Localized process heating. Pipe geometry and required thermal cycle.

Suitable Materials

Induction heating can be applied to electrically conductive materials.

The heating response depends on the electrical resistivity, magnetic permeability, thermal conductivity and geometry of the workpiece.

Carbon steel is a common material for pipeline induction heating because it can provide favorable electromagnetic coupling.

However, the correct heating procedure must be selected according to the actual steel grade and welding requirements.

Pipeline Material Compatibility

Material General Suitability Engineering Consideration
Carbon Steel Pipe Generally Suitable Common application for welding preheating.
Low-Alloy Steel Pipe Application-Dependent Requires grade-specific thermal procedures.
High-Strength Pipeline Steel Conditional Temperature exposure may affect mechanical properties.
Cr-Mo Alloy Steel Application-Dependent PWHT requirements may be particularly important.
Austenitic Stainless Steel Requires Evaluation Different magnetic behavior affects coupling.
Ferritic Stainless Steel Requires Evaluation Magnetic properties and thermal limits require review.
Cast Iron Pipe Conditional Thermal stress and cracking risks require assessment.
Aluminum Pipe Specialized Application Coil matching and different thermal properties must be evaluated.
Copper Pipe Specialized Application High thermal conductivity influences heating behavior.
Plastic Pipe Alone Not Directly Suitable Conventional induction heating requires an electrically conductive target.

Important Material Properties

Property Influence on Heating
Electrical Resistivity Influences the production of heat by induced electrical currents.
Magnetic Permeability Affects electromagnetic coupling and current penetration.
Thermal Conductivity Determines how heat spreads through and along the pipe wall.
Specific Heat Capacity Determines the energy needed for a given temperature rise.
Pipe Wall Thickness Influences thermal mass and through-wall temperature distribution.
Heat Treatment History Determines whether additional heating may affect material properties.
Pipe Contents Internal fluids may substantially increase the effective thermal load.

Working Principle

How Does Induction Pipeline Preheating Work?

The induction generator receives three-phase electrical power and converts it into high-frequency electrical energy.

This energy is transferred to an induction heating coil wrapped around the steel pipe.

The coil produces an alternating magnetic field that induces electrical currents within the conductive pipe wall.

These currents generate heat through electrical resistance.

The resulting thermal energy moves through the pipe wall and into adjacent steel through conduction.

Temperature sensors measure selected workpiece temperatures, allowing the heating process to be monitored and controlled.

Induction Pipeline Heating Process

Stage Process Result
1 Three-Phase Electrical Input Supplies energy to the generator.
2 IGBT Power Conversion Produces high-frequency electrical output.
3 Flexible Coil Energization Generates an alternating magnetic field.
4 Electromagnetic Coupling Induces electrical currents inside the pipe wall.
5 Resistance Heating Produces heat within the conductive steel.
6 Thermal Conduction Distributes heat through the pipe wall.
7 Temperature Measurement Monitors selected locations in the heated region.
8 Control and Recording Regulates and documents the thermal process where configured.

Flexible Induction Coil Arrangement

Flexible induction heating coils can be wrapped around suitable cylindrical workpieces, including steel pipelines and pipe joints.

The number of turns, coil coverage and connection arrangement must be matched to the generator and workpiece.

Different pipe diameters may require different coil lengths and installation patterns.

For more information, see the available flexible induction heating cables used for welding preheating and thermal treatment.

Flexible induction heating cable wrapped around a large diameter steel pipeline with thermal insulation
Flexible induction heating cable wrapped around a large steel pipe, with thermal insulation surrounding the treatment region.

Why Is Thermal Insulation Important?

Thermal insulation reduces heat transfer from the heated pipe surface to the surrounding environment.

For large pipe sections, heat losses can occur through radiation, natural or forced convection and conduction into adjacent pipe sections.

Appropriate insulation can help improve useful heating performance and reduce unwanted temperature gradients.

The insulation arrangement must comply with the maximum temperature and installation requirements of the selected heating equipment.

Factors Affecting Pipeline Heating Performance

Factor Effect Engineering Response
Pipe Outside Diameter Influences coil length and heated circumference. Match coil layout to pipe geometry.
Pipe Wall Thickness Affects thermal mass and through-wall temperature distribution. Estimate thermal energy and heating time.
Heating-Zone Length Determines the approximate volume of heated metal. Use the width required by the welding procedure.
Material Grade Affects electromagnetic coupling and temperature limits. Verify material properties and applicable procedure.
Coil Turns Influence electromagnetic coupling and field distribution. Use an electrically compatible coil configuration.
Insulation Reduces external heat loss. Select suitable insulation thickness and coverage.
Ambient Conditions Wind and temperature affect heat loss and cooling. Evaluate environmental conditions.
Internal Pipe Contents Can significantly increase the thermal load. Evaluate fluid mass, flow and process safety.
Power Supply Limits available electrical input. Verify actual input current and site capacity.
Temperature Sensors Determine where temperature is measured. Use a qualified monitoring arrangement.

Technical Specifications

The following specifications reproduce the principal published values for the HLQ MYD Induction Pipeline Preheating Machine series.

Certain published values are inconsistent with related MYD information or require clarification. Final equipment specifications should be confirmed before electrical installation or contractual acceptance.

MYD Series Technical Specifications

Parameter MYD-40 MYD-50 MYD-60 MYD-80 MYD-100 MYD-120
Published Output Power 40 kW 50 kW 60 kW 80 kW 100 kW 120 kW
Published Output Frequency 2–36 kHz 2–36 kHz 2–36 kHz 2–36 kHz 2–36 kHz 2–36 kHz
Listed Input Current 60 A 75 A 90 A 120 A 150 A 180 A
Standard Input Voltage 380 V 380 V 380 V 380 V 380 V 380 V
Input Phase 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Published Weight 130 kg 136 kg 140 kg 145 kg 168 kg 180 kg
Cooling Description Air Air Air Air Air Air
Control Interface PLC PLC PLC PLC PLC PLC
Published Cabinet Dimensions 800 × 560 × 1350 mm
Published Packing Dimensions 900 × 660 × 1560 mm
Optional Input Voltage Three-phase 220 V or 440 V configurations are mentioned in published product information.

Important Technical Notes

  • The target product page lists 2–36 kHz; some related MYD product pages list 2–30 kHz.
  • The published input-current values do not fully reconcile with the stated output power ratings at 380 V.
  • The published cabinet dimensions should be verified for each production model.
  • Actual continuous-duty capability and generator efficiency are not established by the available specifications.
  • The cooling arrangement of the selected induction coil and output cable must be confirmed.
  • Temperature-control accuracy and workpiece temperature uniformity must be specified separately.

Control and Monitoring Features

Feature Published Description Engineering Clarification
IGBT Inverter High-frequency induction power conversion. Actual conversion efficiency requires verified data.
PLC Touchscreen Digital equipment operation. Control functions depend on the installed configuration.
Temperature Monitoring Multi-point temperature measurement. Sensor locations depend on the heating procedure.
Temperature Channels Six channels mentioned in the product description. Confirm independent monitoring and control functions.
Temperature Tolerance ±3°C published claim. Measurement conditions and pipe-zone uniformity are unspecified.
Temperature Recorder Recording with optional printer. Confirm included accessories and data format.
Induction Coil Flexible or opening-type coil. Confirm the selected coil design and cooling arrangement.
Ambient Temperature Two conflicting operating ranges appear on the page. Confirm the approved environmental rating.

Available Heating System Accessories

Accessory Function Selection Notes
Flexible Induction Cable Coil Provides induction heating around pipes. Length, insulation and electrical matching.
Opening Induction Coil Supports selected removable-coil installations. Pipe diameter and access clearance.
Connection Cable Connects the generator and heating circuit. Approved length and operating requirements.
Thermal Insulation Blanket Reduces heat loss from the pipe surface. Temperature rating and coverage.
K-Type Thermocouple Measures workpiece temperature. Attachment method and calibration.
Thermocouple Extension Cable Connects the sensor to the measuring system. Correct thermocouple extension type.
Temperature Controller Regulates the heating process. Required thermal-cycle functions.
Temperature Recorder Documents temperature history. Recording accuracy and channel count.
Optional Printer Provides printed temperature records. Availability depends on configuration.

Accessories should be specified according to the actual pipeline heating requirements rather than assumed from generic product photographs.

The correct MYD model should be selected according to the thermal requirements of the workpiece and the operating conditions of the installation.

Pipe diameter alone is not sufficient to determine the correct induction generator power.

Two pipes with the same outside diameter may require different heating power because of differences in wall thickness, steel grade, heated-zone length, insulation and required heating time.

MYD Series Model Comparison

Model Published Output Preliminary Application Focus Critical Considerations
MYD-40 40 kW Localized pipeline weld preheating and smaller thermal loads. Heated steel mass, insulation and operating time.
MYD-50 50 kW General pipeline welding preheating. Required temperature and heating-zone width.
MYD-60 60 kW Medium industrial pipeline heating requirements. Pipe wall thickness and thermal losses.
MYD-80 80 kW Larger heating zones and higher thermal loads. Electrical supply and heating uniformity.
MYD-100 100 kW Demanding industrial heating applications. Sustained power capability and cooling.
MYD-120 120 kW Large heating regions requiring higher nominal power. Verified electrical input, duty and thermal performance.

These application descriptions are preliminary engineering guidance and do not establish guaranteed pipe diameters, heating rates or production capacities.

Model Selection by Project Requirement

Project Requirement Initial Selection Consideration Required Verification
Localized Weld Preheating MYD-40 / MYD-50 Required temperature and heating time.
General Pipeline Preheating MYD-50 / MYD-60 Wall thickness and heated-zone geometry.
Large Welded Pipe Assemblies MYD-60 / MYD-80 Useful thermal power and heat loss.
Heavy Industrial Pipe Heating MYD-80 / MYD-100 Supply capacity and thermal distribution.
Large Heating Zones MYD-100 / MYD-120 Sustained duty and actual heating performance.
Code-Controlled PWHT Application-Specific Calculation Complete thermal cycle, monitoring and acceptance requirements.

When Is a Higher-Power Model Necessary?

A higher-power generator may be required when the heated steel mass is larger, the permitted heating time is shorter or heat losses are greater.

However, increasing generator power does not automatically improve temperature uniformity.

For PWHT, temperature uniformity and compliance with the approved heating procedure may be more important than maximum heating speed.

Process Workflow

Step 1: Identify the Pipeline Material

Confirm the steel grade, pipe outside diameter, wall thickness and material condition.

Review the applicable welding procedure before selecting heating temperatures.

Step 2: Define the Heating Requirements

Determine the required preheating temperature, heating-zone width and permissible temperature variation.

For PWHT, define the complete heating, holding and cooling cycle.

Step 3: Calculate the Thermal Load

Estimate the heated steel mass and required temperature rise.

Account for heat conduction into adjacent pipe sections and losses to the environment.

Step 4: Select the Generator and Induction Coil

Choose the preliminary MYD model and coil configuration.

Confirm the electrical compatibility of the generator, output circuit and induction coil.

Step 5: Install the Coil and Insulation

Position the induction cable around the required heating region.

Install appropriate insulation and ensure that the cable is protected against mechanical damage.

Flexible induction heating coils positioned around a pipeline weld joint for controlled pipe preheating
Flexible induction heating cables arranged around a steel pipe near the weld joint.

Step 6: Install Temperature Sensors

Attach suitable thermocouples at positions required by the welding or heat-treatment procedure.

Check sensor condition, installation and calibration.

Step 7: Verify Electrical and Cooling Conditions

Inspect the electrical supply, grounding, equipment ventilation, output connections and any required cooling systems.

The equipment should be installed and serviced by qualified personnel.

Step 8: Perform Controlled Heating

Start the induction heating system and monitor the measured temperatures.

Adjust heating within the limits permitted by the approved procedure.

Step 9: Maintain or Control Temperature

For weld preheating, confirm that the required temperature is reached before welding begins.

For PWHT, follow the specified heating and holding conditions.

Step 10: Complete Cooling and Inspection

After the heating operation, follow the required cooling procedure.

Review temperature records and inspect the workpiece according to the applicable acceptance requirements.

Process Workflow Summary

Step Operation Quality Control
1 Material Identification Steel grade and dimensions.
2 Process Definition Required temperature and thermal cycle.
3 Thermal Calculation Estimated heating energy and useful power.
4 Equipment Selection Generator and coil configuration.
5 Coil Installation Correct positioning and insulation.
6 Temperature Measurement Appropriate thermocouple locations.
7 Electrical Inspection Safe electrical and cooling conditions.
8 Controlled Heating Temperature and heating rate.
9 Temperature Management Specified preheat, hold or PWHT requirements.
10 Final Inspection Records and acceptance criteria.

Common Problems and Solutions

Induction pipeline heating performance depends on electromagnetic coupling, coil installation, workpiece characteristics, electrical conditions and heat loss.

Pipeline Induction Heating Troubleshooting Guide

Problem Possible Cause Recommended Solution
Slow Pipe Heating Insufficient useful power, poor coupling or excessive heat loss. Review coil layout, insulation and actual delivered power.
Uneven Pipe Temperature Inconsistent coil placement or local heat sinks. Check heating-zone coverage and temperature distribution.
Temperature Overshoot Control response, sensor position or excessive power. Review process settings and sensor installation.
Insufficient Weld-Zone Temperature Heating band too narrow or excessive conduction losses. Review heating-zone dimensions and insulation.
Generator Overheating Insufficient airflow or excessive equipment load. Inspect cooling conditions and operating limits.
Heating Cable Overheating Incorrect coil configuration, overload or cooling problem. Stop heating and inspect the approved cable system.
Unstable Temperature Readings Thermocouple connection or calibration issue. Verify sensor type, attachment and signal wiring.
Excessive Thermal Gradient Nonuniform heating or inadequate insulation. Review coil geometry and temperature-monitoring locations.
Incorrect Temperature Chart Heating cycle deviates from the required procedure. Review the thermal program and recorded data.
Insufficient Performance with Long Cables Output-system losses or electrical mismatch. Confirm the approved cable length and matching arrangement.

Preventive Maintenance Checklist

Inspection Item Recommended Check Purpose
Cooling Fans Check correct operation and unobstructed airflow. Prevent generator overheating.
Ventilation Openings Inspect for dust and obstruction. Maintain cooling performance.
Induction Cable Inspect insulation and mechanical condition. Maintain safe operation.
Electrical Connections Inspect according to qualified electrical procedures. Reduce electrical faults.
Thermocouples Check condition and calibration. Maintain temperature measurement reliability.
Temperature Recorder Verify channels and recording functions. Maintain thermal-process documentation.
Control System Review alarm history and operating functions. Identify abnormal operating conditions.

Engineering Selection Guide

Correct induction pipeline preheating equipment selection begins with the thermal energy required by the pipe and the time available for heating.

The generator must also be capable of maintaining the specified temperature distribution throughout the required process.

1. Calculate the Heated Pipe Mass

For a cylindrical steel pipe with a selected axial heating length:

m = π × (D − t) × t × L × ρ

Where:

  • m = heated steel mass, kg.
  • D = outside pipe diameter, m.
  • t = pipe wall thickness, m.
  • L = selected heated axial length, m.
  • ρ = steel density, kg/m³.

The equation calculates the geometrical mass of a cylindrical pipe-wall band.

2. Calculate the Required Heating Energy

The approximate sensible heat required is:

Q = m × Cp × ΔT

Where:

  • Q = thermal energy, kJ.
  • m = heated steel mass, kg.
  • Cp = average specific heat capacity, kJ/(kg·K).
  • ΔT = required temperature increase, K.

This provides an initial estimate for a uniformly heated steel volume.

Real pipeline heating also involves temperature gradients, axial conduction, external heat losses and the thermal capacity of adjacent materials.

3. Engineering Example: Heating a 508 mm Steel Pipeline

Consider a hypothetical carbon-steel pipeline preheating application with the following assumptions:

Calculation Parameter Value Unit
Pipe Outside Diameter 508 mm
Wall Thickness 12.7 mm
Selected Heated Axial Length 350 mm
Initial Temperature 25 °C
Target Temperature 180 °C
Temperature Rise 155 K
Assumed Steel Density 7,850 kg/m³
Assumed Average Specific Heat 0.49 kJ/(kg·K)

Step A: Calculate the heated steel mass.

m = π × (0.508 − 0.0127) × 0.0127 × 0.350 × 7850

m ≈ 54.29 kg

Step B: Calculate the sensible heat.

Q = 54.29 × 0.49 × 155

Q ≈ 4,124 kJ

Converting into kilowatt-hours:

Q = 4124 / 3600

Q ≈ 1.145 kWh

This is the approximate sensible heat required by the selected steel volume under the stated assumptions.

It is not the measured electrical consumption of an MYD induction heater.

4. Estimate the Useful Heating Power

If the average useful thermal power absorbed by the selected steel volume is known:

Heating Time = Required Thermal Energy / Average Useful Thermal Power

The table below compares hypothetical useful thermal power levels.

Assumed Useful Thermal Power Calculated Idealized Heating Time Engineering Interpretation
12 kW Approximately 344 seconds Illustrative lower useful-power condition.
20 kW Approximately 206 seconds Illustrative intermediate useful-power condition.
30 kW Approximately 137 seconds Illustrative higher useful-power condition.

Important: These are theoretical heating times based on hypothetical useful power absorbed by the selected pipe volume.

They are not measured performance figures for MYD-40, MYD-50, MYD-60, MYD-80, MYD-100 or MYD-120.

Actual heating time may be longer because of heat conduction into adjacent pipe sections, insulation performance, temperature gradients, environmental heat losses and operating limitations.

5. Electrical Power Calculation

For a balanced three-phase electrical system:

S = √3 × V × I / 1000

Where:

  • S = apparent input power, kVA.
  • V = line-to-line voltage, V.
  • I = line current, A.

For MYD-40, the published input current is 60 A at 380 V:

S = √3 × 380 × 60 / 1000

S ≈ 39.5 kVA

This is lower than the published 40 kW output power rating.

Because the maximum possible real input power cannot exceed the apparent input power, these figures require clarification.

Actual equipment input current, power factor and electrical installation requirements should be established from verified manufacturer specifications.

6. Temperature Control Requirements

Control Parameter Engineering Requirement
Initial Temperature Actual pipe temperature before heating.
Minimum Preheat Temperature Required by the applicable welding procedure.
Maximum Interpass Temperature Must remain within the approved welding limits.
Heating Rate Must satisfy any process-specific limits.
Holding Temperature Required for specified postheating or PWHT operations.
Holding Time Defined by the applicable thermal procedure.
Cooling Rate Controlled where required by the process.
Temperature Uniformity Verified across the specified monitoring locations.
Temperature Recording Required when specified by the quality plan or applicable standard.

For applications requiring full post-weld thermal-cycle control, the appropriate induction PWHT equipment configuration should be reviewed together with the applicable welding or heat-treatment standard.

7. Engineering Selection Checklist

Required Information Purpose
Pipe Material Determines electromagnetic and thermal properties.
Pipe Outside Diameter Determines coil dimensions and circumference.
Pipe Wall Thickness Determines thermal mass and heat distribution.
Heating-Zone Width Determines approximate heated volume.
Initial Temperature Defines starting conditions.
Target Temperature Determines the required temperature rise.
Heating Time Determines useful thermal power requirements.
Holding Time Determines sustained operating requirements.
Cooling Requirements Determines equipment cooling suitability.
Electrical Supply Determines installation compatibility.
Coil Cable Length Influences site layout and electrical matching.
Applicable Welding Standard Determines thermal and inspection requirements.
Ambient Conditions Influences cooling and heat losses.
Temperature Recorder Supports traceability and quality control.

Advantages and Limitations

Advantages of Induction Pipeline Preheating

1. Localized Heat Generation

Induction heating generates heat directly inside conductive pipe materials.

This allows controlled heating of selected pipe sections when an appropriate coil and operating procedure are used.

2. Flexible Heating-Coil Installation

Flexible induction cables can be arranged around suitable pipes of different diameters.

This is useful for large fixed pipelines that cannot easily be moved into conventional heating equipment.

3. Controlled Temperature Monitoring

Thermocouples can measure selected locations around the heated region.

With suitable control equipment, these measurements can support repeatable preheating and heat-treatment operations.

4. Reduced Dependence on Open-Flame Heating

Induction heating does not require a combustion flame as the primary heat source.

However, electrical heating still presents fire, thermal and process hazards that must be assessed.

5. Suitable for Pipeline Field Applications

Flexible heating cables and portable generator arrangements can support selected pipeline construction and maintenance operations.

6. Thermal Process Documentation

When equipped with suitable temperature recording, the system can document heating curves for process verification.

7. Multiple Published Power Configurations

The MYD series provides six published nominal output ratings, allowing preliminary model comparison according to different thermal loads.

Limitations and Engineering Precautions

Limitation Engineering Explanation Recommended Action
Material Compatibility Heating characteristics vary between different metals. Verify workpiece suitability.
Heating Uniformity Temperature distribution depends on coil geometry and heat conduction. Use appropriate heating patterns and sensors.
Electrical Requirements High-power induction equipment requires an adequate electrical supply. Verify actual input current and site capacity.
Ambient Temperature Air-cooling performance depends on environmental conditions. Confirm the approved ambient operating range.
Operating Duty Continuous performance depends on electrical and thermal ratings. Confirm duty-cycle requirements.
PWHT Compliance A heating machine alone cannot guarantee code compliance. Follow the qualified thermal procedure.
Heating Cable Configuration Incorrect coil matching can affect performance. Use an approved coil arrangement.
Internal Pipe Contents Fluids may increase thermal load and create hazards. Perform a process-specific assessment.
High-Strength Steel Excessive heating may affect mechanical properties. Apply material-specific temperature restrictions.

Induction Pipeline Heating vs. Resistance Heating vs. Flame Heating

Comparison Induction Heating Resistance Heating Flame Heating
Heating Mechanism Electromagnetic induction. Heat transfer from resistance elements. Combustion heat transfer.
Heat Generated Inside Steel Yes, through induced electrical currents. Generally transferred from external elements. Transferred from the flame.
Flexible Pipe Heating Possible using suitable induction cables. Possible using suitable heater pads. Depends on burner arrangement.
Temperature Control Can use thermocouples and programmable control. Can use thermocouples and programmable control. Depends on the burner and measurement system.
Thermal Insulation May improve heat retention. Often used with heating elements. Depends on the application and flame access.
Electrical Supply Required. Required. Not necessarily required for the primary heat source.
Primary Limitation Electrical matching and electromagnetic coupling. Heating-element arrangement and thermal transfer. Combustion hazards and heat distribution.
Energy Consumption Application-dependent. Application-dependent. Application-dependent.

Energy savings should be evaluated under equivalent operating conditions. No universal percentage can be guaranteed for every pipeline heating project.

Industrial pipeline induction heating equipment used in a steel pipe fabrication workshop
Industrial induction heating equipment used with a cylindrical steel workpiece in a fabrication workshop.

Why Choose HLQ?

HLQ Induction Equipment Co., Ltd. supplies industrial induction heating equipment for metal processing, welding preparation, thermal treatment and related manufacturing applications.

Six Published MYD Power Configurations

The MYD series includes six published output ratings from 40 kW to 120 kW, providing a range of configurations for preliminary industrial heating selection.

Flexible Induction Heating Arrangements

Flexible induction heating cables can be used with suitable steel pipes and other cylindrical metal components.

PLC-Based Operation

The published MYD equipment includes digital operating controls for setting and monitoring selected heating parameters.

Temperature Monitoring

Multi-point temperature monitoring can support controlled preheating and selected heat-treatment applications when correctly configured.

Industrial Pipeline Application Coverage

HLQ induction heating products cover pipeline welding preheating, selected PWHT operations, steel pipe heating and related industrial applications.

Additional equipment configurations can also be considered for induction heating for pressure vessels and fabricated industrial components.

Engineering-Based Equipment Selection

The most suitable induction heating system should be selected according to workpiece dimensions, material grade, required temperature, thermal cycle, heating-zone width and available electrical power.

Final equipment performance requirements should be confirmed using verified technical specifications and representative application testing.

10 Core FAQs

1. What is an induction pipeline preheating machine?

An induction pipeline preheating machine uses electromagnetic induction to generate controlled heat inside conductive pipe materials. It is commonly used for welding preheating, localized pipe heating, interpass temperature management and selected post-weld thermal treatment applications.

2. What is the power range of the HLQ MYD series?

The published MYD series includes six nominal output power ratings: 40 kW, 50 kW, 60 kW, 80 kW, 100 kW and 120 kW. The correct model depends on the required heating energy, operating cycle, workpiece geometry and available electrical supply.

3. What is the operating frequency of the MYD pipeline heater?

The target product page lists an output frequency range of 2–36 kHz. Some related MYD product information lists 2–30 kHz. The exact frequency range should be confirmed for the selected model and production configuration.

4. Can induction heating be used to preheat steel pipelines before welding?

Yes. Induction heating can provide controlled localized heat around suitable conductive steel pipes. The required preheat temperature must be established from the qualified welding procedure and the properties of the actual steel grade.

5. Can the MYD series be used for post-weld heat treatment?

Potentially. The MYD series can be configured for suitable thermal treatment operations, but compliance with a PWHT specification depends on the complete equipment arrangement, temperature uniformity, heating and cooling rates, holding period, monitoring and applicable code requirements.

6. Does the MYD induction pipeline heater require cooling water?

The target product page describes an air-cooled generator. However, the cooling requirements of specific induction coils, output connections and higher-power configurations must be confirmed separately. Air cooling of the generator does not automatically prove that every connected component is water-free.

7. How do I calculate the induction power required for pipeline preheating?

Start by calculating the approximate mass of the steel within the selected heated pipe section. Estimate the sensible heat using Q = m × Cp × ΔT. Then account for heat spreading, environmental losses, insulation, electromagnetic coupling and required heating time. Final equipment selection should be verified through a representative application test.

8. Can the MYD system heat stainless steel pipelines?

Induction heating may be suitable for stainless-steel pipelines, but performance depends on the stainless-steel grade, magnetic properties, electrical resistivity, dimensions, coil configuration and thermal process. Application-specific evaluation is recommended.

9. Can the MYD pipeline induction heater operate continuously for 24 hours?

The currently published information does not provide sufficient model-specific evidence to guarantee continuous full-power operation for every MYD configuration. Continuous-duty capability must be confirmed using the approved equipment datasheet, including electrical loading, ambient temperature and cooling conditions.

10. What information is needed to select the correct pipeline preheating machine?

The main requirements include the pipe material, outside diameter, wall thickness, heating-zone width, initial temperature, target temperature, required heating time, welding procedure, electrical supply, operating environment, induction coil configuration and temperature-monitoring requirements.

HLQ-MYD-Induction-Preheating-Pipeline-Machine-Brochure

=
