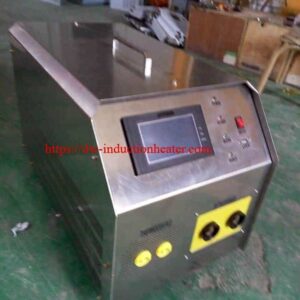

Air Cooling Induction Heating System

Description

MYD series of Air Cooling Induction Heating System are used for weld, bending, piping, coating, fitting, stress relief, pre-weld heat and post-weld heat treatment.

Features

  • Air cooling: working well at -10℃-40℃
  • Induction heating power: To heat the work job with insulation blanket around it. High heating speed and heating efficiency with little energy lost.
  • PLC touching screen: Intuitive to see and easy to operate.
  • Soft induction coil: Easy to wind on different work piece.
  • The Removable opening Induction coil: easy to operate and move.
  • Temperature recorder: Record the whole heating curve.
  • Temperature Controller: Heating according to the heating requirement details with the ±3℃ tolerance.

Applications:

  • Pre-heating: For coating, bending, fitting, unfitting, welding.
  • Post-welding heat treatment: Tank, boiler or other metal jobs
  • Heating: Metal sheet heating, Mold heating, shipboard, zinc bath, large& irregular metal parts
  • Pipeline heating: Pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material

Features:

  • Digital Display and Adjust for parameters, like output power and temperature setting up.
  • High Efficiency: Electric Power is converted directly to heat power with low power loss.
  • Failure Alert: Once operation occurs, a sounding alarm is activated and error box shown on PLC touch screen.
  • Integrated Module Design: System is more stable and low cost for maintenance.
  • Digital Recorder with optional printer is able to record the temperature data and create chart trends of the heating progress.
  • Accurate Measurement for temperature: Multi-points to detecting temperature; 6 channels for temperature control with ± 3° C tolerance; Evenly heating.
  • Air Cool System allows system work at ultra circumstance: -30 º C~ 50º C
  • IGBT Module: We adapt advanced IGBT Technology.
  • Smart Control: All operation is micro computed and controlled through PLC touch screen.
  • Easy to Install: Quick-release coupling.
  • Easy To Move: Through Lifting Eye or Wheel System.
  • Safe: Automatic Protect for Power Failure.
  • Universal Connector: Water-proof; Insulation.
Model MYD-40 MYD-50 MYD-60 MYD-80 MYD-100 MYD-120
Input Power 3*380VAC (Default), 3*220VAC (Optional), 3*440VAC (Optional)
Output Frequency 2KHZ ~ 36KHz
Output Power 40KW 50KW 60KW 80KW 100KW 120KW
Input Current 60A 75A 90A 120A 150A 180A
Weight 130KG 136 KG 140 KG 145 KG 168 KG 180 KG
Size 800*560*1350mm
Packing Size 900*660*1560mm

MYD series induction heater to compare the resistant heat:

  • Uniform
  • High Speed
  • Energy Saving: 30-80%

accessories





=
